Specifications
aluminum sheet roll film*golden,silver,colorful
*customizable spec aluminum sheet roll film
*heat-sealedaluminum sheet roll
• Metalized aluminum sheet roll film

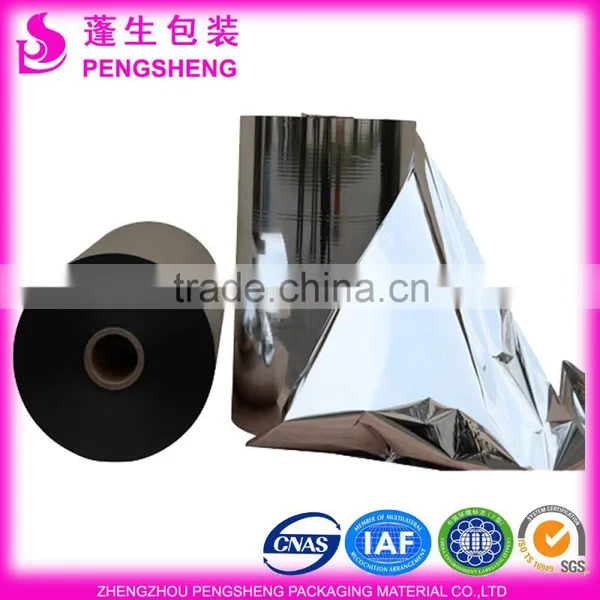

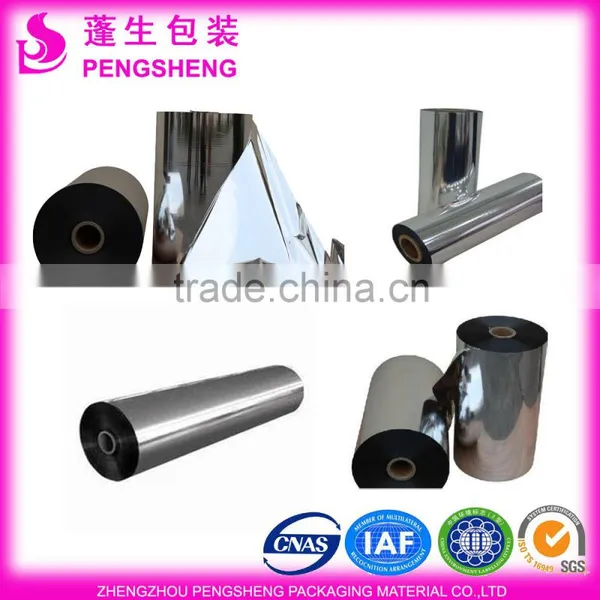

• Product Pictures- aluminum sheet roll film
• Specification- aluminum sheet roll film
| Item | aluminum sheet roll film | |||||
|
Thickness (mic) |
Base | 12 | 12 | 15 | 15 | 18 |
| EVA | 8 | 10 | 8 | 10 | 10 | |
| Total | 20 | 22 | 23 | 25 | 28 | |
| Color | silver | golden | colorful | |||
| Width(mm) | 200-1600 (customizable) | |||||
| Length(m) | 200-7000 (more or less 10% allowed) | |||||
| Corona Side | A | B | AB(Both sides) | |||
| Paper Core | 25.4mm(1'')/76mm(3'')/155mm(6'') | |||||
• Weight vs Square Measure
| Model No | 1205 | 1207 | 1208 | 1209 | 1210 | 1211 | 1212 | 1213 | Unit |
| WT/SQ | |||||||||
| Gloss | 64.5 | 57.5 | 54.6 | 51.9 | 49.5 | 47.3 | 45.3 | 44.6 | m2/kg |
| Matte | 0.0155 | 0.0173 | 0.0183 | 0.0192 | 0.0202 | 0.0211 | 0.0221 | 0.0224 | Kg/m2 |
| Model No | 1505 | 150 | 1508 | 1509 | 1510 | 1511 | 1512 | 1513 | Unit |
| WT/SQ | |||||||||
| Gloss | 54.9 | 52.5 | 47.6 | 45.5 | 43.7 | 41.9 | 40.4 | 38.9 | m2/kg |
| Matte | 0.0182 | 0.019 | 0.021 | 0.022 | 0.0229 | 0.0239 | 0.0248 | 0.0257 | Kg/m2 |
Features
-Color is just slight changed after laminating.
-Easy to operate on the laminator, saving the time.
-No bubble, wrinkle or desquamate.
-Glossier than the traditional laminating, keep for a long time and no color changing.
-None solvent pollution, keep the factory much safer an environment-friendly
-Suitable for ordinary hot laminating machine.
Application
Coating on books and magazine; catalogs; pictures; promotional materials; non-drying adhesive; paper bag; clothes lag.
Blueprint document; outdoor advertisement; spray painting; post; digital print.
Wedding photograph; photo album.
Outside coating for wrapping box for food; medicine; cosmetic; gift; liquor, etc
Process Parameter
1. Equipment for laminating film: dry and wet film lamination machines
2. Compound Temperature:
normal: 85-100℃ special: 100-110℃
3. Compound Pressure: 8-18MPa
4. Compound Speed: 8-50m/min
Packaging - aluminum sheet roll film
Export Worthy for long distance shipment
*One Roll per carton
*Tens of rolls in a pallet
*10 to 12 pallets loaded into 1*20ft container (appro. 13MTs)
*Or 20 to 22 pallets loaded into a 40ft container (appro. 25MTs)
Shipping
| Model of Transport | Advantage | Weakness | Suggestion |
|
Express (Door to Door) |
Fast(3-6days) Door-to-Door Wide Area Coverage |
Restricted Volume & Weight | Small cargo |
| Sea transport (Port to Port) |
Cheapest Volume unlimited |
Long time(15-30days), influenced by climate and port |
bulk cargo loose time |
| Air transport (Airport to Airport) |
Fast(4-5days) Simple packaging |
most expensive restricted volume |
Valuable cargo Urgent demand |
Factory Photos- aluminum sheet roll film
1.Q:Why laminating?
A: Traditional lamination has always been associated with mainly to preserve providing a crystal clear layer of protection and protect the graphics,document,etc from UV fading,moisture and abrasion. Lamination also protects the image from normal wear caused by dirt,pollutants, chemicals and nearly all solvents.
Lamination also makes the graphics,documents,photographs ,etc more colorfast,prolongs outdoor life, brightens colors and adds contrast, especially on electrostatic output.
In addition lamination allows for the ability to print a reverse reading image on paper , then transfer that image to film using a thermal laminator. In all laminating provides choices of use and finishes, regardless of output method.
2.Q:Are you a manufacturer or trading company?
A: Manufacturer,welcome to our factory in Zhengzhou,Henan province of China.
3.Q:How about the production process of the aluminum sheet roll film ?
A:Please kindly check the photo as below:
4.Q:How about the lead time and payment terms?
A:Please kindly find the answers as below:
Lead time
MP stage: 30 working days after deposit
Samples: 7days
Payment Term
T/T, L/C,Western Union
Shipment port
Qingdao,Shanghai,Shenzhen,etc.
MOQ: 2mt
5.Q: How could I get samples?
A: You can get our free samples for test,and with collected courier cost in 3 ways as following:
1.RPI (remote pick-up) service upon UPS,DHL,FEDEX,TNT,etc
2.Note your collection account No.of UPS,DHL,FEDEX,TNT,etc
3.Pre-pay and deliver via our cooperative express company to get a low discount.
6.Q: How about the capacity?
A:2 coating lines
20 days delivery of a 40 feet container
350MTs (kilograms) per month
Thickness from 15micron (10BOPP+5EVA) to 32micron (18BOPP+14EVA)
Roll width from 180mm to 1680mm
Roll length from 2000m to 6000m
Reel inner diameter at 25.4mm (1 inch) or 76mm (3 inch)
Reel Outer Diameter: 240mm to 380mm (upon reel length and width)
Laminating films are available in gloss,matt,anti-static, UV(Ultra Violet) protection, Hologram, cold(self seal-using pressure sensitive adhesive),sticky back,etc with different colors and textured and colored patterns. Some films(Cold,Mounting) have adhesive(PSA) on the outside which allows the graphic to be face or back mounted at the point of use offering enhanced UV durability.
Here are some hot sale thermal lamination films as following:
a. Bopp/Pet thermal lamination film b. Silver Golden metalized thermal laminating film
ft touch thermal lamination film d.(transparent)holographic thermal lamination film
e. Pet thermal lamination pouch film
