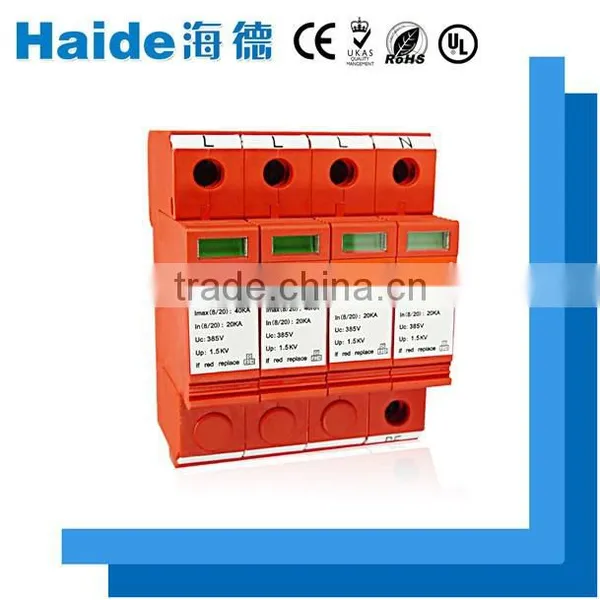

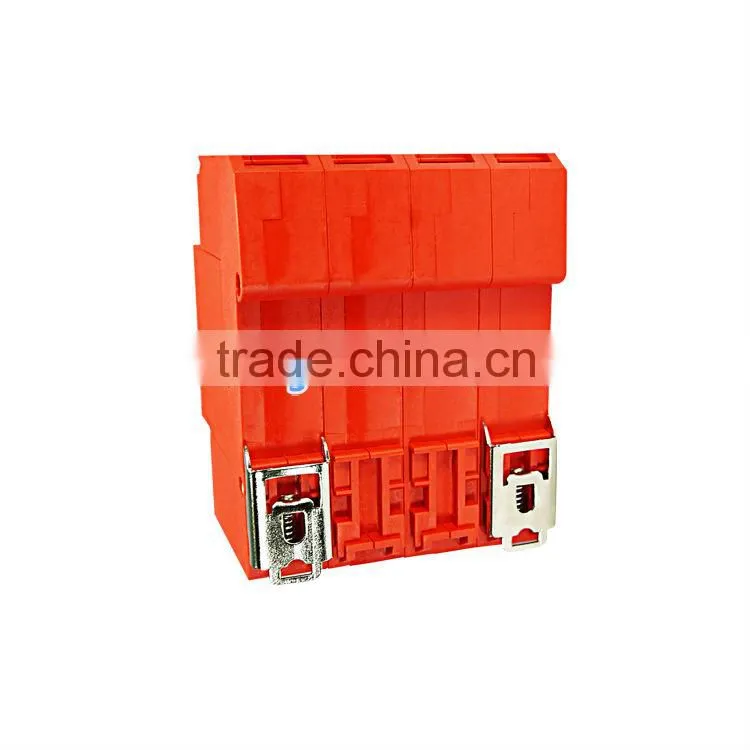

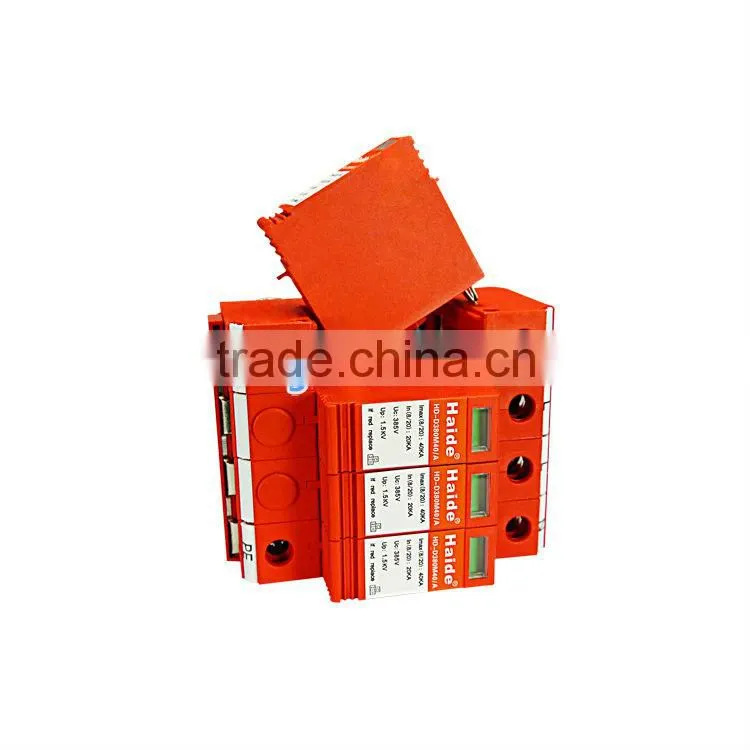

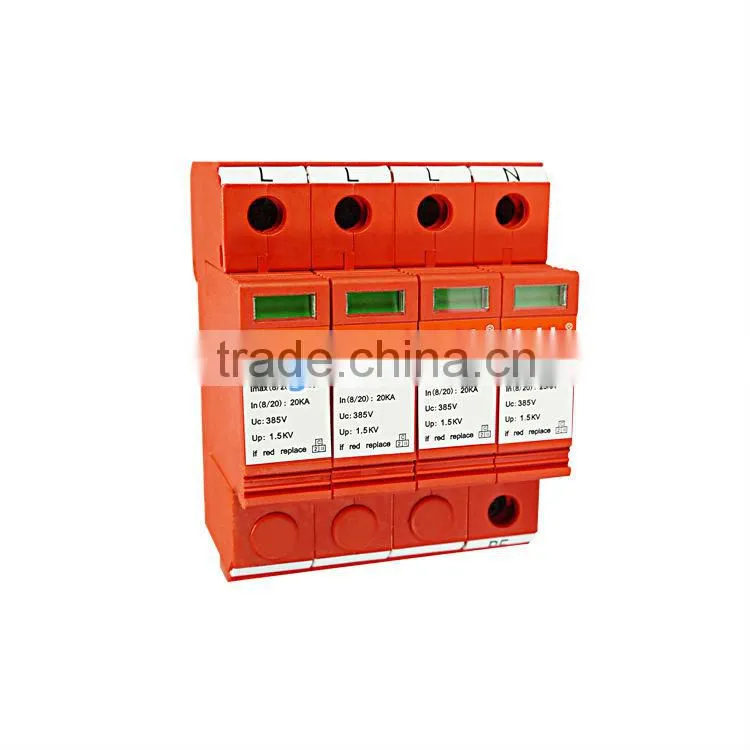

1.5KV 40KA 3-phase Surge Arrestors Price Trade Assurance
US$ 10 - 15
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haide
Model Number:
HD-D380M40A
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V/24V/220V 10KA Surge Protector Importers Price Trade AssuranceUS$ 25 - 35MOQ: 10 Sets -
Up 400V 5 KA 1 Socket Surge Protector Price Trade AssuranceUS$ 8 - 16MOQ: 10 Sets
-
Multi Function 220V ul Power Strip Surge Protector Price Trade AssuranceUS$ 10 - 16MOQ: 10 Sets
-
380V 100KA Thunder Protection for Power Supply With Price Trade AssuranceUS$ 240 - 245MOQ: 10 Sets
-
220V 40KA/20KA dc Power Lightning Arrester With Price Trade AssurnceUS$ 5 - 10MOQ: 10 Sets
Place of Origin
Guangdong, China
Brand Name
Haide
Model Number
HD-D380M40A
1.5KV 40KA 3-phase surge arrestors price trade assurance
3-phase surge arrestors price trade assurance
Electric surge protector of low-voltage distribution system is designed according to IEC standard. It has invalidation detection indication,standard modularization installation,changeable lightning protection module and powerful discharge capacity of lightning current. It's applicable to the protection of buildings' general supply system against lightning. With 35mm standard guide-way, this lightning arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later.
|
Model |
HD-D380M40A |
| Nominal working voltage Un | 380V/220V |
| Maximum continuous working voltage Uc | 385V/275V |
| Maximum discharging current Imax(8/20us) | 40KA |
| Nominal discharge current In(8/20us) | 20KA |
| Voltage protection level Up | 1.5KV |
| Reponse time Ta | ≤25ns |
| Operating temperature range Tup | -40°c to +80°c |
| section of minimum installed conductor | 10mm² multi-folded wire |
| Protection grade | IP20 |
| External dimension | 36/72X66X90mm, 54/108x62x90mm |
| Sheathing material | flame retardant thermoplastic material |
| Mode of connection | parallel connection |
| Protection mode | 4+0/3+1/1+1/2+0 |
| Order No | 810261(810251) |
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:https://img13.fr-trading.com/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
3-phase surge arrestors for trade assurance
