Specifications
electric surge protection spd1.GB 18802.1-11 & IEC 61643-1-05
2.CE & ISO9001
3.Power supply lightning arrester

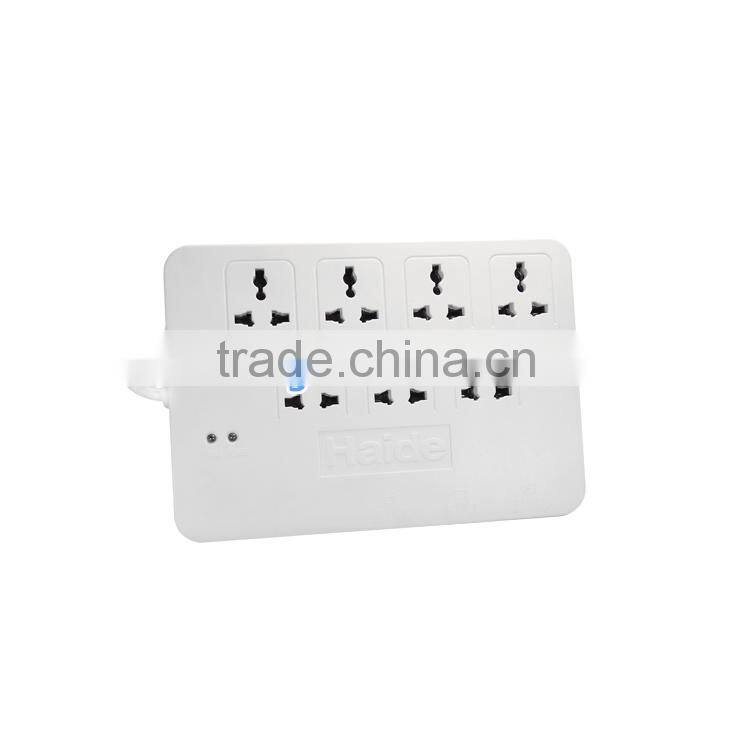

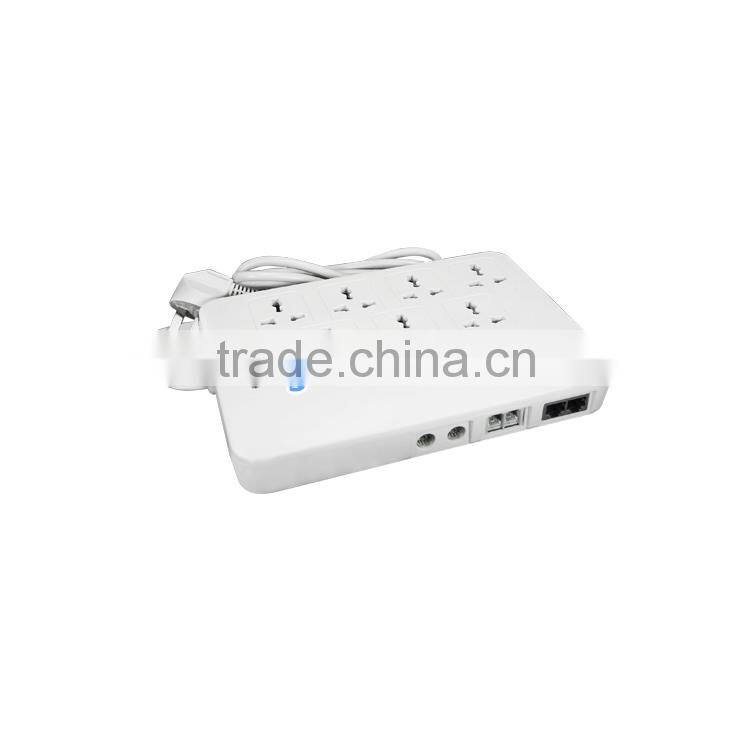

B HD-DCZ/TTN electric surge protection spd
electric surge protection spd

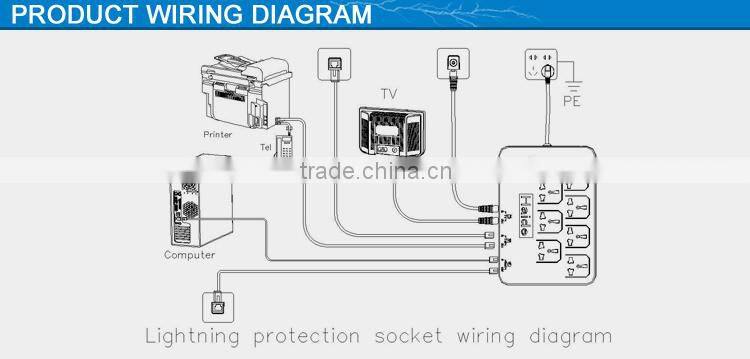

This series of product is applicable to the single-phase power line lightning and surge protection for the fine,universal sockets suitable for a variety of shape design of the power plug, is especially suitable for household electrical equipment simple lightning protection,automatic protection device,fault automatically off the grid,thereby protecting the electronic equipment is working properly,can match network , telephone or television function,and with the work status indication lamp.
| Model | HD-DCZ/TTN | |||
| Power supply | Network | Telephone | Television | |
| Nominal working voltage Un | 220V | 5V | 180V | |
| Maximum continuous working voltage Uc | 275V | 6.8V | 200V | |
| Nominal discharge current In(8/20us) | 5KA | 2.5KA | 2.5KA | 2.5KV |
| Maximum discharging current Imax(8/20us) | 10KA | 5KA | 5KA | 5KV |
| 1KV/us Voltage protection level Up | (X-X)≤33V | (X-X)≤220V | 400V | |
(X-G)≤33V |
(X-G)≤220V |
|||
| Voltage protection level Up | 700V | |||
| Insertion resistance | ≤1Ω | ≤4Ω | ||
| Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | |
| Band width | 2MHz | 860MHz | ||
| Protection grade | IP20 | |||
| External dimension | 160*230*42mm | |||
| Sheathing material | Flame retardant thermoplastic material | |||

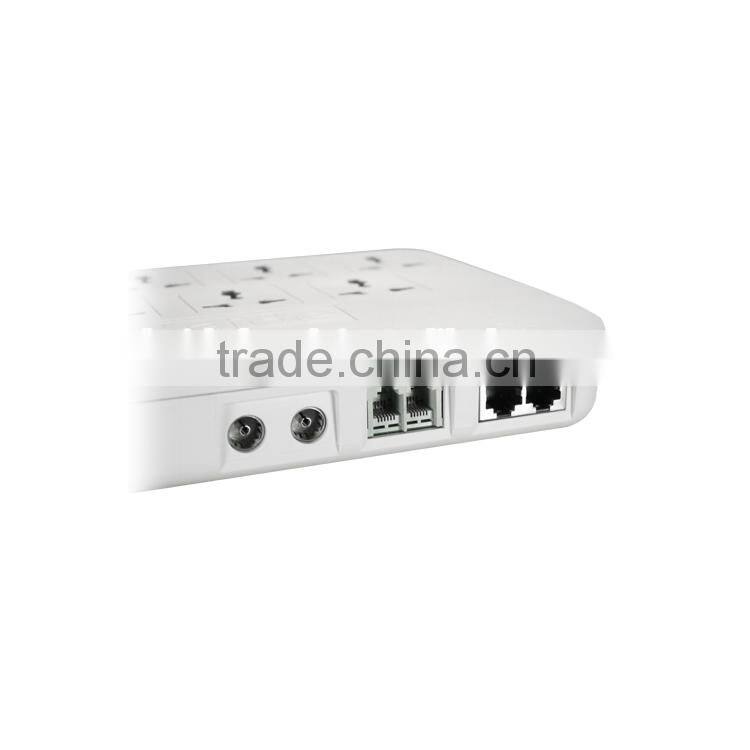

| Mode of connection | Universal jack | RJ45 | RJ11 | CATV |
1.ISO9001&CE certificate;
2.Any inquiries will be replied within 24 hours;
3.Professional manufacture:
Welcome to our website:http://gzhaidefanglei.cn.china.cn/
4.High quality, fashion designs, reasonable &competitive price, fast lead time;
5.OEM available;
6.After-Sale Service:
·Provide technical advice and maintenance knowledge and installation guide;
·Customers response time for one working time;
·All the products provide five year commitment to service;
·All the products are accompanied by China Pacific property insurance co;ltd.
7.Fast delivery:
Sample order in stock, and 7-15 working days for full production;
8.Terms of payment:
You can pay for the order via: T/T, Western Union, PayPal &Money Gram;
9.Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder;
10.Quality warranty:
5 years warranty
electric surge protection spd
