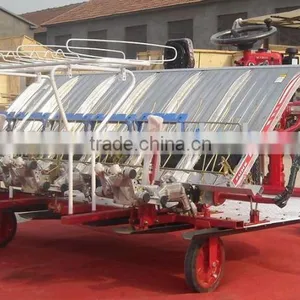

Help CenterPaddy Rice Transplanter
Related Products
Specifications
Easy to operate 6& 8 rowsTrouble free operation
Adjustable hill spacing (planting distance)
Low running & maintenance cost
Model |
2ZT-8238 |
Rice Transplanter |
8 Rows |
Appearance Size (length *width*height)(mm) : |
2410×2132×1300 |
Rated Speed(r/min) : |
2600 |
Walking Part Type |
Single Wheel Drive and Ship Profile (Paddy iron is controlled by hydraulic , Tire land )
|
Waterfowl speed(m/s) |
0.35-0.58 |
0.35-0.58 |
7.8-10.7 |
Waterfowl Part Work of lines |
8 |
Line spacing (mm) |
238 |
Seedling spacing |
120/140 |
The seedling number per points: |
Arbitrary adjustment |
Adapt to the type of rice |
Carpet shape of the seedlings |
Adapt to the width of seedlings (mm) |
280 |
Adapt to the height of seedlings(mm) |
100-200 |
Transplanting depth(mm) |
10-35(Lifter stepless adjustment) |
Efficiency(Mu / hour) |
2-4 |
|
Engine specifications
|
Single-cylinder diesel engine CF178F/FE Feature: |
Type |
Vertical, single cylinder,4-stroke, air-cooled |
Combustion system |
Direct injection |
Bore × stroke [mm(in) |
78×62(3.07×2.44) |
Displacement [L(cc)] |
0.296(296) |
Compression ratio |
20:01 |
Rated power [KW/rpm] |
3.7/3000,4.0/3600 |
Rated power [hp/rpm] |
5.0/3000,5.5/3600 |
Rated speed (rpm) |
F: recoil starter, E: electric starter |
Fuel tank capacity [L(US.gal)] |
3000rpm:276(378) |
3600rpm:285(391) | |
Fuel |
0#(summer), -10#(winter) diesel oil |
Lube |
SAE10W30(above CC grade) |
Overall dimension [mm(in)](L×W×H) |
495×485×530 |
Net weight [kg(lbs)] |
Recoil starter type: 36(79.20) |
Electric starter type: 42(92.40) | |
Rotation direction (view from the wheel) |
Clockwise |
