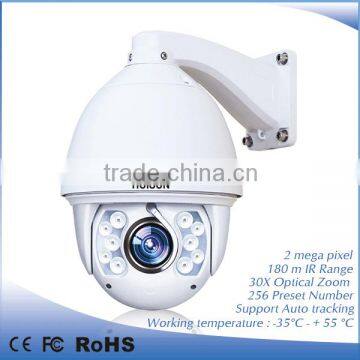

HUISUN High Speed Dome Camera P2P PTZ 2mp IP Camera

Name: HUISUN High Speed Dome Camera P2P PTZ 2mp IP Camera
Brand: HUISUN
SKU: 130195775
Availability: InStock

Shenzhen HUISUN Technology Co., Ltd.

US$ 1 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HUISUN

Model Number:

RMC228FIT-G-S30IA-W1

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB shenzhen & EXW

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HUISUN

Model Number RMC228FIT-G-S30IA-W1

Type Digital Camera

Style Dome Camera

Sensor Other, CCD, 1/4 CCD Sony

Technology Pan / Tilt / Zoom

Special Features Waterproof / Weatherproof

Specifications

1. 1/4" ccd sony/1080P
2. 30X Optical zoom
3. IR 180 Meters with highly power arrage LEDs
4. Optical extra Wiper design

Main Feature:

1. First Patent of Out Cool Air Circulation to Sink the Heat Technology(Patent No.ZL201220269676.7)

2. First Patent of Video Analysis Light-adjustment Technology .(Patent No.201110089768.7)

3. The Highly power array LEDs with IR range up to 180 meters

4. Unique composite lens design, to enhance the effect of night vision.

5. Patent external wiper design, to make sure the HD image is clearer all day.(Optional configuration).

6. Built in power with wall mounted bracket design, making it more convenient for maintenance on site.

7. Auto tracking function for unman surveillance

Technical parameters
Model	RMC228FIT-G-S30IA-W1
Image Sensor	1/4 CCD Sony Sensor
Definition	1080P
Focus length	Optical 30X Zoom
communication protocol	PAL/NTSC
Day/night mode	Automatic/multicolour/monochroma (ICR)
Focus mode	Automatic/manual
S/N	> 50dB
BLC	0 ~ 20
White banlance	Automatic/manual
Electronic shutter	Off / On (Max 42dB)
AGC	Auto / Shutter PRI / Iris PRI / Manual
Min illumination	Color: 0.08Lux(F1.6.30IRE) Black/White: 0.02Lux (F1.6.30IRE)
OSD Manu	English/ Chinese
Infrared lamp
IR distance		180 meters
IR lamp		The OSRAM/High power Arrany LEDs with IR
IR power		27w
IR Lens		Combination lens
Speed dome camera
Pan speed		Pan speed 0.01°/s~360°/s
Tilt speed		Tilt speed 0.01°/s~120°/s
Rotation		Pan :0~90° continuous rotation tilt:-10~90° auto flip
Preset		256 preset (chinese tilt)
Auto scan		8 groups, settable boundaries and scan speed
Auto cruise		8 groups each with 32 presets with settable time interval
Pattern tour		4 groups each with 500 instructions
Video analysis		support
Auto track		yes
OSD Manu		English/ Chinese
Timing Action		RTC clock design for timing events during the whole week
Wiper		yes
Power box		optional
Heat dispersion		Out Cool Air Circulation to Sink the Heat Technology
Supply voltage		DC12V+10%
Levels of protection		IP66/Level2 lightness protection,4000w prvent thunderbolt surges design
Working temperature		-35℃-+55℃
Working humidity		<90% No condensation
Consumption		Max 38W
Weight		5.8kg
Accessory		Wall -mount bracket DC 12 Power
