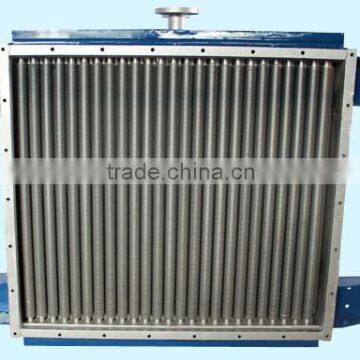

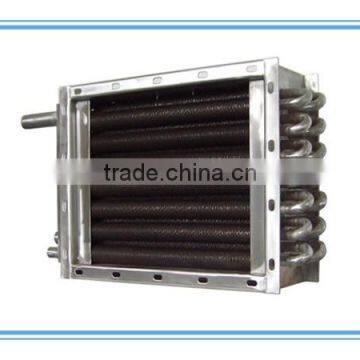

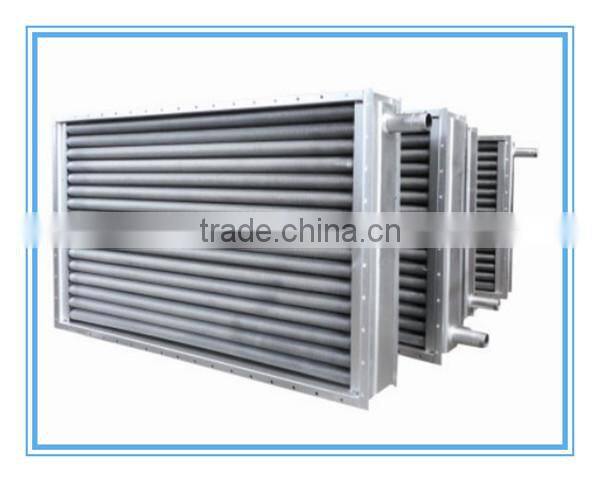

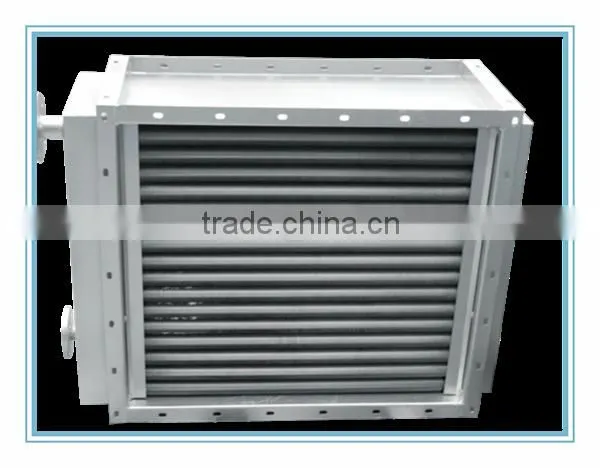

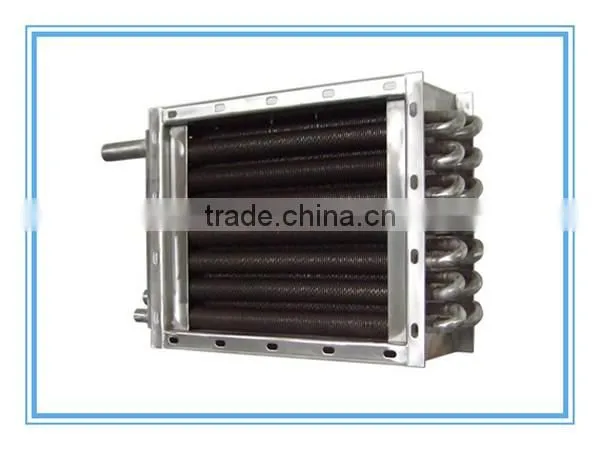

Heating Exchanger Fin Tube Coil
US$ 10 - 10,000
/ Unit
1 Unit(Min. Order)
- GUANGZHOU
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | GELE | |
| Structure | Tube Heat Exchanger |
Product Description

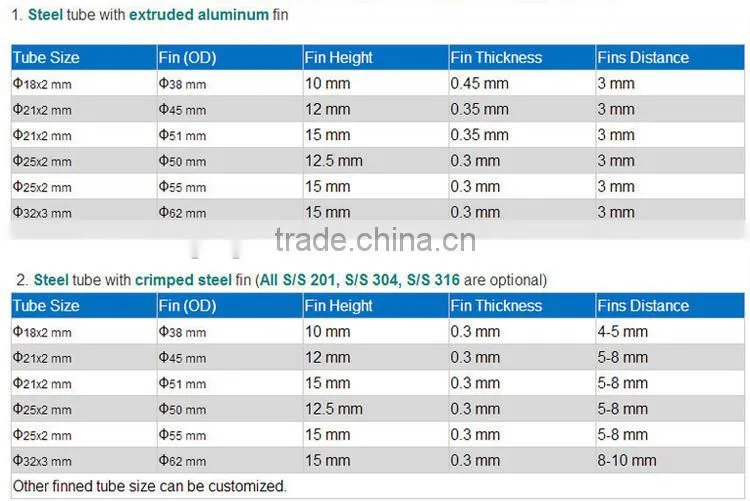

Specifications
High Quality Steam Heat Exchanger
1.good heat conduction
2.long service life
3.high efficiency
Air heat exchanger for rotograuve printing machine
Work pressure: 2.0MPa
Work temperature: 300
Making standard: GB/T14296-93
The specification is according to the customers' requirements
| surface tube number | effective height | overall height | 2 rows | 4 rows | 6 rows | 8 rows | Dia of connecting tube | effective tube length |
| 4 | 152 | 228 | 160 | 180 | 260 | 330 | 48X3.5 | 300-2500 |
| 6 | 228 | 304 | 160 | 180 | 260 | 330 | 48X3.5 | 300-2500 |
| 8 | 304 | 380 | 160 | 180 | 260 | 330 | 48X3.5 | 300-2500 |
| 10 | 380 | 456 | 160 | 180 | 260 | 330 | 48X3.5 | 300-2500 |
| 12 | 456 | 532 | 160 | 180 | 260 | 330 | 48X3.5 | 300-2500 |
| 14 | 532 | 608 | 160 | 180 | 260 | 330 | 60X4 | 300-2500 |
| 16 | 608 | 684 | 160 | 180 | 260 | 330 | 60X4 | 300-2500 |
| 18 | 684 | 760 | 160 | 180 | 260 | 330 | 60X4 | 300-2500 |
| 20 | 760 | 836 | 180 | 200 | 260 | 350 | 75X4 | 300-2500 |
| 22 | 836 | 912 | 180 | 200 | 260 | 350 | 75X4 | 300-2500 |
| 24 | 912 | 988 | 180 | 200 | 260 | 350 | 75X4 | 300-2500 |
| 26 | 988 | 1064 | 180 | 200 | 260 | 350 | 75X4 | 300-2500 |
| 28 | 1064 | 1140 | 180 | 200 | 280 | 350 | 75X4 | 300-2500 |
| 30 | 1140 | 1216 | 210 | 200 | 280 | 350 | 90X4.5 | 300-2500 |
| 32 | 1216 | 1292 | 210 | 220 | 280 | 350 | 90X4.5 | 300-2500 |
| 34 | 1292 | 1368 | 210 | 220 | 280 | 350 | 90X4.5 | 300-2500 |
| 36 | 1368 | 1444 | 210 | 220 | 280 | 350 | 90X4.5 | 300-2500 |
| 38 | 1444 | 1520 | 246 | 260 | 280 | 350 | 110X4.5 | 300-2500 |
| 40 | 1520 | 1596 | 246 | 260 | 280 | 350 | 110X4.5 | 300-2500 |
| 42 | 1596 | 1672 | 246 | 260 | 280 | 350 | 110X4.5 | 300-2500 |
| 44 | 1672 | 1784 | 246 | 260 | 280 | 350 | 110X4.5 | 300-2500 |
| 46 | 1784 | 1824 | 246 | 260 | 280 | 350 | 110X4.5 | 300-2500 |

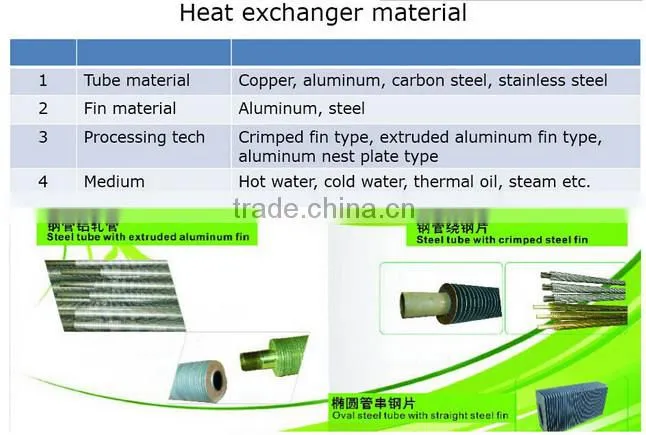

Making Process

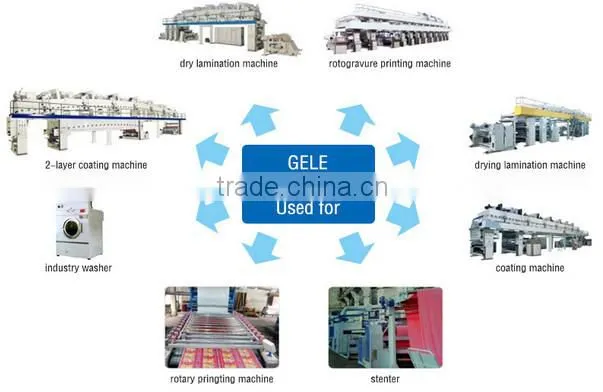

Application
Fair

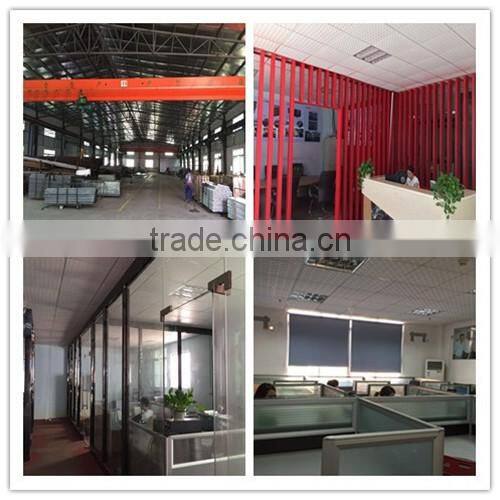

Factory
Contact Us
