Fin Tube steel radiator, Heating Radiator, Cast Iron Radiator is made by Gele Heat Energy Equipment Co., Ltd from China
Other kinds of steel radiator are also available for customers:

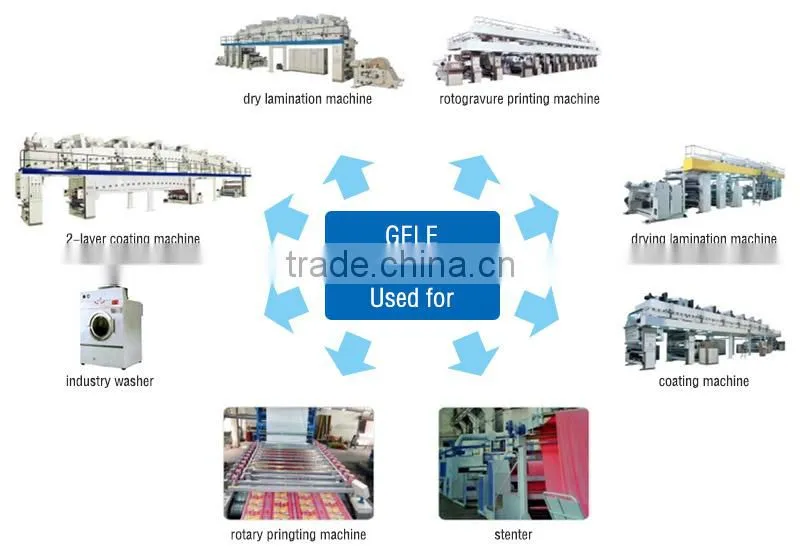

Gele steel radiator ever used for following productions
Kinds of steel radiator material:
1. Steel tube with extruded aluminum fin
Tube Size |
Fin (OD) |
Fin Height |
Fin Thickness |
Fins Distance |
Φ18x2 mm |
Φ38 mm |
10 mm |
0.45 mm |
3 mm |
Φ21x2 mm |
Φ45 mm |
12 mm |
0.35 mm |
3 mm |
Φ21x2 mm |
Φ51 mm |
15 mm |
0.35 mm |
3 mm |
Φ25x2 mm |
Φ50 mm |
12.5 mm |
0.3 mm |
3 mm |
Φ25x2 mm |
Φ55 mm |
15 mm |
0.3 mm |
3 mm |
Φ32x3 mm |
Φ62 mm |
15 mm |
0.3 mm |
3 mm |
Other finned tube size can be customized. | ||||
2. Steel tube with crimped steel fin (All S/S 201, S/S 304, S/S 316 are optional)
Tube Size |
Fin (OD) |
Fin Height |
Fin Thickness |
Fins Distance |
Φ18x2 mm |
Φ38 mm |
10 mm |
0.3 mm |
4-5 mm |
Φ21x2 mm |
Φ45 mm |
12 mm |
0.3 mm |
5-8 mm |
Φ21x2 mm |
Φ51 mm |
15 mm |
0.3 mm |
5-8 mm |
Φ25x2 mm |
Φ50 mm |
12.5 mm |
0.3 mm |
5-8 mm |
Φ25x2 mm |
Φ55 mm |
15 mm |
0.3 mm |
5-8 mm |
Φ32x3 mm |
Φ62 mm |
15 mm |
0.3 mm |
8-10 mm |
Other finned tube size can be customized. | ||||
3. Oval steel tube with straight steel fin
Specification |
Steel Fin |
Fin Height |
Fin Thickness |
Fins Distance |
Φ36x14x2 mm |
55x26 mm |
9.6 x6 mm |
0.3 mm |
3 mm |

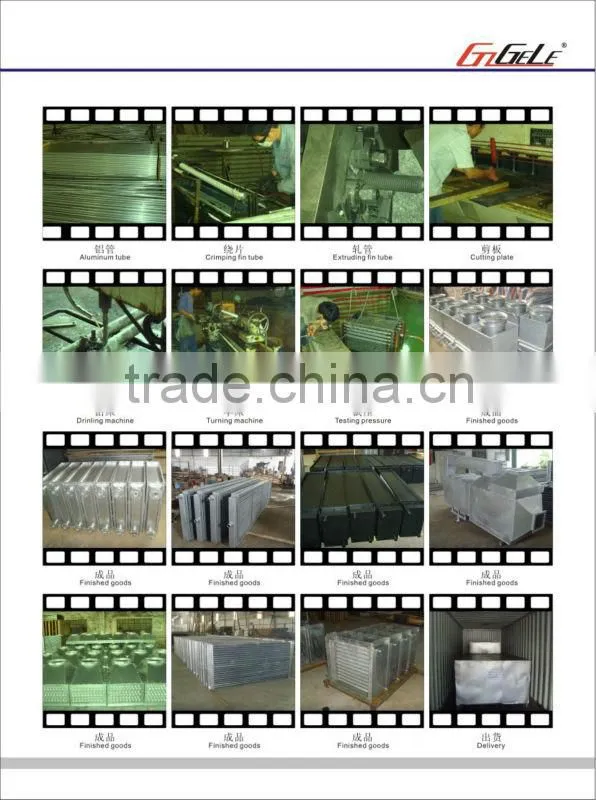

Steel radiator manufacturing process in our factory
About Guangzhou Gele Heat Energy Equipment Co., Ltd in China
Since in 2004, Gele has become the most trusted supplier of heat exchanging equipment in China. After ten years development, Gele has cooperated with people from more than 100 countries and regions, especially in steel radiator, heating radiator, cast iron radiator.

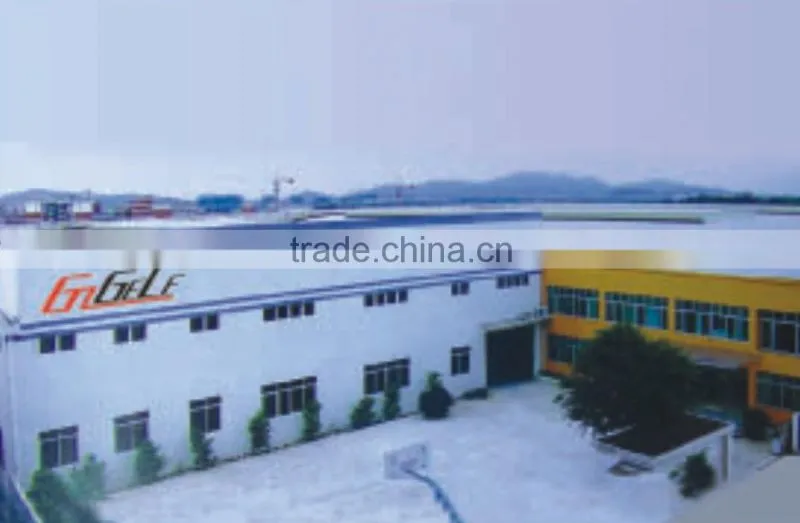

Gele Factory
You are welcome to visit our factory located in Baiyun district, where is very close to the Baiyun International Airport.
We would like to show samples and manufacturing equipments of all kinds of heat exchangers and fin tubes to you.
Gele company can also be seen in many exhibitions in different countries all over the world.
International Shipping is Available for Customers
We would like to provide best serve for customers who bought our steel radiator
Gele company has sales department to handle orders, production department to control the products line, quality control department to inspect and supervise the quality issue, service department to care customer’s shipping and after-sales service, financial department to care the payments and receipts. Please kindly see our procedures below.
Pay terms for steel radiator
How long can we delivery goods?
1. Instock commodity: 1-5 days to pack and pass customer inspection.
2. Non-stock commodity: 20days after payment.
