| Brief Introduction |
|

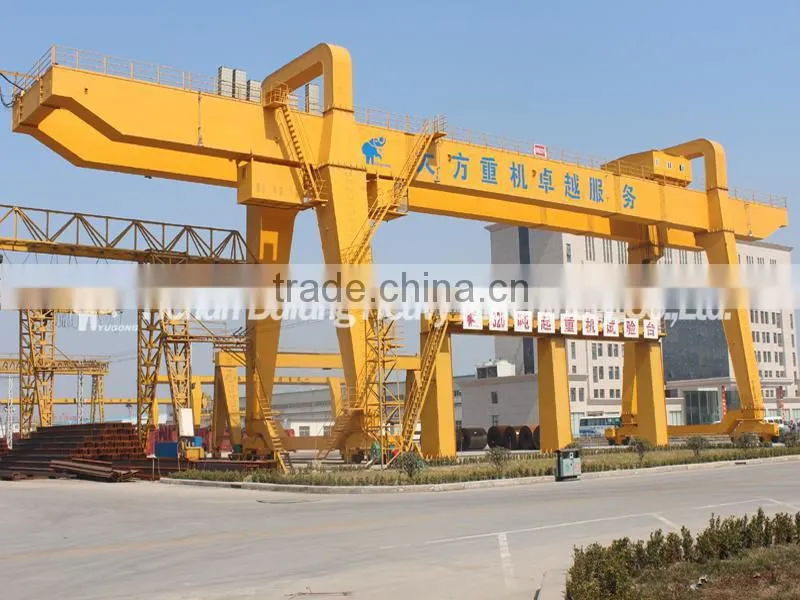

MG double beam gantry crane with hook is composed of gantry,crane cab, trolley traveling mechanism, cab and electric control system. The gantry crane is of a box-shape structure, the girder is bias track double girder and the leg is divided into Type A and U according to use's requirements. The colosed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fore extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and interphone which can be furnished as required by users. |
|
| Description of Gantry Crane |
|

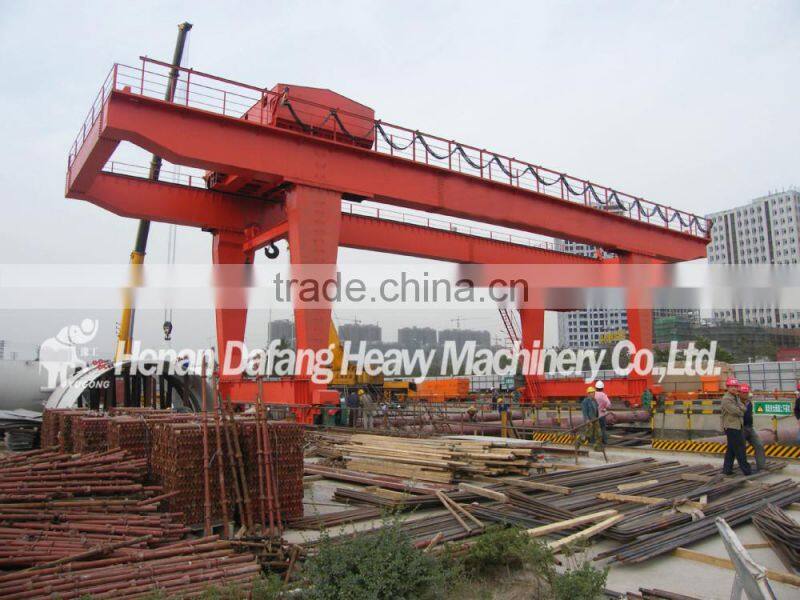

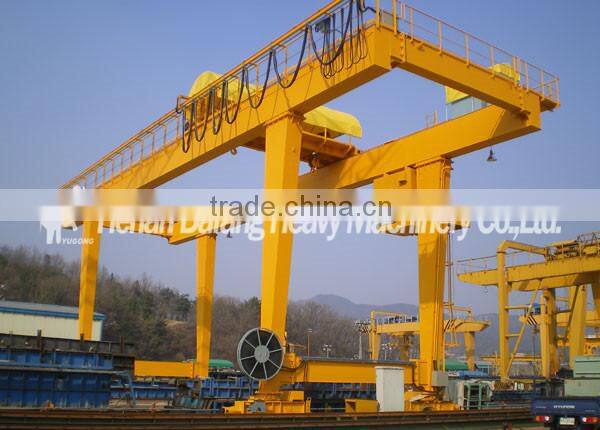

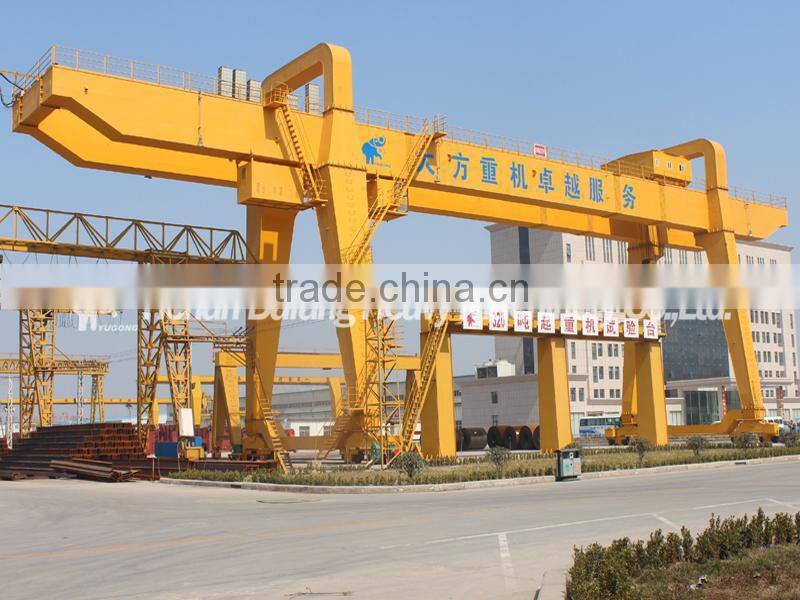

U type double girder gantry crane 1.Capacity: from 10 to 50 tons 2.Span: from 18 to 32 m, 3.Working class is medium & heavy grade. 4.Work in ports, mines, warehouse, docks and outdoor yards of the factory or on railways, 5.Consists of the bridge structure, the traveling mechanism, the cart and the electric equipment 6.All movements of the crane are controlled in the cabin. 7.The voltage and other data shall be proposed by user when filling the order form. |
Truss-type double girder gantry crane 1.Lifting capacity: up to 500ton 2.Span:12m to 35m 3.Lifting height: up to 12m 4.Working class: A5 5.Applied to port, the freight yard, windy areas 6.Adopts truss-type welded structure result to small windward side. (The wind-pressure is less than 125Pa.) 7.Adopts closed air conditioning house with linkage platform control, so it has the advantages of broad vision, flexible control, comfort work, and high efficiency. |
|
|

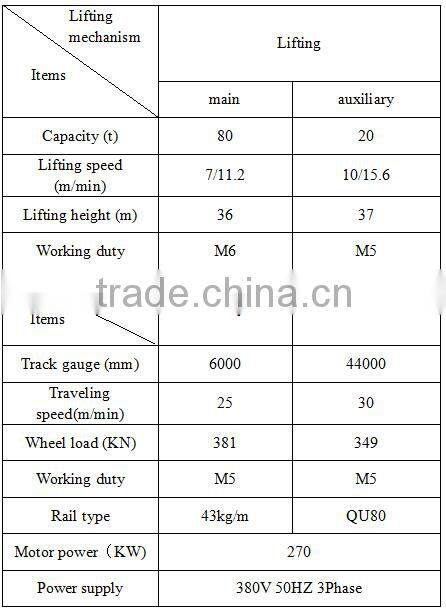

| Technical Parameters |
|
1.Because gantry cranes ride on the ground rather than on overhead runways, they don't require a runway structure. 2.Nor do they usually require concrete foundations. 3.Their installation is fast and simple. 4.Depending on the environment and application, gantry cranes can sometimes provide the same material handling capabilities as a comparable bridge crane system, but with a significant cost savings. 5.Light weight 6.Steady performance 7.Easy maintenance 8.Less wastage
|
| Advantages |
|
| Related Products |
|
| Information We Needed |
To offer the most suitable design for you, please let us know the following informations: • Lift Capacity(T): _________ (Rated Lift weight) • Lift Height(m): ___________ (Height from hook center) • Span(m):________________ (Distance between rail center, Do you need cantilever?) • Lift Speed(m/min):_________ (Single; Double; Variable) • Crane Travel Speed(m/min):________ (Single; Double; Variable) • Trolley Travel Speed (m/min):_______ (Single; Double; Variable) • Work Duty: ________ (Very frequently? How many hours per day?How many times per hour? ) • Environment:________ (Whether there is any explosive, combustible, corrosive air? ) • Lift What: __________ (We will consider whether need to match suitable hanger for you.) • Power:____________ (220v; 380v; 440v; 460; 480v) |

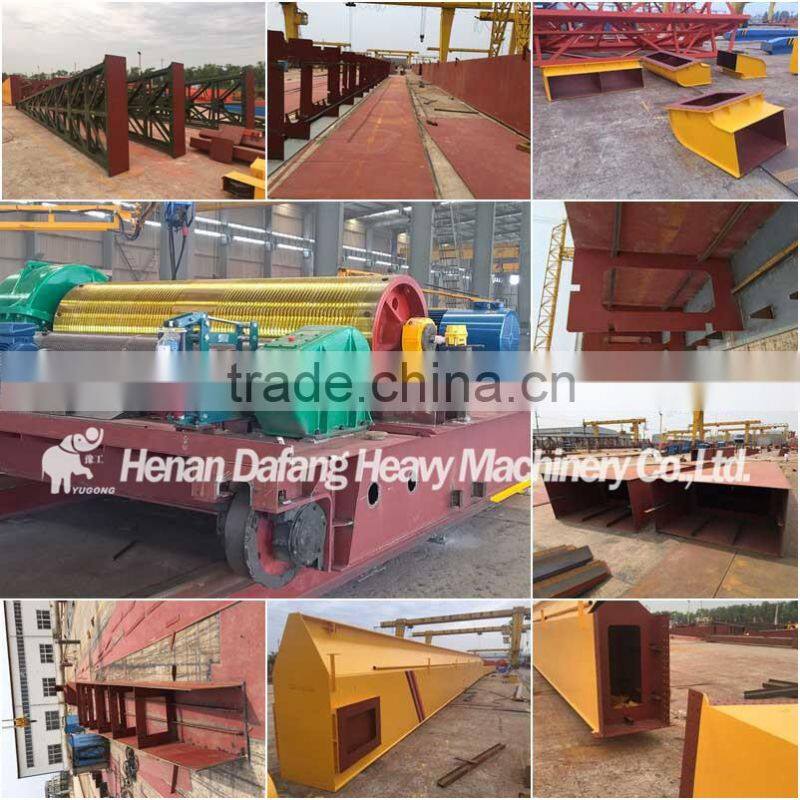

| Productions |
|
| Service |
|

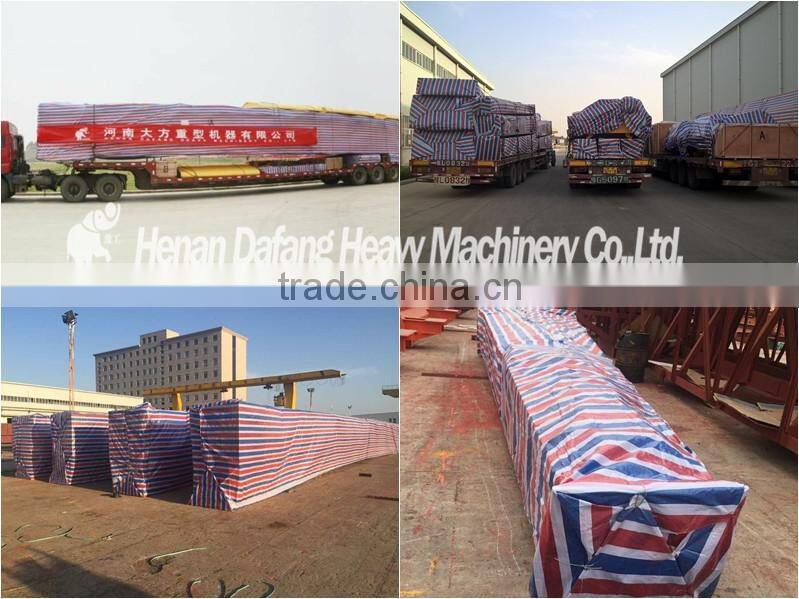

| Delivery Pictures |
|
| Company Introduction |
|
