Hot Sale High Quality Smd Led 3528 Datasheet

US$ 0.005 - 0.006 MOQ: 10000 Pieces

Key Specifications

Model Number:

XW-3528SMD-002

Chip Material:

Other

Emitting Color:

Cool White

Cixi Xingwei Photoelectricity Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo

Delivery Detail:

Delivery time depends on order quantity.

Model Number XW-3528SMD-002

Chip Material Other

Emitting Color Cool White

Luminous Flux(lm) 4-5

Optical Attenuation(%) 0.05

Power Other

Power Dissipation 0.1

Color Rendering Index(Ra) 70

Color Temperature 2800-3200K 6000-6500K

Operating Temperature(℃) -45, 65

Storage Temperature(℃) -25, 80

Place of Origin Zhejiang, China

Brand Name XW

Certification CE

Specifications

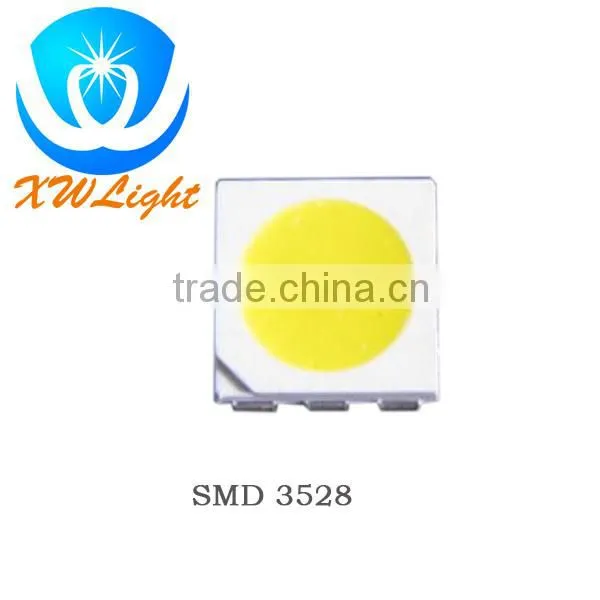

White 3528 smd led datasheet
1.Factory directly
2.The lowest price
3.High quality,high lumens
4.2 years warranty

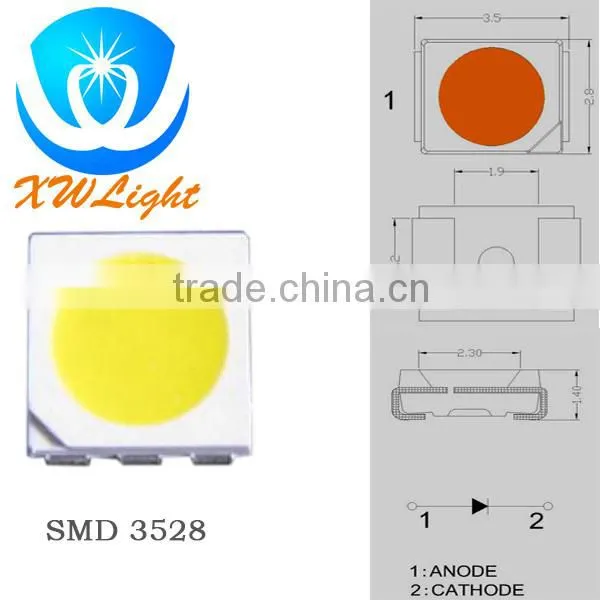

Technical Date Sheet:SMD LED 3528 datasheet

ABSOLUTE MAXIMUM RATING (Ta=25°C) 0.2W SMD Datasheet

Item	Symbol	Value	Unit
Peak Forward Current	IFp	60	mA
Reverse Voltage	VR	5.0	V
Continuous Forward Current	IF	20	mA
Recommend Operating Current	IF	18	mA
Operating Temperature	Topr	-40 to 85	°C
Storage Temperature	Tstg	-40 to 100	°C
Lead Soldering Temperature	Tsol	260°C for 3 seconds

CHARACTERISTICS(Ta=25°C)

Parameter	Condition	Symbol	Min	Typ	Max	Units
Power Dissipation	IF=60mA	Pd	/	60	/	mw
Correlated Color Temperature	IF=60mA	CCT	5000	/	10000	K
Forward Voltage	IF=60mA	VF	2.8	3.2	3.8	V
Reverse Current	VR=5V	IR	/	/	10	μA
Chromaticity Coordinates	IF=60mA	X	/	0.31	/
Chromaticity Coordinates	IF=60mA	Y	/	0.33	/
Luminous Flux	IF=60mA	ΦV	17	20	25	LM
Luminous Intensity	IF=60mA	IV	1600	/	2600	mcd
Color Rending index	IF=60mA	CRI	/	70	/	Ra
Full Viewing Angle	IF=60mA	2Φ1/2	/	120	/	deg
