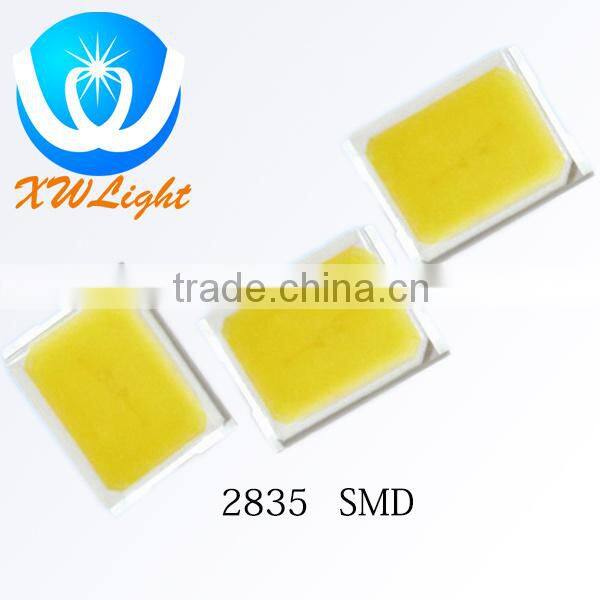

Hot High Brightness 0.2w LED Smd Epistar 2835 Led Diode

US$ 0.015 - 0.016 MOQ: 10000 Pieces

Key Specifications

Model Number:

XW-2835SMD-001

Chip Material:

Other

Emitting Color:

Cool White

Cixi Xingwei Photoelectricity Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo

Delivery Detail:

Delivery time depends on order quantity.

Model Number XW-2835SMD-001

Chip Material Other

Emitting Color Cool White

Luminous Flux(lm) 20-25

Optical Attenuation(%) 0.05

Power Other

Power Dissipation 0.5

Color Rendering Index(Ra) 70

Color Temperature 2800-3200K 6000-6500K

Operating Temperature(℃) -45, 65

Storage Temperature(℃) -25, 80

Brand Name XW

Certification CE

Specifications

White 2835 smd led datasheet
1.Factory directly
2.The lowest price
3.High quality,high lumens
4.2 years warranty,life:30

Technical Date Sheet:0.2 W 2835 SMD

ABSOLUTE MAXIMUM RATING (Ta=25°C) 0.2W SMD Datasheet

Item	Symbol	Value	Unit
Peak Forward Current	IFp	150	mA
Reverse Voltage	VR	5.0	V
Continuous Forward Current	IF	60	mA
Recommend Operating Current	IF	55	mA
Operating Temperature	Topr	-40 to 85	°C
Storage Temperature	Tstg	-40 to 100	°C
Lead Soldering Temperature	Tsol	260°C for 3 seconds

CHARACTERISTICS(Ta=25°C)

Parameter	Condition	Symbol	Min	Typ	Max	Units
Power Dissipation	IF=60mA	Pd	/	200	/	mw
Correlated Color Temperature	IF=60mA	CCT	2500	/	3200	K
Forward Voltage	IF=60mA	VF	2.8	3.2	3.8	V
Reverse Current	VR=5V	IR	/	/	10	μA
Chromaticity Coordinates	IF=60mA	X	/	0.455	/
Chromaticity Coordinates	IF=60mA	Y	/	0.413	/
Luminous Flux	IF=60mA	ΦV	17	20	25	LM
Luminous Intensity	IF=60mA	IV	5000	/	8000	mcd
Color Rending index	IF=60mA	CRI	60	/	/	Ra
Full Viewing Angle	IF=60mA	2Φ1/2	/	120	/	deg
