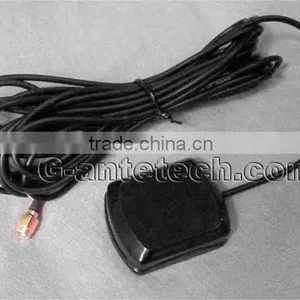

Help CenterGps Antenna
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Antenna
Screen Size:
7 inch
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Gps Antenna
Screen Size
7 inch
Place of Origin
Guangdong, China
Brand Name
G-ANTETECH
Model Number
GA-GPS-01
Specifications
High Gain Low Noise Antenna(i)Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7*7cm ground plane
Gain Coverage >-4dBic at -90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii)LNA/Filter
LNA Gain (Without cable) 28dB Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 10mA Max
(iii)Mechanical
Weight <110gram
Size 49*39*14mm
Cable RG174 2meter, 5meter long or other
Connector SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX/HRS/FAKRA/GT5 or other
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40~+85
Storage Temp. -45~+100
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproof
