China Factory Price Low Energy Bluetooth Module
- Shenzhen
- T/T Money Gram Credit Card
You May Like
-
2015 High-end Bluetooth Module
-
V4.0 Bluetooth Sound Module Bluetooth Audio Receiver Module Aptx Module
-
Wireless Csr Bluetooth Module Bluetooth Low Energy Module With Good Price
-
High Quality Bluetooth Audio Transmitter Module
-
Class 2 Csr Bluetooth Module A2dp Hsp Hfp Bluetooth Aptx 4.0 Audio Module
-
Shenzhen Factory Csr8645 Bluetooth Module Bluetooth 4.0 Audio Module
Product Details
| Package | 1 pcs Bluetooth module per blister | Model Number | ALM-803 | |
| Type | Drive IC | Brand Name | ALM | |
| Place of Origin | Guangdong, China |
1 pcs Bluetooth module per blister
Product Description
China factory price low energy bluetooth module:
This is a ultra small size Bluetooth module with PCB antenna built in, focusing on stereo headphon applications. The module is elaborately designed in EMI and audio configuration based on CSR8645 with CVC noise & echo cancellation and apt-X technologies, support for multi-link, smart apps connectivity, dual-mic, voice prompt features. It has excellent RF performance by fine-tuned RF match and antenna directionality.
China factory price low energy bluetooth module
specifications:
| Spec Item | Range | |
| General | Dimension (mm) | 17.0 x 9.0 x 3.0 mm (double side mounting) |
| PCB material | FR4 4 layers | |
| Soldering pin type | Double soldering pads for flat cable | |
| Antenna | Antenna built-in | |
| Firmware memory | ROM | |
| Bluetooth | Bluetooth version | V3.0 + EDR |
| Bluetooth chipset | BlueCore® CSR8645™ | |
| Profiles supported | A2DP/AVRCP/HFP/HSP | |
| Connectivity | Multi-link - A2DP/HFP | 2 x host devices (A2DP/HFP) or 2 x headsets |
| App connection | Support for Smart App Connectivity | |
| NFC | External NFC module available (Optional) | |
| RF/Wireless | Frequency range | 2.402GHz to 2.483GHz |
| Transmission power | Class 2 , -4 ~ +6 dBm | |
| Sensitivity | -90dBm (typical) | |
| Wireless Range | >10m ( free space) | |
| Audio | Microphone inputs | 2 x analog mic (stereo or dual-mono) |
| Line-in | Support for stereo line-in | |
| Output for speaker | Stereo differential output (upto 50mW) | |
| ADC sampling | 8 KHz ~ 48 KHz, 16-bit high-quality | |
| DAC sampling | 8 KHz ~ 96 KHz, 16-bit high-quality | |
| Codec | Hi-Fi quality stereo codec | |
| Decoder support | aptX, SBC, MP3 and AAC | |
| Music Enhancements | Configurable EQ, S3D, Volume Boost | |
| Noise/Echo reduction | CVC6.0 noise and echo reduction | |
| HSP voice | HD voice, bi-directional noise reduction | |
| Electrical | Supply Voltage - Charger | 4.75~5.75V (Recommended) |
| Supply Voltage - Battery | 4.30V (Max) | |
| Supply Voltage | 3.0V~3.7V (Recommended) | |
| Power comsumption - StandBy | ~250uA (typical) @ACL link, Sniff 500ms, LED off | |
| Power comsumption - SCO | ~12 mA (typical) @SCO link, HV3 packet | |
| Power comsumption - A2DP | ~14 mA (typical) @SBC, 48KHz sampling | |
Key specifications:
1.China factory price low energy bluetooth module
2.Mutl-link Bluetooth low energy Module version: V3.0
3.Bluetooth chipset:BlueCore® CSR8645™
4.Wireless Range >10m ( free space)
5.Profiles supported:A2DP/AVRCP/HFP/HSP
6.Multi-link: 2 x host devices (A2DP/HFP) or 2 x headsets
7.Smart connection:Support for Smart App Connectivity
8.Decoder support: APT-X, AAC, MP3, SBC and Faststream
China factory price low energy bluetooth module features:
1.China factory price low energy bluetooth module
2.Super Mini Size with PCB antenna built in
3.Support for Hi-Fi sound quality apt-X decoder built in
4.RF transmission power level configurable
5.Multi-band EQ tunable, S3D and Volume Boost
6.Support for voice prompt
7.Support for USB charging enumeration and Charge management
Outstanding Features:
1. low energy bluetooth module
2. Multi-languages voice prompt (optional)
3. Dual-mic technology as an option for better noise cancellation
4. Multi-link with source devices or 2 headsets
5. Amazing Individuality - Bluetooth kit of 1 transmitter adapter & 2 receivers/headsets
6. Complete verification test on functional, RF, audio and Bluetooth
7. Complete environmental & reliability test
China factory price low energy bluetooth module
Pictures:
About company:
Shenzhen ALM Technology Co., Ltd. is a innovation company in wireless audio technology and product field, providing professional value-added service for both Chinese export-oriented enterprises and international sourcing customers, focusing on medium/high end Bluetooth products with high quality in acoustic and RF enhanced, based on our strengths in wireless technology and industrial expertise from an strong expert team in R&D and production quality management.
Company View:

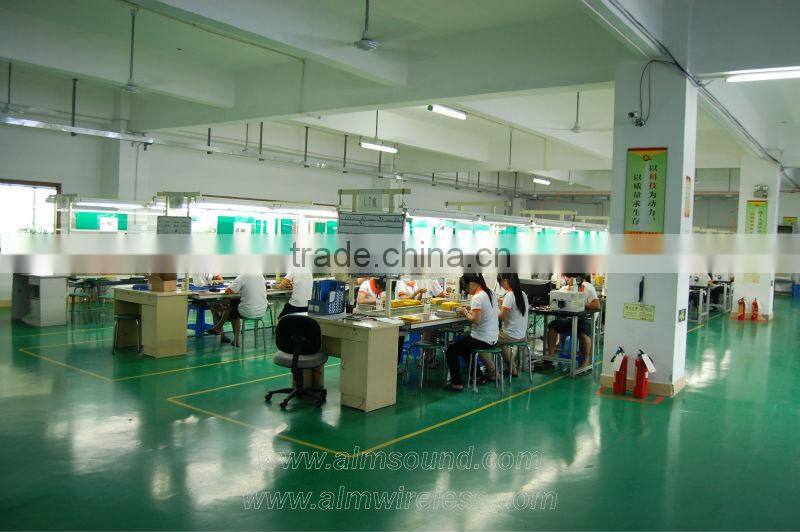

Production Assembly Line:
Bluetooth test:
A. OEM & ODM service
I. Based on our MOQ, we can brand your logo on products and package.
II. Perfect ODM service will be supplied by our professional R&D team.
B. Sample order
I. Stock-available sample:
Sample fee will be refunded after formal order.
Delivery time: Within 24 hours after received your sample fee.
II. Branding your logo sampling:
Sample fee will be quoted after your logo and your requirement in details.
Delivery time: 3-7 days depending on the requirement.
Sampling fee will not be refunded.
Delivered by: DHL, FedEx, UPS, EMS, Postal air mail etc.
C. After-sale services
I. Best quality and service for any order any client.
II. Normally One year Warranty:
We will replace the broken parts or unqualified product with new in the next order.
Ⅲ. For shipping: we will track the order until you get the goods.
IV. Please feel free to contact us if any problem.
Q1. How to play an order? What about prices?
A1: Play an inquiry or contact with online service, after receiving your inquiry we will reply you with prices and information,thank you.
Q2. Can i have my logo printed on the products and packing?
A2: Totally acceptable,thank you.
Q3.What is your payment terms?
A3: For sample: Paypal, T/T, west union;For production: T/T, L/C, or negotiable terms.Thank you.
Q4.What would the delivery time be?
A4: Regularly 20 days after sample confirmed, ahead to 10-15 days if urgent, thank you.
Q5.In an unlikely event that there is a faulty earphone from my order, what should I do?
A5: We have full healthy after-sales service system, if anything happened not match to the contract, we shall recheck and give a better service for customers, penalty or free replacement if necessary, thank you.
More informations, Pls feel free contact us .
Tel:+86 137 9854 4887
Skype:(live) cherry_1763
WhatsApp: 86 13798544887
