BMWR-2 Manual Folding Aluminum Wheelchair Ramps for Van and Minibus

BMWR-2 Manual Folding Aluminum Wheelchair Ramps for Van and Minibus photo-1
BMWR-2 Manual Folding Aluminum Wheelchair Ramps for Van and Minibus photo-2
BMWR-2 Manual Folding Aluminum Wheelchair Ramps for Van and Minibus photo-3
BMWR-2 Manual Folding Aluminum Wheelchair Ramps for Van and Minibus photo-4
BMWR-2 Manual Folding Aluminum Wheelchair Ramps for Van and Minibus photo-5
BMWR-2 Manual Folding Aluminum Wheelchair Ramps for Van and Minibus photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Aluminum, Stainless Steel&Aluminum
Capacity:
350Kg
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Aluminum, Stainless Steel&Aluminum
Capacity 350Kg
Place of Origin Jiangsu, China
Brand Name Xinder
Model Number BMWR-2



1. INTRODUCTION



BMWR-2 series wheelchair ramp is manual wheelchair ramp for van and minivan.

The ramp platform consists of two aluminum honeycombs panels, light and non-skid. You may easily fold or unfold it due to its hinged-joint constructionand gas springs. Its load capacity reaches 350kg.

It can be used for mini-vehicle such as wagon, light-van, van, and minivan and so on.

Take your little van space and bring you great convenience.



2.ADVANTAGES



  • Full manual operation
  • Non-skid and light aluminum honeycomb platform
  • Easy operation with gas springs at the two sides of ramp
  • Two supports under the second ramp to keep stable.
  • Setscrew at ramp bottom (refer to Figure below) to vertically keep the retracted ramp, avoiding the auto-unfold danger







3. SPECIFICATIONS



Model

BMWR-201

BMWR-202

Platform Net Size(A*B)

1910*810mm

2310*810mm

Folded Overall Height(D)

1050mm

1250mm

Folded Top Overall Width(C)

880mm

Folded Overall Length (E)

265 mm

Drive Mode

Manual

Load Capacity

350kg

Own Weight

34kg

Installation

 side or rear door of vehicle

Application

Wagon, light-van, van, and minivan and so on


4. OPERATION

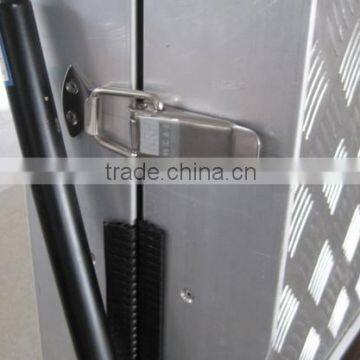

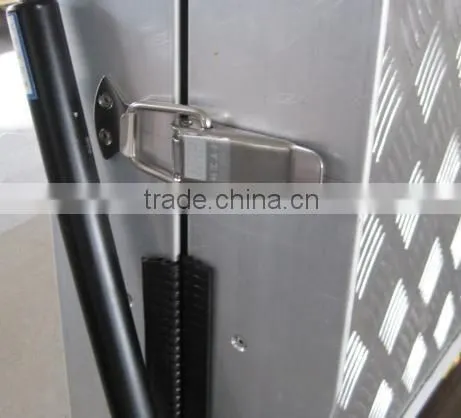

1) The retracted ramp is locked by two buckles at the two sides of the ramp.

     To unfold the ramp, you shall unlock the two buckles first.

     Please refer to Figure 1 and Figure 2.

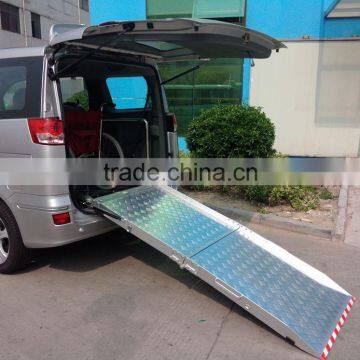

2) After the buckles unlocked, hold the handrail (refer to Figure 3) and pull the ramp forward. Then slop is finished to help wheelchairs get into/out of vehicle.





3) After the wheelchair gets into/out of vehicle, fold the ramp and lock the two buckles. BMWR-2 Manual Folding Aluminum Wheelchair Ramps for van and minibusBMWR-2 Manual Folding Aluminum Wheelchair Ramps for van and minibusBMWR-2 Manual Folding Aluminum Wheelchair Ramps for van and minibusBMWR-2 Manual Folding Aluminum Wheelchair Ramps for van and minibusBMWR-2 Manual Folding Aluminum Wheelchair Ramps for van and minibus
