1. INTRODUCTION

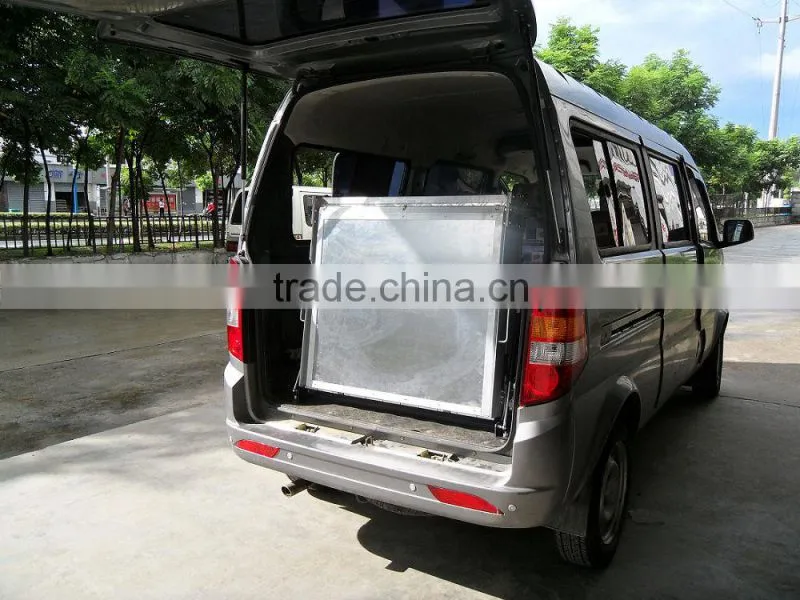

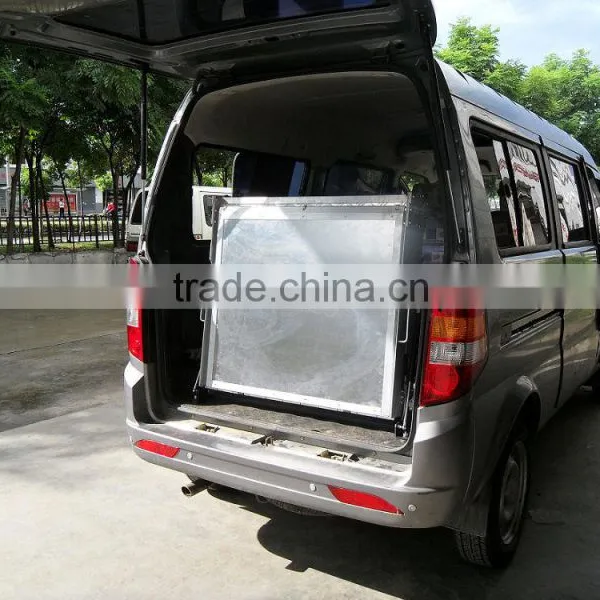

BMWR-3 series wheelchair ramp is developed on the basis of BMWR-2 series wheelchair ramp for van and minivan.

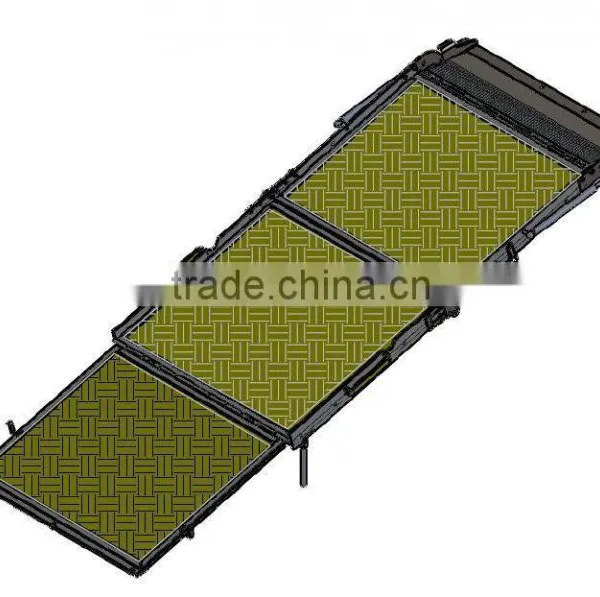

The ramp platform consists of three aluminum honeycombs panels, light and non-skid. You may easily fold or unfold it due to its hinged-joint construction and gas springs. Its load capacity reaches 350kg.
It will take your little van space and bring you great convenience.
2.ADVANTAGES
- Full manual operation
- Non-skid and light aluminum honeycomb platform
- Easy operation with gas springs at the two sides of ramp

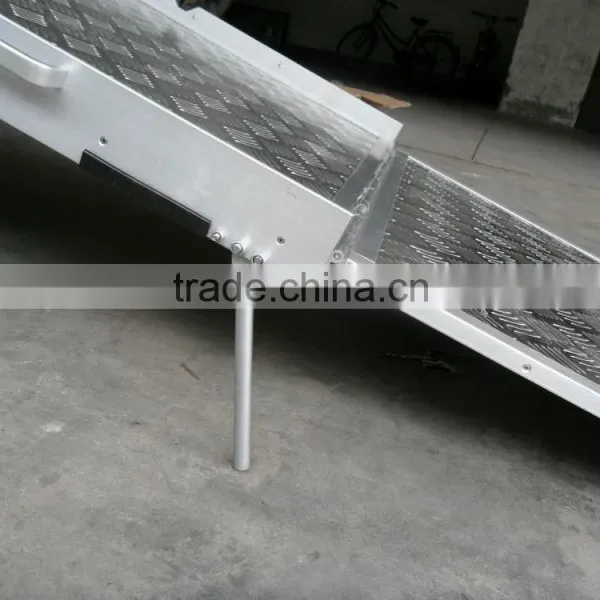

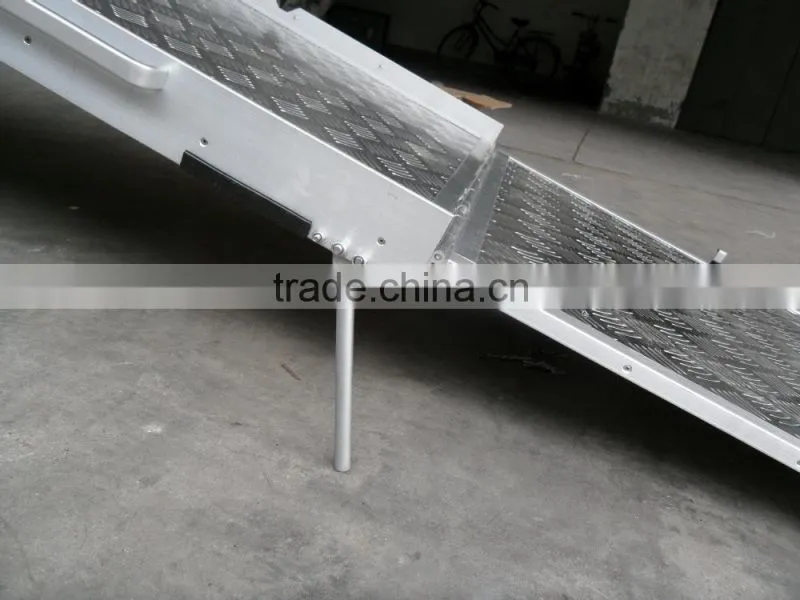

- Two supports under the second ramp to keep stable.

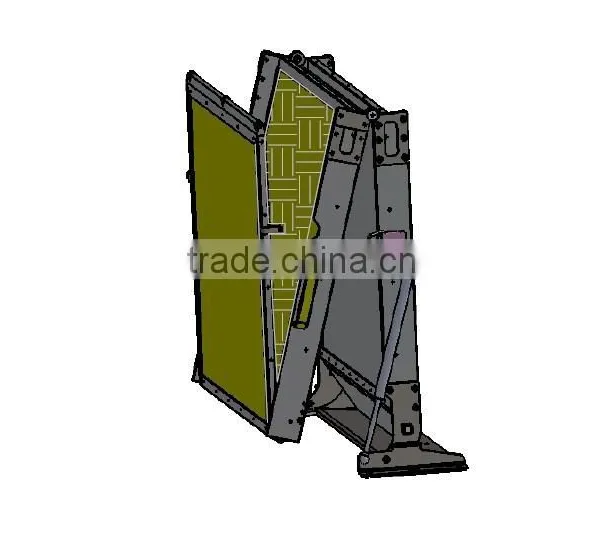

- Setscrew at ramp bottom (refer to Figure below) to vertically keep the retracted ramp, avoiding the auto-unfold danger
3. SPECIFICATIONS
Model |
BMWR-301 |
BMWR-302 |
BMWR-303 |
BMWR-304 |
Platform Net Width(A*B) |
2240×810 |
2700×810 |
3300×810 |
3900×810 |
Overall width (C) |
880 mm |
880 mm |
880 mm |
880 mm |
Folded Height (D) |
850 mm |
1050 mm |
1250 mm |
1450 mm |
Overall Length (E) |
265 mm |
265 mm |
265 mm |
265 mm |
Own weight |
40 Kg |
45 Kg |
50 Kg |
55 Kg |
Loading Capacity |
350 Kg |
|||
Installation |
side or rear door of vehicle |
|||
Application |
van, minivan, truck and so on |
|||

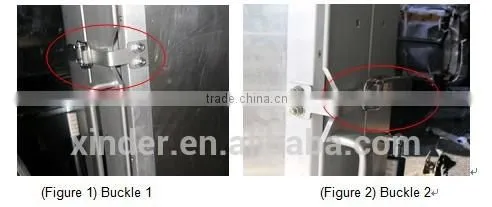

1) The retracted ramp is locked by two buckles at the two sides of the ramp.
To unfold the ramp, you shall unlock the two buckles first.
Please refer to Figure 1 and Figure 2.

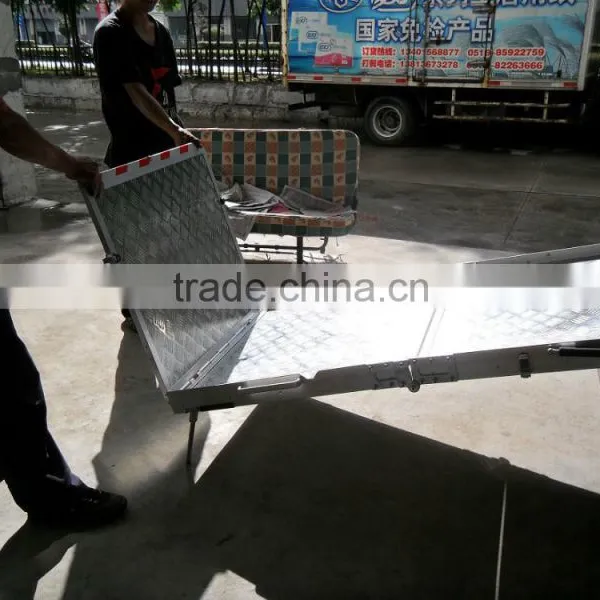

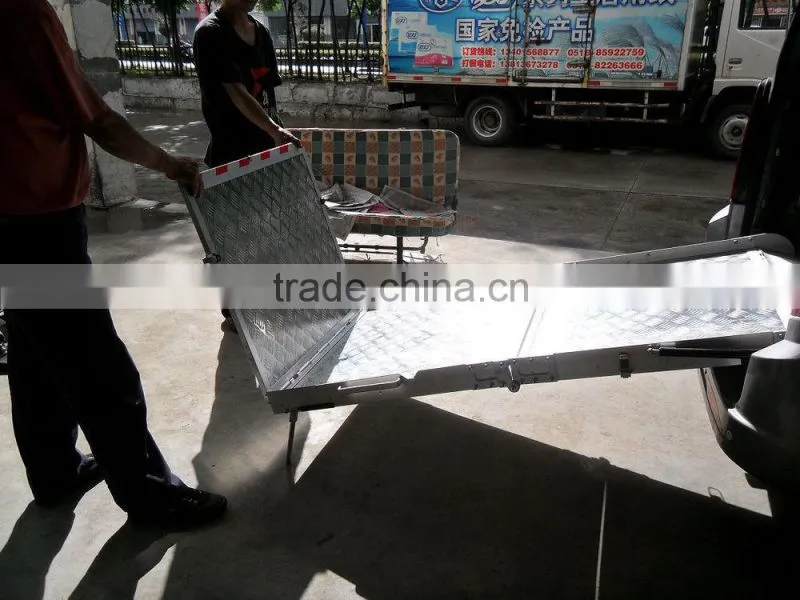

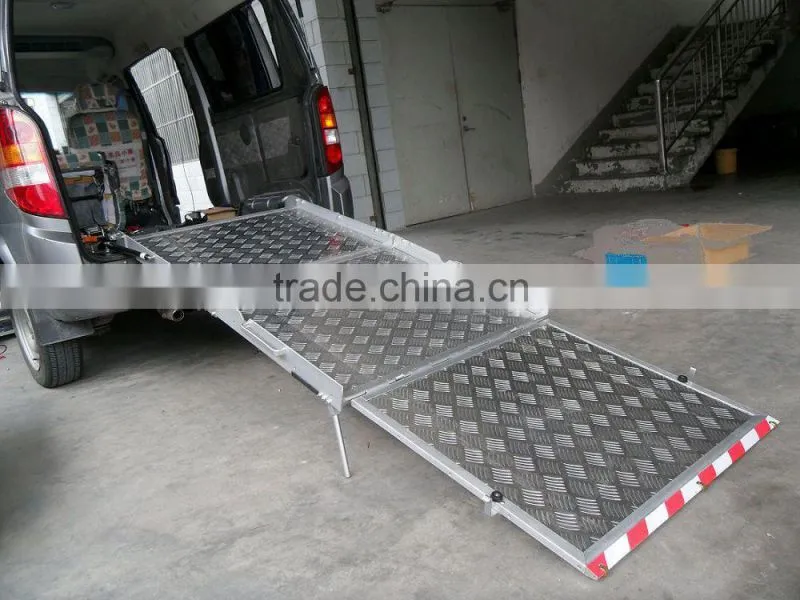

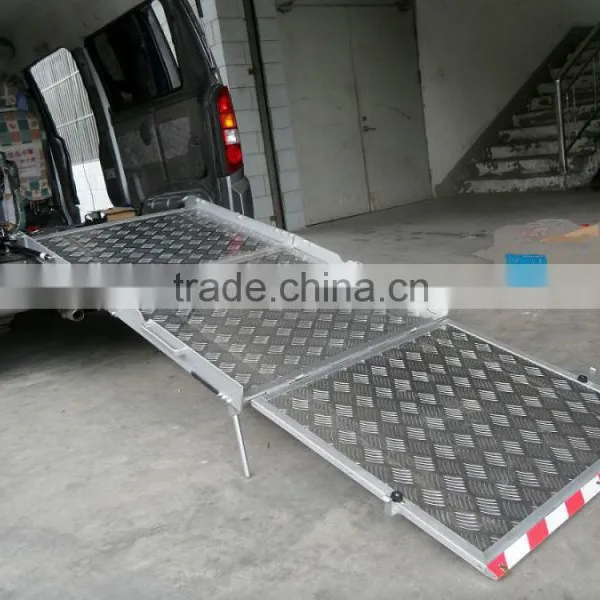

2) After the buckles unlocked, hold the handrail (refer to Figure 3) and pull the ramp forward. Then slop is finished to help wheelchairs get into/out of vehicle.
3) After the wheelchair gets into/out of vehicle, fold the ramp and lock the two buckles.
