Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar

Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar thumbnail-1
Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar thumbnail-2
Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar thumbnail-3
Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar thumbnail-4
Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar thumbnail-5
Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar photo-1
Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar photo-2
Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar photo-3
Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar photo-4
Water- Cooling Direct Driven Rotary Type of Air Compressor 10bar photo-5
US$ 4,600 - 51,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Stationary
Contact Supplier Request Quote Chat Now
Shaanxi Kaishan Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
main ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Screw
Configuration Stationary
Power Source AC Power
Lubrication Style Lubricated
Mute Yes
Place of Origin Zhejiang, China
Brand Name Kaishan
Model Number LGS-38/10G
Voltage 380V
Dimension(L*W*H) 3900*2000*2050mm
Weight 6200kg
Certification ISO9001 CE
Warranty 1 Year
After-sales Service Provided No overseas service provided

Welcome to SHAANXI KAISHAN EQUIPMENT CO.,LTD.
Best quality goods, lowest price, perfect service.

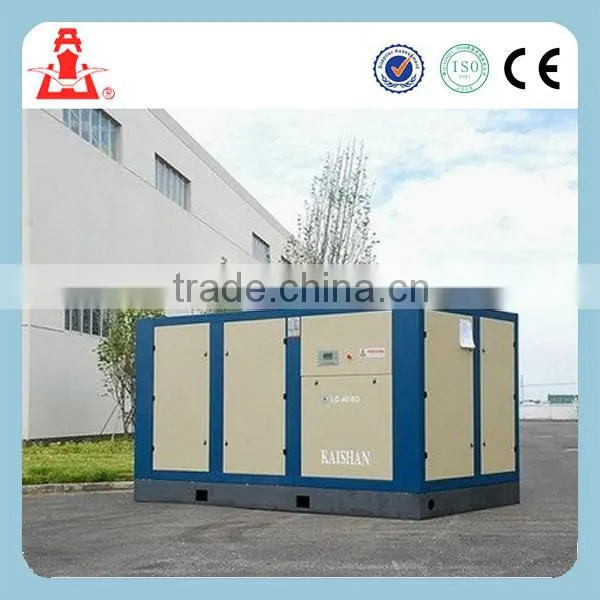

LG Water-cooled electric stationary screw air compressor



Description:

1.Air pressure: 0.7- 1.3Mpa

2.Capacity:2.3- 104M3/Min

3.Motor power scope:18.5-560KW





Characteristics:

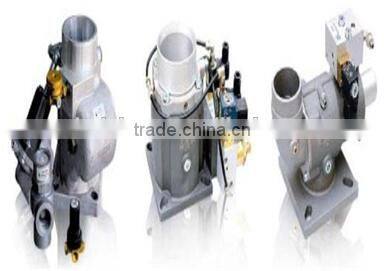

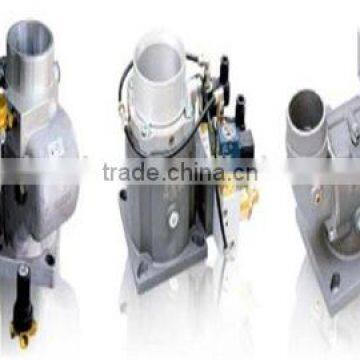

Modulation Inlet Valve:

1.Pilot valve control 100% pressure signal  to air inlet valve.

2.Modulation inlet valve to ensure energy saving.

3.Minimum pressure check valve to maintain minimum oil injection line pressure and prevent oil back flow.



High Efficient Air end:

1.Using high efficient air end

2.Special designed rotors teeth produce exceptional high quality air end

3.Reliable bearing provide extended bearing operating life.

4.Using triple shaft seal to prevent oil leakage.

5.Special designed, harden shaft seal O-ring to provide reliable shaft sealing.



Cooling system: Large cooler and larger fan allow extreme working condition.



PLC controller:

1.User friendly control panel screen

2.Easy to operate

3.Easy to read from screen

4. 24 hours remote control function

5. Show solution message when machine is malfunction



High efficient motor:

1.Large torque setting

2.F class insulation, protection grade-IP54

3.SKY bearing, low operating sound, extended operating life

4.Lubricant filler design, lubricant can be refilled when motor is in operation.



Key components

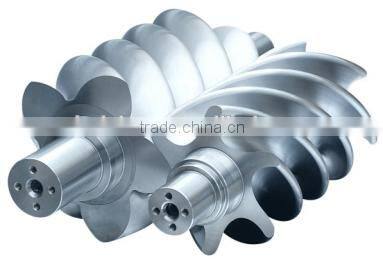

Air end

Water- cooling direct driven rotary type of air compressor 10bar

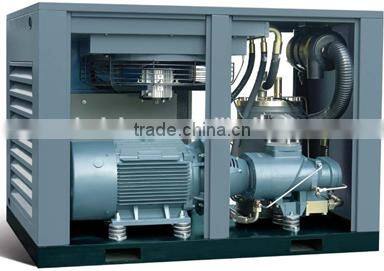

Air Cooled Package

Water- cooling direct driven rotary type of air compressor 10bar

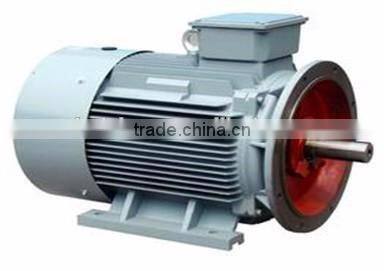

High Efficiency Drive Motors

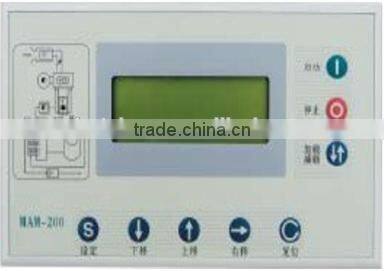

Integrated Microprocessor Controller

Water- cooling direct driven rotary type of air compressor 10bar

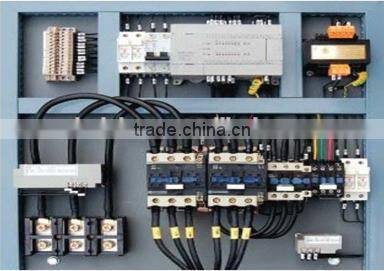

Electrical Control Protection

Water- cooling direct driven rotary type of air compressor 10bar

Versatile Package Control System

Water- cooling direct driven rotary type of air compressor 10bar

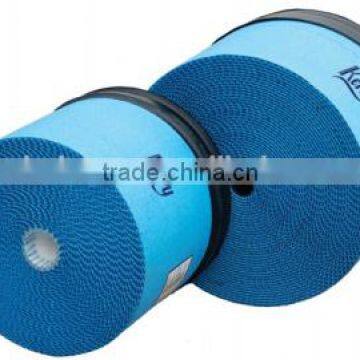

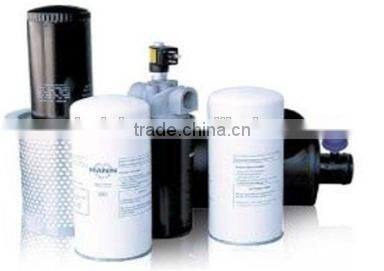

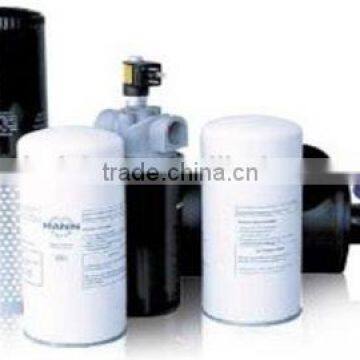

Superior Filtration System

Water- cooling direct driven rotary type of air compressor 10bar

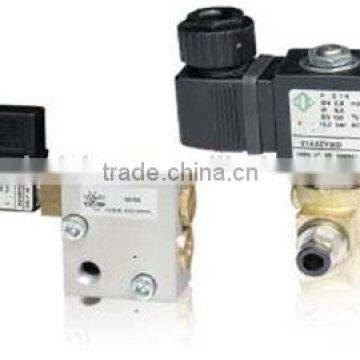

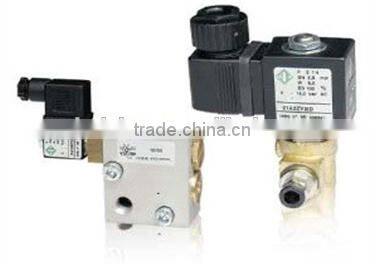

Electronic Pressure Controller and Solenoid Valve

Water- cooling direct driven rotary type of air compressor 10bar



Technical Parameters:



Model

Working pressure

Mpa

Capacity

m3/min

Motor Power

kw

Weight

kg

Dimension

mm

LGS-16/8G

0.8

16.5



90



2100



2600×1350×1620

LGS-14/10G

1.0

14

LGS-12/13G

1.3

12

LGS-20/8G

0.8

20



110



3000



2760×1680×1710

LGS-17/10G

1.0

17

LGS-13/13G

1.3

13

LGS-22/8G

0.8

22



132



3050



2760×1680×1710

LGS-20/10G

1.0

20

LGS-16/13G

1.3

16

LGS-28/7G

0.7

28



160



3300



2760×1680×1710

LGS-23/10G

1.0

23

LGS-21/13G

1.3

21

LGS-35/8G

0.8

35



200



4400



3230×1821×2000

LGS-30/10G

1.0

30

LGS-27/13G

1.3

27

LGS-45/7G

0.7

45



250

6000

3700×2000×2050

LGS-38/10G

1.0

38

6200

3900×2000×2050

LGS-33/13G

1.3

33

5800

3700×2000×2050

LGS-58/7G

0.7

58



315



6200



4200×2200×2250

LGS-48/10G

1.0

48

LGS-42/13G

1.3

42

LGS-64/7G

0.7

64



355



6300



4200×2200×2250

LGS-54/10G

1.0

54

LGS-48/13G

1.3

48

LGS-82/7G

0.7

82



450



6600



4500×2200×2250

LGS-68/10G

1.0

68

LGS-59/13G

1.3

59

LGS-104/7G

0.7

104



560



6850



4500×2200×2250

LGS-90/10G

1.0

90

LGS-78/13G

1.3

78



   Our Company:

Shanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a
1. Beautiful ancient City - Xi'an. Since founded more than 10 years ago, our company has accumulated much experience in the business of air compressors and drilling rig machines
2. National Free-inspection Product,Have passed ISO9001 certification.
3. Good Service, competitive price, high quality, fast shipping and perfect after sale service.

Workshop:

Water- cooling direct driven rotary type of air compressor 10bar

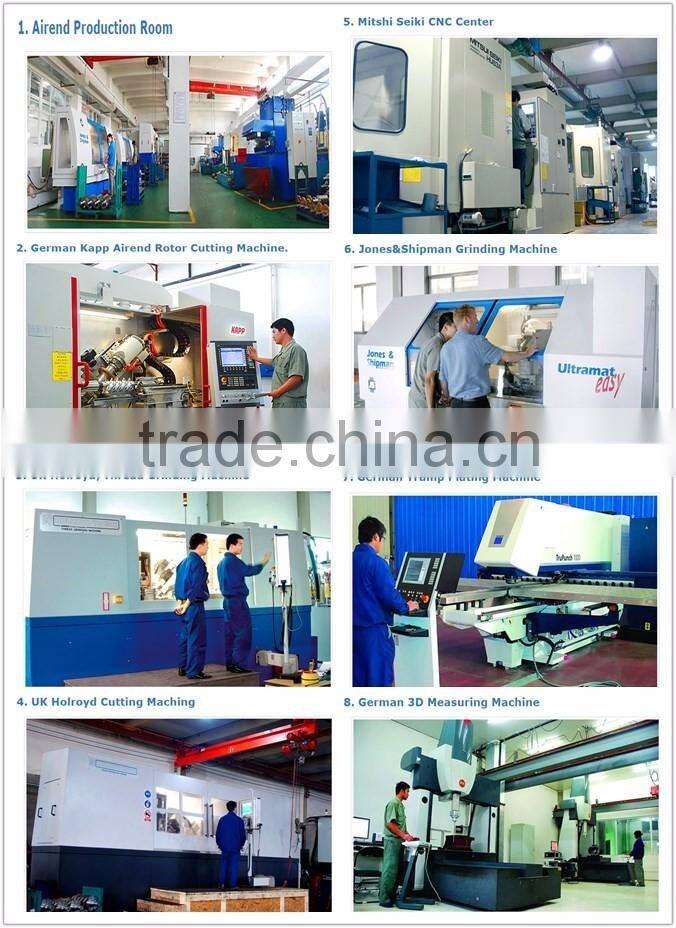

Production process:

Water- cooling direct driven rotary type of air compressor 10bar
Certificates:
Water- cooling direct driven rotary type of air compressor 10barHow to contact us?
