8 Bar Air Compressor & Water-cooled Screw Air Compressor With 37kw Motor

8 Bar Air Compressor & Water-cooled Screw Air Compressor With 37kw Motor thumbnail-1
8 Bar Air Compressor & Water-cooled Screw Air Compressor With 37kw Motor photo-1
US$ 1,280 - 31,560 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Stationary
Contact Supplier Request Quote Chat Now
Shaanxi Kaishan Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Screw
Configuration Stationary
Power Source AC Power
Lubrication Style Oil-less
Mute Yes
Place of Origin Zhejiang, China
Brand Name Kaishan, kaishan
Model Number LGS-6.2/8G-M
Voltage Customer's Requirement)
Dimension(L*W*H) 1778*1000*1300
Weight 1020kg - 6850kg
Certification ISO9001
Warranty 1 year
After-sales Service Provided Overseas third-party support available



Supplier Assessment

Our Assessment

https://img13.fr-trading.com/company_profile/capability_assessment.html

Product Description

 Main Features of 8 bar Air compressor & Water-cooled screw air compressor with 37kw motor

  • Good environmental adaptability
  • The latest-generation high efficiency SKK Series screw rotor
  • Well-know screw compressor end
  • Interactive control system
  • Imported advanced microcomputer
  • Imported air capacity fontrol system
  • Imported filtration stytem
  • Selectable variable frequency control system

  Cooling system: Large cooler and larger fan allow extreme working condition.

   PLC controller:

  1.User friendly control panel screen

  2.Easy to operate

  3.Easy to read from screen

  4. 24 hours remote control function

  5. Show solution message when mechine is malfunction

Technical Parameters of 8 bar Air compressor & Water-cooled screw air compressor with 37kw motor

Model

Motor power
KW

Displacement
m3/min

Working pressure
Mpa

Weight
kg

Size
mm

LGS-6/8
LGS-5.6/10
LGS-4.8/13

37

6.0
5.6
4.8

0.8
1.0
1.3

1020

1778×1000×1300

LGS-7.5/8
LGS-6.5/10
LGS-5.6/13

45

7.5
6.5
5.6

0.8
1.0
1.3

1120

1778×1000×1300

LGS-10/8
LGHS-8.7/10
LGS-7.5/13

55

10
8.7
7.5

0.8
1.0
1.3

1800

2600×1350×1620

LGS-13/7
LGS-14.5/7
LGS-10/10
LGS-12/10

75

13
14.5
10
12

0.7
0.7
1.0
1.0

1800

2600×1350×1620

LGS-16/7
LGS-16.5/7
LGS-14.5/10
LGS-12/13

90

16
16.5
14.5
13

0.7
0.7
1.0
1.3

1900

2600×1350×1620

LGS-21/7
LGS-20/7
LGS-17/10
LGS-15/13

110

21
20
17
15

0.7
0.7
1.0
1.3

2400

2760×1680×1710

LGS-24/8
LGS-22/8
LGS-20/10
LGS-17/13

132

24
22
20
17

0.8
0.8
1.0
1.3

2500

2760×1680×1710

LGS-28/7
LGS-25/10
LGS-21/13
LGS-23/13

160

28
25
21
23

0.7
1.0
1.3
1.3

3000

2760×1680×1710

LGS-42/8
LGS-30/10
LGS-27/13

200

42
30
27

0.8
1.0
1.3

3800

3430×1950×2090

LGS-45/7
LGS-38/10
LGS-33/13

250

45
38
33

0.7
1.0
1.3

4500

3430×1950×2090

LGS-58/7
LGS-48/10
LGS-42/13

315

58
48
32

0.7
1.0
1.3

5800

4000×2000×2100

LGS-64/7
LGS-54/10
LGS-48/13

355

64
54
48

0.7
1.0
1.3

6200

4000×2000×2100

LGS-82/7
LGS-68/10
LGS-59/13

450

82
68
59

0.7
1.0
1.3

6600

4200×2200×2100

LGS-104/7
LGS-90/10
LGS-78/13

560

104
90
78

0.7
1.0
1.3

6850

4200×2200×2100

LGS-140/7

800

140

0.7

9700

4200×2200×2100



Product Overviews

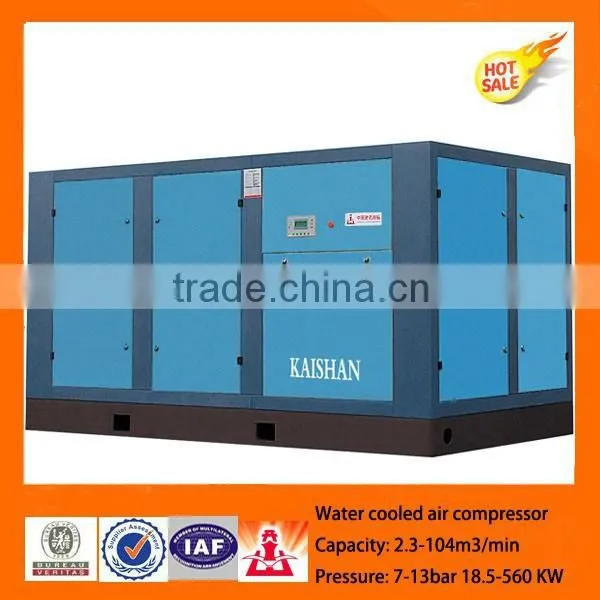

Pictures of 8 bar Air compressor & Water-cooled screw air compressor with 37kw motor

8 bar Air compressor & Water-cooled screw air compressor with 37kw motor

8 bar Air compressor & Water-cooled screw air compressor with 37kw motor

8 bar Air compressor & Water-cooled screw air compressor with 37kw motor

8 bar Air compressor & Water-cooled screw air compressor with 37kw motor



Packaging & Shipping

Packaging for 8 bar Air compressor & Water-cooled screw air compressor with 37kw motor:  wooden case, also according to your request.



Shipping: 15-30 days by Fedex, UPS, EMS, TNT, etc
