Products description
1. Lead small-displacement trend to scroll tech.
2. Energy-saving: Direct coupling with Ganey’s exclusive air end, and hourly saving at least 1.5 KW.H than piston
3. Silencing: Unique structural balance design for air end with minimum vibration & lowest noise to 60±5 dB(A)
4. Reliable: Superior system structure, only 1/10 piston moving parts, bearing slightly stressed, stable running, and durable non- contacting Scroll
5. Economical: Fewer structural parts, and only requires of periodic replacement of consumable parts
| Model | OX-15 |
| Compression methods | Scroll Type |
| Configuration | Stationary |
| Lubrication methods | Oil-injected |
| Cooling way | Air-cooled |
| Motor frequency | 50 /60 HZ |
| Power supply voltage | 220-480 V |
| Motor power | 15 KW |
| Motor start way | Direct Startup |
| displacement | 1.6-1.8/2.0-2.2 m3/min |
| Exhaust pressure | 0.8/1.0 Mpa |
| Dimension | 1130×690×915 mm |
| Noise value | 62±3 dB( A ) |
| weight | 428 kg |

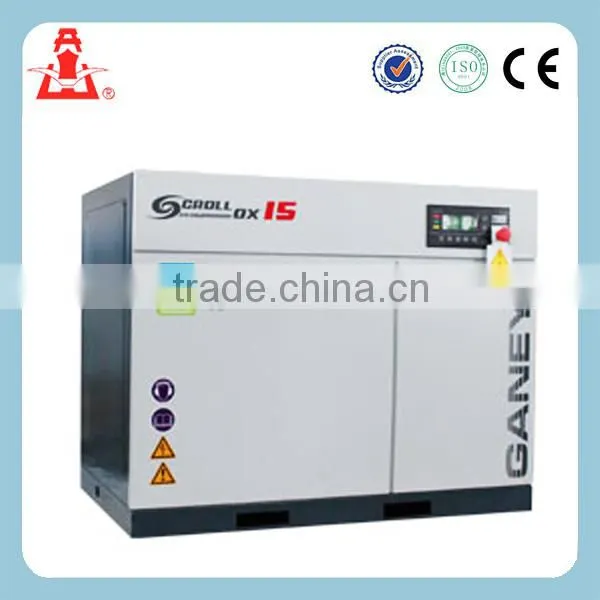

OX 15 is new generation of scroll compressor with high end configuration, most distinguish feature is about high enegry efficiency

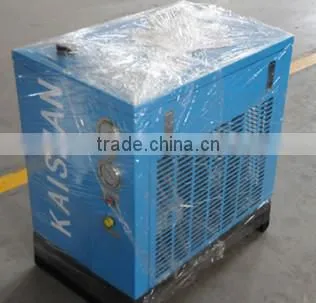

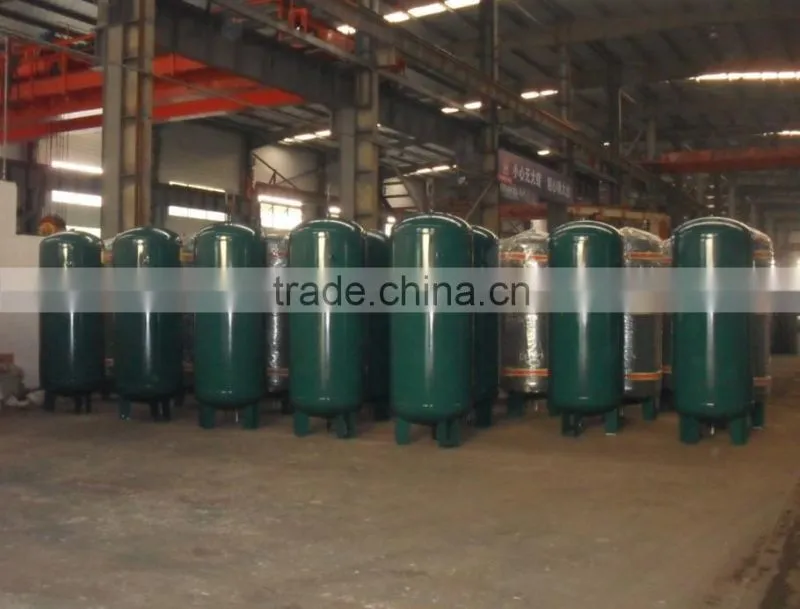

and super mute. and also can realize air delivery with less oil residue by install additional air dryer, air tank and precision air filter .
We will provide package in accordance with your request and the products will be delivered after 20-30 days.
The products provided by us is of 1 year warranty, and on-line service will be supplied by us in time whenever you have any problem or question about the products you want to purchase or have purchased from us.
First established in the year of 2007, Shaanxi Kaishan Mechanical & Electrical Co.,Ltd.backing by Kaishan groups strong technical power and special geographic locations advantage as inland port, Founded and Registered on the basis of form kaishan group Xi’an office, with personal financing, Through 15 years development, Shaanxi kaishan had become a comprehensive form of complete equipments enterprise that combine sales,installation,repair &maintenance as one,and can provide all kinds and model of industrial screw ,piston , scroll air compressor rang from 1.1 kw to 335 kw to satisfy demand at the working condition of diverse customers and mobile compression air equipment in the blasting hole process.at same time,offer a complement Compression air purification equipment and spare parts,The company have long been cooperate with Zhejiang kaishan compressor Co.,Ltd. Which is exclusive distributor of kaishan brand equipments at northwest region.the company is now dedicate to provide a special compress air technique solution, ,top class products and perfection after-sales service,in line with customers demand-orientation ,and saving customers production efficiency as the object.
