Home > Products > Screw vacuum pump > Screw-Type Dry Vacuum Pump/PV-series Variable Pitch Dry Vacuum Pump/Dry Screw Vacuum Pumps for various
Screw-Type Dry Vacuum Pump/PV-series Variable Pitch Dry Vacuum Pump/Dry Screw Vacuum Pumps for various
- 2000 Set / Sets per Month
- shanghai
- T/T Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Kaishan | Model Number: | VP55-40 |
Theory: | Vacuum Pump | Structure: | Screw Pump | Usage: | Air Pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electricity |
Pressure: | High Pressure | Application: | Other, vaccum pump |
Product Description
Screw-Type Dry Vacuum Pump/PV-series Variable Pitch Dry Vacuum Pump/Dry Screw Vacuum Pumps for various
1. Advantages of Screw-Type Dry Vacuum Pump/PV-series Variable Pitch Dry Vacuum Pump/Dry Screw Vacuum Pumps for various
20% energy-saving
Kaitec Screw vacuum pump operation efficiency is very high,Due to the patent design of flexible screw compressor,VP series vacuum pump than other types of vacuum pump energy
consumption reduced by about 20%.The electric motor power is smaller than other screw vacuum pump at he same displacement.
Efficient separation system
To seal vacuum pump rotor,the lubrication of bearings,cooling and heat dissipation by high technology seal and lubircant.The mixture of exhaust with lubrication is purifid by Multi-stage separation system,The unit flow filter of separation system is highest in the industry, the effect is best.Reducing the cost of lubricant,separate by double. Advanced startup equipment To reduce the mechanical shock and reduce the demand for power grid, improve the service life of vacuum pump.Motor start from zero voltage soft start, to avoid the triangle to the problem of shortage of starting torque.The impact on the motor, compressor, power grid greatly reduced.
The vacuum without throttling inlet design
VPSeries of special air intake design and patent flexible screw compressor design from atmospheric pressure to the largest vacuum can be run at full capacity.This means that, When there are sudden load demand can better maintain a vacuum system.Other models in the system when using vacuum inlet throttling design, inlet load decreases.If the system vacuum suddenly drops, you have to protect itself, for fear motor overload.And VP series vacuum pump can work in any case of vacuum, because of the flexible screw compressor, exhaust orifice are optimal, Energy consumption of the province, all can be run at full capacity to maintain a vacuum system.
High vacuum ability
KaitecVacuum pump can be more than 29.9in Hgthe biggest vacuum.
This allows the vacuum pump is installed on any need stable and continuous vacuum applications.
Advanced starter device
VP series decrease the mechanical shock, lower the power system demand. It avoids the less triangle torque problem by starting from 0 voltage, while reducing the shock to motor, compressor and electricity net.
2. Specification of VP Series screw vacuum pump
Model | Volume flow cfm | Motor HP | Air inlet
| Air Outlet
| Weight KG | Dimension mm |
VP11-7 | 246 | 15 | DN50 | DN50 | 1120 | 1890 x 1230 x 1250 |
VP18-11 | 396 | 25 | DN65 | DN65 | 1550 | 2040 x 1330 x 1410 |
VP30-18 | 639 | 40 | DN80 | DN80 | 2500 | 2440 x 1660 x 1710 |
VP37-26 | 921 | 50 | DN100 | DN100 | 2700 | 2610 x 1710 x 1810 |
VP55-40 | 1407 | 75 | DN150 | DN150 | 4000 | 2810 x 1960 x 1810 |
VP75-49 | 1732 | 100 | DN150 | DN150 | 5800 | 3110 x 2160 x 2000 |
VP90-59 | 2096 | 125 | DN150 | DN150 | 6000 | 3110 x 2160 x 2000 |
VP160-97 | 3461 | 215 | DN350 | DN350 | 7500 | 4300 x 2400 x 2500 |

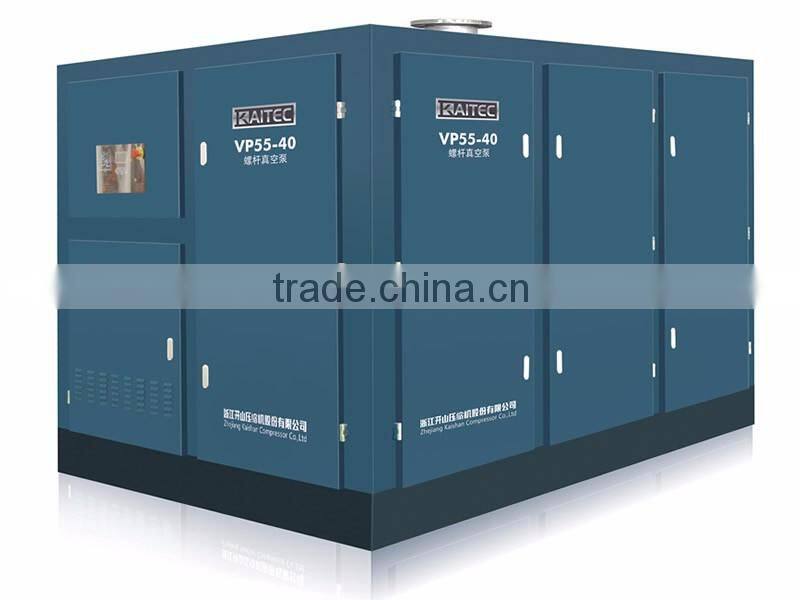

3. Picture of vp series screw vacuum pump
4. Package of screw vacuum pump
Package way: plastic bag + foam box + canton box + wooden case , request as customers' demand is available
Transportation: Ocean shipping, air transportation ,railway transportation or as request
Delievery time: 15-20 days after the payment.
5. Shaanxi Kaishan Mechanical & Electrical Co.,Ltd
More than 15 years development
Established in the year of 2007, Shaanxi Kaishan Mechanical & Electrical Co.,Ltd.backing by Kaishan groups strong technical power and special geographic locations advantage as inland port, Founded and Registered on the basis of form kaishan group Xi’an office, with personal financing.
Specialized in air compressor / pump/ rig/drill carriage/ project design
Through 15 years development, Shaanxi kaishan had become a comprehensive form of complete equipments enterprise that combine sales,installation,repair &maintenance as one,and can provide all kinds and model of industrial screw ,piston , scroll air compressor rang from 1.1 kw to 335 kw to satisfy demand at the working condition of diverse customers and mobile compression air equipment in the blasting hole process.at same time,offer a complement Compression air purification equipment and spare parts,The company have long been cooperate with Zhejiang kaishan compressor Co.,Ltd. Which is exclusive distributor of kaishan brand equipments at northwest region.the company is now dedicate to provide a special compress air technique solution, ,top class products and perfection after-sales service,in line with customers demand-orientation ,and saving customers production efficiency as the object.
6. Our Service
One year warranty in overseas branch
D&R center ensure top advantages

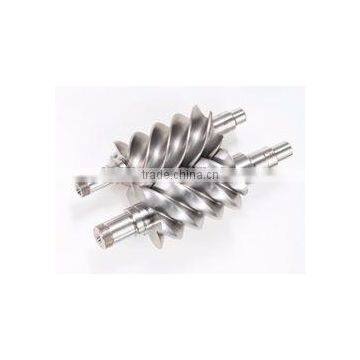

Core screw rod manufacturing technology
World top-class heat treatment production line imported from Japan
Advanced automatic mloding production line from USA
The UK HOLROYD NC srew rotor sharpnener
Advanced NC machine
German TRUMPF flexible sheet metal processing system
7. Certifications
