Home > Industrial Equipment & Components > Compressor > Compressor Unit > High Performance Kaishan VP Series Screw Vacuum Pump

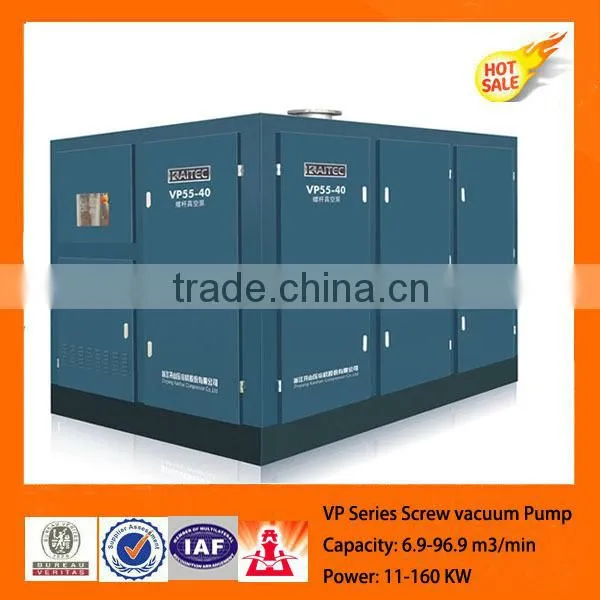

High Performance Kaishan VP Series Screw Vacuum Pump

Name: High Performance Kaishan VP Series Screw Vacuum Pump
Brand: Kaishan
SKU: 130169965
Availability: InStock

High Performance Kaishan VP Series Screw Vacuum Pump thumbnail-1

High Performance Kaishan VP Series Screw Vacuum Pump photo-1

US$ 19,900 - 25,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Screw

Configuration:

Stationary

Contact Supplier Request Quote Chat Now

Shaanxi Kaishan Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjing Shanghai Qingdao Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Screw

Configuration Stationary

Power Source AC Power

Lubrication Style Lubricated

Mute No

Place of Origin Zhejiang, China

Brand Name Kaishan

Model Number VP11-7

Voltage 380V

Dimension(L*W*H) 1890 x 1230 x 1250 mm

Weight 1120kg

Certification ISO ASEM CE

Warranty 1 years

After-sales Service Provided Engineers available to service machinery overseas

KAISHAN VP Series Screw Vacuum Pump

Products description

Kaitec Screw vacuum pump operation efficiency is very high,Due to the patent design of flexible screw compressor,VP series vacuum pump than other types of vacuum pump energy consumption reduced by about 20%.The electric motor power is smaller than other screw vacuum pump at he same displacement.

Efficient separation system

To seal vacuum pump rotor,the lubrication of bearings,cooling and heat dissipation by high technology seal and lubircant.The mixture of exhaust with lubrication is purifid by Multi-stage separation system,The unit flow filter of separation system is highest in the industry, the effect is best.Reducing the cost of lubricant,separate by double. Advanced startup equipment To reduce the mechanical shock and reduce the demand for power grid, improve the service life of vacuum pump.Motor start from zero voltage soft start, to avoid the triangle to the problem of shortage of starting torque.The impact on the motor, compressor, power grid greatly reduced.

the vacuum without throttling inlet design

VPSeries of special air intake design and patent flexible screw compressor design from atmospheric pressure to the largest vacuum can be run at full capacity.This means that, When there are sudden load demand can better maintain a vacuum system.Other models in the system when using vacuum inlet throttling design, inlet load decreases.If the system vacuum suddenly drops, you have to protect itself, for fear motor overload.And VP series vacuum pump can work in any case of vacuum, because of the flexible screw compressor, exhaust orifice are optimal, Energy consumption of the province, all can be run at full capacity to maintain a vacuum system.

High vacuum ability

KaitecVacuum pump can be more than 29.9in Hgthe biggest vacuum.

This allows the vacuum pump is installed on any need stable and continuous vacuum applications.

Model	Volume flow cfm	Motor HP	Air inlet	Air Outlet	Weight KG	Dimension mm
VP11-7	246	15	DN50	DN50	1120	1890 x 1230 x 1250
VP18-11	396	25	DN65	DN65	1550	2040 x 1330 x 1410
VP30-18	639	40	DN80	DN80	2500	2440 x 1660 x 1710
VP37-26	921	50	DN100	DN100	2700	2610 x 1710 x 1810
VP55-40	1407	75	DN150	DN150	4000	2810 x 1960 x 1810
VP75-49	1732	100	DN150	DN150	5800	3110 x 2160 x 2000
VP90-59	2096	125	DN150	DN150	6000	3110 x 2160 x 2000
VP160-97	3461	215	DN350	DN350	7500	4300 x 2400 x 2500
