Enviromental Protection Organic Rankine Cycle(ORC) System Generator
- China main ports
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Screw | |
| Configuration | Stationary | Power Source | AC Power | |
| Lubrication Style | Lubricated | Mute | Yes | |
| Place of Origin | Zhejiang, China | Brand Name | Kaishan | |
| Model Number | KE90-95V-1-50 | Certification | ISO9001 CE | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
enviromental protection organic rankine cycle(ORC) system generator
Power Station model | Steam temperature(°C) | Steam consumption(T/H) | Rated net electric energy production(kW) |
KE90-95V-1-50 | 100°Csaturated steam | 1.3 | 69 |
KE185-95V-1-50 | 100°Csaturated steam | 2.6 | 138 |
KE450-95V-1-50 | 100°Csaturated steam | 6.5 | 350 |
KE900-95V-1-50 | 100°Csaturated steam | 13.0 | 700 |
KE132-110V-1-50 | 115°Csaturated steam | 1.8 | 109 |
KE280-110V-1-50 | 115°Csaturated steam | 3.6 | 218 |
KE600-110V-1-50 | 115°Csaturated steam | 8.3 | 508 |
KE1200-110V-1-50 | 115°Csaturated steam | 16.5 | 1016 |
KE90-95V-2-50 | 100°Csaturated steam | 1.3 | 62 |
KE185-95V-2-50 | 100°Csaturated steam | 2.6 | 124 |
KE450-95V-2-50 | 100°Csaturated steam | 6.5 | 316 |
KE900-95V-2-50 | 100°Csaturated steam | 13.0 | 633 |
KE132-110V-2-50 | 115°Csaturated steam | 1.8 | 100 |
KE280-110V-2-50 | 115°Csaturated steam | 3.6 | 200 |
KE600-110V-2-50 | 115°Csaturated steam | 8.3 | 466 |
KE1200-110V-2-50 | 115°Csaturated steam | 16.5 | 933 |
Our Advantage:
Mountain organic Rankine's circulation screw expansion of power station -- |

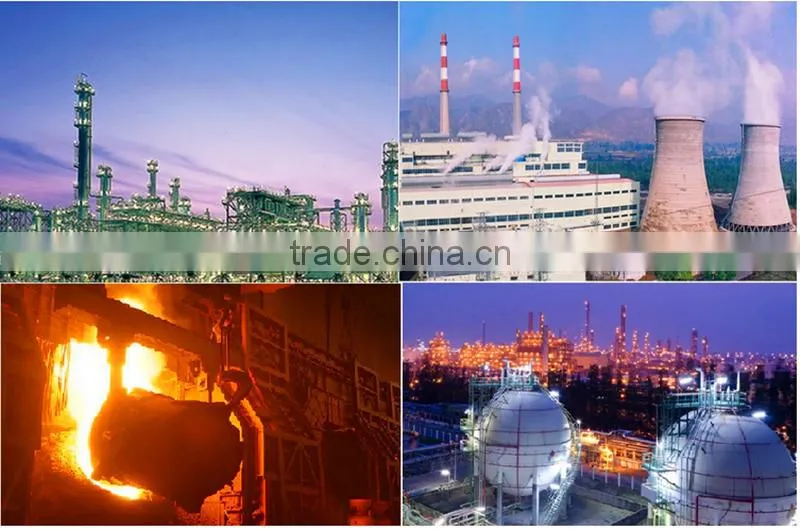

Areas of application:
Low pressure waste steam heat energy recovery
Industrial waste water of waste heat recovery
Geothermal power generation
Heat recovery boiler and furnace exhaust
Diesel engine tail gas and the cylinder cooling water heat recovery
Solar energy utilization
Other temperature is suitable for hot
