Home > Products > Wheelchair Lift For Bus > WL-T Series Wheelchair Elevator Lifting for Tourist Bus

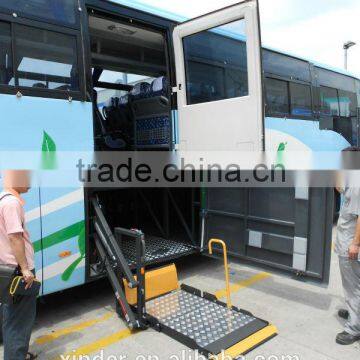

WL-T Series Wheelchair Elevator Lifting for Tourist Bus
- 100 Set / Sets per Month
- shanghai
- T/T Credit Card
You May Like
-
WL-T-1600 Series Electric Rotating Wheelchair Lift for Coach and Tourist Bus
-
XINDER WL-STEP Series Wheelchair Step Lift for Bus
-
WL-T Rotating Wheelchair Platform Lift for Electric scooter
-
WL-STEP Series Wheelchair Lift for the disabled
-
WL-T Series Rotating Wheelchair Lift for Tourist Bus
-
WL-STEP Series Wheelchair Lift for Bus and Coach
Product Details
Design | Other | Type | One Cylinder Hydraulic Lift | |
Certification | Other, ISO9001:2000 | Lifting Capacity | 350kg | |
Lifting Height(mm) | 1000mm | Place of Origin | Jiangsu, China | |
Brand Name | XINDER | Model Number | WL-T-1000G |
Product Description
1. Introduction:
Ø WL-T rotating series wheelchair lift is developed on the basis of our existing WL-UVL series wheelchair lift. It mainly takes the limited luggage space into consideration, save space to adopt rotating device to achieve it.
Ø This wheelchair lift is composed of rotating device, hydraulic raising mechanism, and platform. Rotating device is used to control the rotation of the wheelchair lift. It rotates the wheelchair lift vertical to the door so as to let the passenger in and out and also maintain parallel to the door when the wheelchair is stowed and rotated to the door.
Ø Hydraulic raising device adopt hydro cylinder and USA hydraulic station to achieve the liberation of the arm of the wheelchair lift in vertical, so as to make the lifting device to come to the lifting height of the platform.
Ø There is inboard and outboard roll stop, and the wheelchair is placed on the platform. Make the wheelchair on the platform with front and rear roll stop, and then enter the inside of the vehicle. Meanwhile, the front and rear roll stop can protect the wheelchair when the platform is up and down.
2. Specification
Model | Overall dimension (L*W*H)mm | Platform size (L*W)mm | Rear rollstop (L*W)mm | Max lifting height mm | Application |
WL-T-1600 | 282*1016*1068 | 830*1220 | 816*250 | 1600 | Coach, tourist bus |
WL-T-1000G | 1075*1050*485 | 830*1220 | 816*270 | 1000 | Coach, tourist bus |
After-sales Service
Xinder-Tech warrants the original buyers that Xinder-Tech will repair or replace any part failed due to defective material or workmanship during warranty period. Details are as follows:
- 1. Warranty Period:
- Ø Warranty Period: 12 Month from the delivery date from seller.
- Ø Repair or replace parts failed due to defective material or workmanship during warranty period.
- Ø Repair or replace parts of power units failed due to defective material or workmanship during warranty period.
- Ø The parts can be got from Xinder-Tech Electronics.
- 2. After-sales Service
- Ø If there is some problem happened, please call Xinder Quality Department (0086-519-85139690) or , we will analyse the problem and give solution within 24 hours. If the problem is failed due to defective material or workmanship, we will provide part free for replacement.
- Ø If you need to return some part for repair, please give us advanced notice as possible, and allow reasonable amount of time to repair it.Shipping charges for returning parts to Xinder-Tech shall be the responsibility of the customer. Xinder-Tech will pay shipping charges when returning warrantable parts to the customer. Xinder-Tech will not accept C.O.D. shipments of any returned goods.
- Ø The warranty does not cover: Malfunction or damage to parts caused by accident, misuse, lack of proper maintenance, improper adjustment, alteration, mechanical of vehicle, hazards, overloading, failure to follow operating instruction, or acts of nature (i.e. weather, lightning, and flood).
- Ø Xinder's obligation under this warranty is exclusively limited to the repair or exchange of parts that fail within the applicable warranty period.
- Ø Xinder-Tech assumes no responsibility for expenses or damages, including incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply.
- 3. Note and Warning
- Ø Xinder-Tech recommends that this product should be inspect very six months, and it is batter to do some maintenance if necessary at that time. Details of maintenance can be seen in User Manual.
- Ø This lift has been designed and manufactured to exact specification. It is hazardous to make any modification.
- Ø The warranty is void if: Modification to any parts of this lift is not authorized by Xinder-Tech. Moreover, it is dangerous.
- Ø Xinder-Tech has no responsibility for any personal injury or property damage due to the operation of lifts that has been modified from our original design. No one or company should alter lift without written authorized by Xinder-Tech.
