silicon steel ei lamination transformer core cutting machine
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Omax Maxiem Pump Minor Maint 302700 Retainer Man 301873 301353 Ring Seal 303274 Major Maintenance Kit
- Dual Port Swivels Seal Replacement Kit 308616 Package for Omax 308620-1 2 3
- 60KPSI SL-IV SL-V WK000216 05007786 Bushing Retainer Flange for KMT Water Jet Cutting
- Waterjet Spare Parts 90K WK000190 189 20468617 20475871 Pneumatic Dump Valve
- 1-14493 UHP 90 degree 1/4 in. 94k Waterjet Repair Kit 015093-1 Swivel Rebuild Kit for Water Jet Cutt
- Hydraulic Waste Car Body Shell Gantry Shear Machine for Scrap Recycling Center
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Jisheng |
Model Number: | HJX series | Voltage: | 380V, 380/220V, 3phase (or as per required) | Rated Power: | upon actual model, 28kW |
Dimension(L*W*H): | upon actual model | Weight: | upon actual model | Certification: | ISO9001,CE |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
china cheap silicon steel ei lamination transformer core cutting machine
Brief introduction:

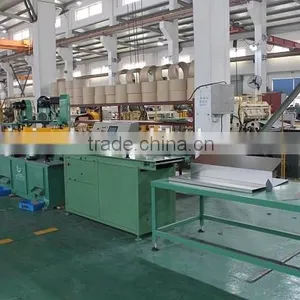

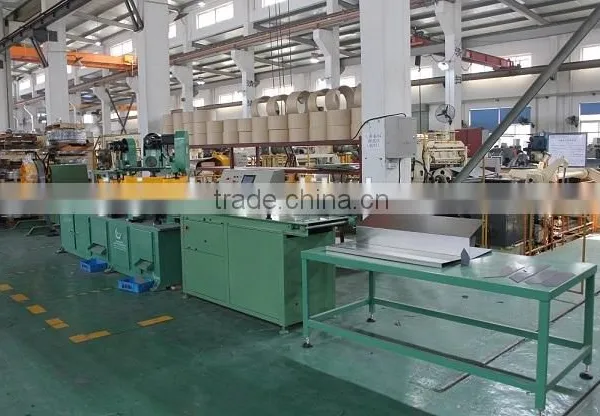

silicon steel ei lamination transformer core cutting machine is specially designed for cutting silicon steel coils into lamination strips for transformer cores.It adopts swing shear cutting device which is similar to Georg swing shear cutting machine.,this machine is a very small machine, main body is only about 2.2m long, including centering, notching, punching and cutting,combining V-notching, hole-punching and mitre cutting together, high automation, high efficiency. Usually one 8-hour shift can cut 1 ton lamination strips.This transformer core cut to length machine adopts Delta PLC, touch screen (HMI), inverter, servo motor and drive, high precision, good after-sale service,special carbide alloy for cutting blade and notching blade and punching tools,Life can be more than 2,000,000 times before grinding and more than 20 times grinds.
Main features:
silicon steel ei lamination transformer core cutting machine:
1) Delta AC servo system plus Delta PLC professional module achieve high precision feeding, quick response, high precision positioning, low noise; Max. feeding speed 100m/min, starting & braking time is less than 10ms.
2) Full automatic finishing cutting, swinging angle, counting, cutting right angle, trapezoid, parallelogram, fish-head, etc.
3) Equipped with online punching & V notching device, high productivity
4) Cutting, punching and notching motors are inverter control, quick and low noise
5) Screw rod center positioning, driven by step motor, automatic positioning
6) Cutting blade, notching tool and punching tool are made by special ceramic alloy from Germany, long life, less burr
7) Step-lap function, max.7 steps
8)Automatic stacking device, no error on separating different kind of lamination strips, especially step-lap cut strips.
Technical Parameters:
Item | specification | ||||
HJ-300 | HJ-400 | HJ-600 | HJ-900 | ||
Shearing width | 30-340mm | 40-440 | 60-640mm | 70-920mm | |
Shearing length | 250-1500 | 350-2500 | 400-3500 | 400-5000 | |
Shearing thickness | 0.23-0.35mm,0.35-0.5mm | ||||
Shearing length precision | ≤±0.2mm/2m | ||||
Shearing burr | ≤0.02mm | ||||
Shearing angle precision | ±0.025° | ||||
Feeding speed | 0-240m/min | ||||
Every shearing time | ≤200 ms/time | ||||
shearing knife life | 1.2 million times/milling | ||||
Punching/notching die | Carbide alloy | ||||
Cutting blade | Carbide alloy | ||||
Max. step-lap stroke | 40mm | ||||
Step-lap quantities | 1,2,3,4,5,6,7, | ||||
Positioning mode | Center positioning | ||||
human machine interface | 10.4 inch touch screen | ||||
Installed capacity | 15kw | 20Kw | 30kw | 35kw | |
Rated capacity | 12kw | 14kw | 16kw | 18kw | |
Dimension(LxWxH) | 10×4×1.8m | 15×5×2m | 18×6×2.5m | 22×6×2.5m |
Main Component:
silicon steel ei lamination transformer core cutting machine:
1.double-end uncoiler
2.slope feeding device
3.feeding device
4.punching section
5.shearing section
6. out-feeding table
7. depiler & planish device
8. skipping car
9. Fully width adjusting system
10.pneumatic system
11.Electrical control and operation platform
Function and sample:
Certificates:
Sales Network:
Contact Detail:
Eric Cha
Tel:+86-531-88773434
Mobile:+86-13046001147
eric5161 at
Skype:chatong0531
whatsapp: +86-13046001147
Contact Us
