Fish Farm Pond liner manufacture fish Pond liner
Pond liner Description

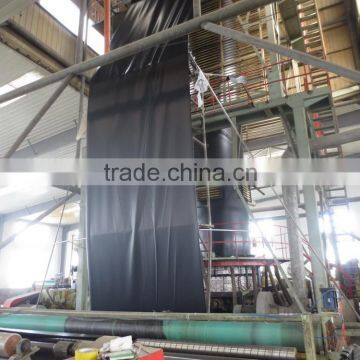

HDPE geomembrane are made from High density polyethylene polymer by bolw film
process . Having Smooth surface , Textured surface , Anti-Skid suface
Main Function
Antiseepage and seperation
Property
1. Good flexibility
2. For service temperature range : -70℃ ~ +110℃
3. Corrosion resistance , aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Pond liners Specification
No. | Item | Test Value | ||||||
0.75mm | 1.0 mm | 1.25 mm | 1.5 mm | 2.0 mm | 2.5 mm | 3.0mm | ||
1 | Minimum Density(g/cm³) | 0.939 | ||||||
2
| Tensile Property | |||||||
Strength at yield,N/mm | 11 | 15 | 18 | 22 | 29 | 37 | 44 | |
Strength at break ,N/mm | 20 | 27 | 33 | 40 | 53 | 67 | 80 | |
Elongation at yield,% | 12 | |||||||
Elongation at break,% | 700 | |||||||
3 | Tear Resistance N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
4 | Puncture Resistance N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
5 | Stress Crack Resistance, hrs | 300 | ||||||
6 | Carbon Black Content, % | 2.0-3.0 | ||||||
Carbon Black Dispersion | 1 or 2 | |||||||
7 | Standard OTI Min | 100 | ||||||
High Pressure OTI Min | 400 | |||||||
8 | Impact Cold Crack at -70°C | Pass | ||||||
9 | Water vapor permeability (g.cm/cm2 .s.Pa) | ≤1.0×10-13 | ||||||
10 | Dimensional Stability (%) | ±2 | ||||||
Geomembrane for Landfill Loading Qty
Thickness | Width | Diameter | 40’Container Qiantuty |
0.5mm | 5.8m x 100m | 30cm | 80rolls , Total 46400m2 |
1.0mm | 5.8m x 50m | 30cm | 80rolls , Total 23200m2 |
1.5mm | 5.8m x 50m | 35cm | 54rolls , Total 15660m2 |
2.0mm | 5.8m x 50m | 40cm | 40rolls , Total 11600m2 |
2.5mm | 5.8m x 50m | 45cm | 32rolls , Total 9280m2 |
3.0mm | 5.8m x 30m | 45cm | 44rolls , Total 7565m2 |
