Home > Products > Drilling machine > Down-the-hole drilling machine and Borehole drilling machine
Down-the-hole drilling machine and Borehole drilling machine
Negotiable
/ Set
1 Set(Min.Order)
- 6000 Unit / Units per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Electric |
| Place of Origin: | Zhejiang, China | Brand Name: | Kaishan | Model Number: | KQD70B |
| Usage: | Ore | Voltage: | 380V | Power(W): | 3kw |
| Certification: | ISO | Warranty: | 1year | After-sales Service Provided: | No overseas service provided |
Product Description

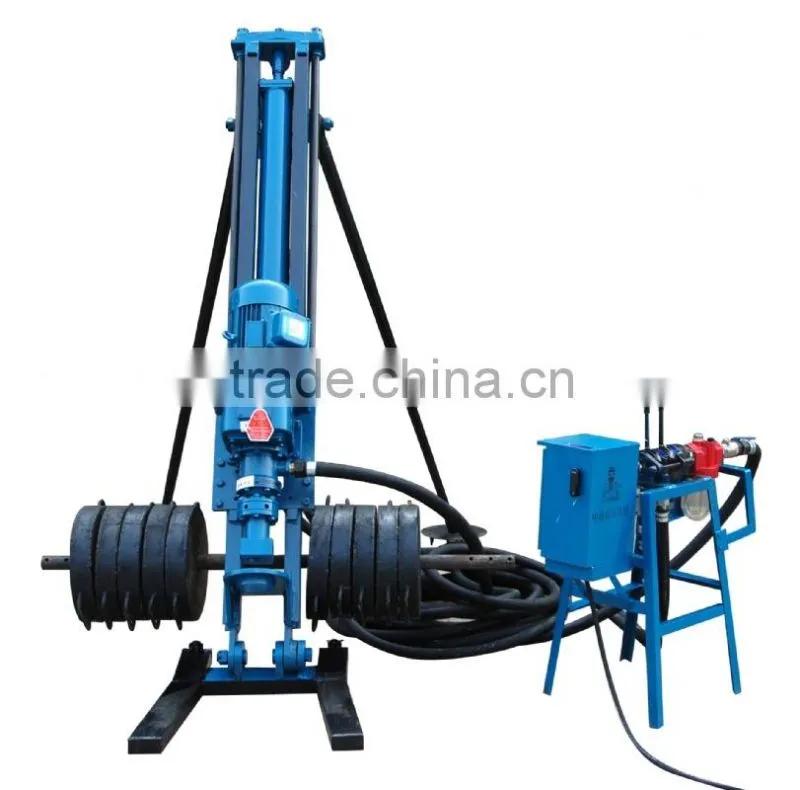

Down-the-hole drilling machine and Borehole drilling machine
.Using the electrical motor as rotating force, economy, efficiency, energy saving.
. Using Spur gear reducer , big rotary torque, high drilling efficiency.
. Novel overload protection, so that rig can have stable and reliable operation.
Specifications of drilling machine
Hole dia.(mm) | 60-80 |
Hole depth(m) | ≥15 |
Rotation speed(rpm) | 0-125 |
Working pressure(MPa) | 0.5~0.7 |
Drill rod spec.(mm) | 40x1000 |
Air consumption(m^3/min) | ≥3.5 |
Lift power(N) | 4000 |
Electrical motor | (3KW) |
Specification of screw compressor
Working pressure(MPa) | 0.6 |
Air delivery (m3/min.) | 4.5 |
Electrical motor power (kw) | 22 |
Dimensions (L*W*H) (mm) | 1600*820*1200 |
Weight (kg) | 630 |

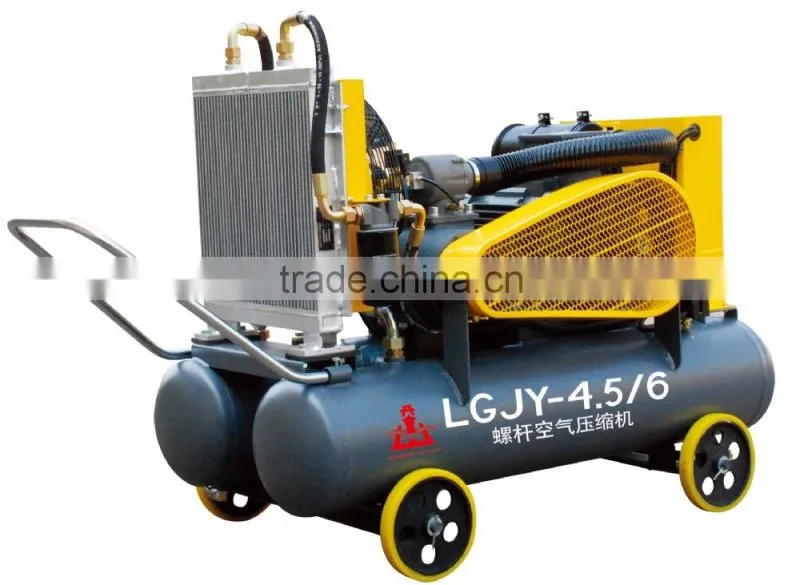

It is powered by LGJY4.5/6 mobile screw compressor. Here are the photos for reference.
