Welcome to SHAANXI KAISHAN EQUIPMENT CO.,LTD.
Best quality goods, lowest price, perfect service.
Cooperation terms:
1. Price: FOB any port in china.
2. Minimum order: 1set.
3. Payment: T/T, L/C, O/A ect.
4. Shipping: 15-20days.

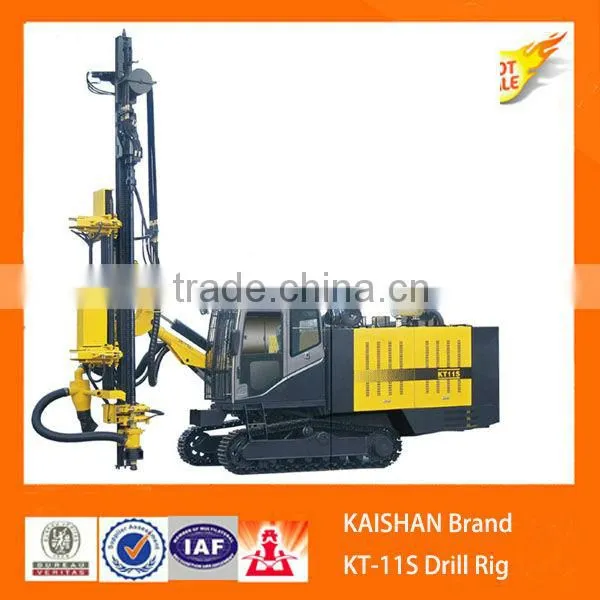

KaiShan KT11S Crawler High pressure portable drill machine
• Kaishan brand KT11S type integral type high pressure surface DTH Drill truck with a power to drive hydraulic system and high pressure screw compression system, compact structure, high energy utilization rate, with automatic loading and unloading rod, the cab air conditioner, dry dust collection module.
• Umbo has good integrity, environmental protection and energy saving, high degree of
automation,convenient operation, good effect of drilling, flexible, safe driving characteristics.
KT11S Specifaication | |||
Rock Hardness |
f=6-20 |
Carriage pitch angle |
114° |
Hole diameter (mm) |
105-125 |
Carriage swing angle |
R36°L35° |
Drill Depth(m) |
18 |
Sliding frame lateral swing angle |
R12°~93° |
Walking speed(Km/h) |
0-2.2 |
Drill arm swing angle |
R45°L5° |
Climing capacity |
20° |
Frame leveing angle |
UP10° Down8° |
Ground clearance(mm) |
430 |
advacing srroke mm |
3000 |
Power(Kw) |
239 |
compreation length mm |
1200 |
Diesel |
6LTAA8.9-C325 |
Drill rod |
φ76x3000mm |
|
Screw machine exhaust aolume(m³/min) |
18 |
Dust collecting mode |
Dry |
|
Screw machina exhaust pressure(bar) |
17 |
Collecting rod |
Atomatic loading and unloading mode |
Dimension(mm) |
9300x2580x3000 |
Atomatic protection card |
Electro-hydraulic control card |
Weight(Kg) |
14600 |
Drill pipe lubrication |
Atomatic lubrication |
Rotating speed (r/min) |
0-63 |
Drill pipe thread protection |
With the floating joint protection drill pipe thread |
Rotary torque N*m |
2800 |
Drilling angle indicator |
Two dimensional electron angle indicator |
Our Company:
1. Shanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a
Beautiful ancient City - Xi'an. Since founded more than 10 years ago, our
company has accumulated much experience in the business of air compressors
and drilling rig machines
2. National Free-inspection Product,Have passed ISO9001 certification.
3. Good Service, competitive price, high quality, fast shipping and perfect after
sale service.
Welcome to visit our factory and would like to start the cooperation with you in the near future.
