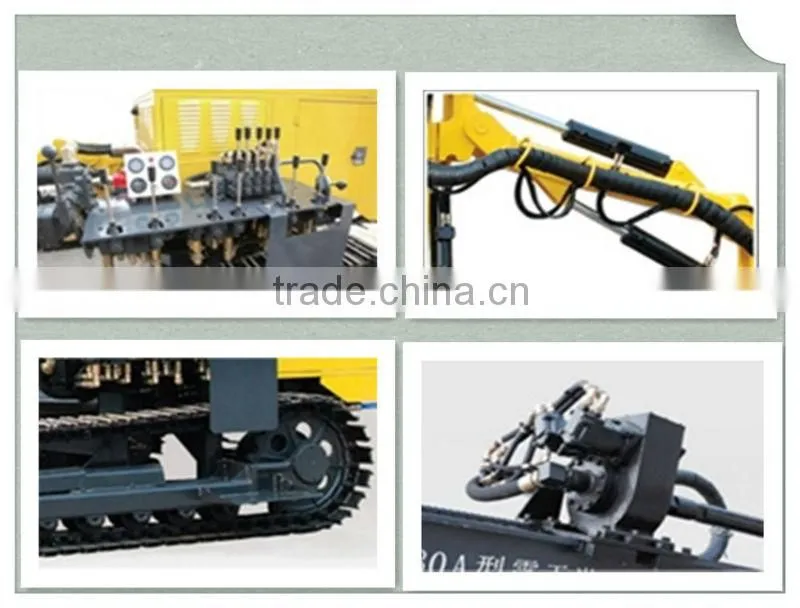

Help CenterKaiShan KG930A Down the Hole Drilling Machine Hydraulic Drill Rigs
Related Products
-
KaiShan KG930B Crawler Drilling RigsUS$ 10,500 - 56,000MOQ: 1 Set -
KaiShan KG930B Borehole Drilling RigUS$ 10,500 - 56,000MOQ: 1 Set
-
KaiShan KG930B Oil Drilling RigUS$ 10,500 - 56,000MOQ: 1 Set
-
KaiShan KG930B Drilling Rig TongsUS$ 10,500 - 56,000MOQ: 1 Set
-
KaiShan KG930B Mud Pump for Drilling RigUS$ 10,500 - 56,000MOQ: 1 Set
Welcome to SHAANXI KAISHAN EQUIPMENT CO.,LTD.
Best quality goods, lowest price, perfect service.
Cooperation terms:
1.Price: FOB any port in china.
2. Minimum order: 1set.
3. Payment: T/T, L/C, O/A ect.
4. Shipping: 25-30days.
KaiShan KG930A Rotary Crawler Mobile Drilling Rig for Sale
1.ISO9001;2000 Quality Certificate
2.GC Certificate
3.The biggest manufacture in mainland
4.European design
5.National inspection-free with reliable quality and perfect after-sale service.
Advantage:
1. Drilling angle is more reasonable
2. The cycloid motor rotary device, high speed,long life.
Rock rigidity |
F=6-20 |
Diameter of hole |
Φ80-115mm |
Optium drilling depth |
25m |
Rotation speed |
120r/min |
Rotation torque |
17000N |
Feed way |
oil cylinder-chain |
Feed distance |
3000mm |
Walk speed |
0-2.0Km/h |
gradeability |
30° |
Ground clearance |
320mm |
Weight |
6000kg |
shape |
5355*2215*2365 |
Sliding carriage pitch angle |
Blow 135°,elevation5°, total 145° |
Sliding carriage swing angle |
Left100°,right45°,total 145° |
Drill boom pitch angle |
Blow 50°,elevation25°, total 75° |
Drill boom pitch swing angle |
Left45°, right90°, total 135° |
Sliding carriage suppling length |
1200mm |
power |
YC4D80(58Kw 2400r/min) |
Drill pipe |
Φ76 |
Working air pressure |
1.0-2.4Mpa |
Air consumption |
9-18 m³/min |
KG930A compare with KY130
KG930A |
KY130 |
remark |
|
Power |
YC4D80 |
QC498 |
Reduce horsepower pressure, improve its life |
Drill boom parts |
New type drill boom |
Drill level ,vertical hole for one fulcrum. Lower level hole |
|
Hydraulic system |
large valve,new flow divider and connect |
Smaller resistance and more tidy shape |
|
Sliding carrier parts |
Thick and stronger sliding carrier, and lower friction platen |
Rude steel sliding carrier |
Stronger steel and lower friction |
Oil pump |
32 |
28.2 |
Increase flow |
Rotation speed |
90r/min(diesel 1700r/min) 120r/min(diesel2200r/min) |
60r/min(1700) |
Improve 50% |
Feeding speed |
580mm/s |
530mm/s |
Improve 10% |
The matching KaiShan Air compressor: LGCY19.5/19
Mode |
Capacity |
Working Pressure |
Diesel Engine |
Dimension |
LGCY-18/17 |
19.5 |
1.9 |
6CTA8.3-C260 |
3980×1800×2650 |
Our Company:
1. Shanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a
Beautiful ancient City - Xi'an. Since founded more than 10 years ago, our
company has accumulated much experience in the business of air compressors
and drilling rig machines
2. National Free-inspection Product,Have passed ISO9001 certification.
3. Good Service, competitive price, high quality, fast shipping and perfect after
sale service.
Welcome to visit our factory and would like to start the cooperation with you in the near future.
If you have any questions and comments, please contact me freely!thank you very much.
