Welcome to SHAANXI KAISHAN EQUIPMENT CO.,LTD.
Best quality goods, lowest price, perfect service.
Cooperation terms:
1.Price: FOB any port in china.
2. Minimum order: 1set.
3. Payment: T/T, L/C, O/A ect.
4. Shipping: 25-30days.

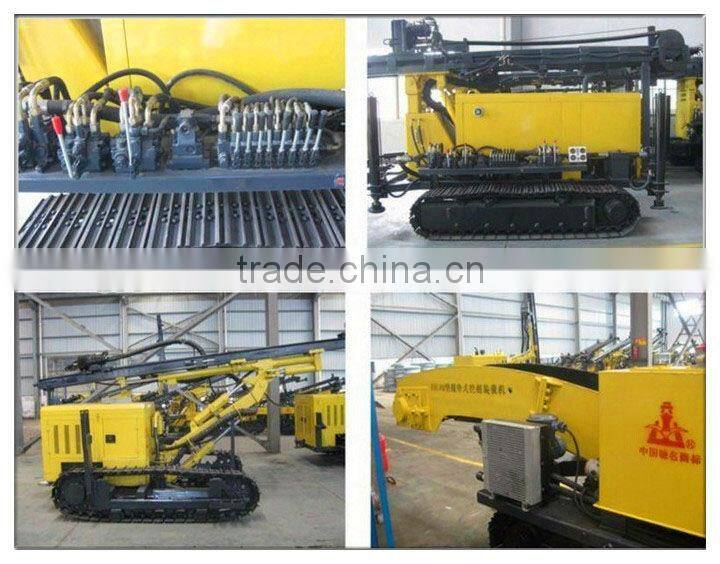

Kaishan KC120 crawler horizontal drilling rig machine
1. Reliable repair of hydraulic pump group.
2. A strong forward, slewing mechanism.
A: To promote the turbine reducer. Worm drive, push and pull, Could self-locking.
B: Rotary reducer adopts gear transmission, low speed, large torque, and convenient
maintenance.
3. Operating mechanism of centralized control.
A: Rig design and gas path system advanced hydraulic system, all the movements are
centralized control, convenient operation.
B: Operating hydraulic control valve, can realize lifting, swinging and drill frame pitch,
forward boom (back) and the equality function track. Ensure the all-round hammer drill
hole and drill vehicle stability.
C: The operation of the pneumatic control valve, can realize the pump is opened and drill
vehicle propulsion (upgrade), rotary, shock and other functions, to ensure the high efficiency
drilling rig.
4 The walking mechanism of security and stability
A: Low center of gravity, ground clearance, can easily through the rugged road.
B: Advanced track automatic leveling function, not only make the drill vehicle running
smoothly, and greatly reduces the impact force of drill in the face of the car, thus ensuring
driving safety.
KC120 Specification | |||
Rock hardness |
f=6~20 |
Hole diameter(mm) |
105~120 |
Drill Depth(m) |
25 |
work pressure(MPa) |
1.0~1.5 |
Gas consumption(m³/min) |
≥21 |
Rotary speed(rpm) |
0~67 |
Build up (KN) |
13.6 |
Rill Rod(mm) |
76x3000 |
Climing capcacity |
30° |
Ground clearance(mm) |
254 |
Walking speed (Km/h) |
2.5 |
Drill arm lift angle |
-19°~+60° |
Drill rig swing angle |
±45° |
Carriage swing angle |
-35°~+50° |
Carriage pith angle |
180° |
Track adjustment |
±7° |

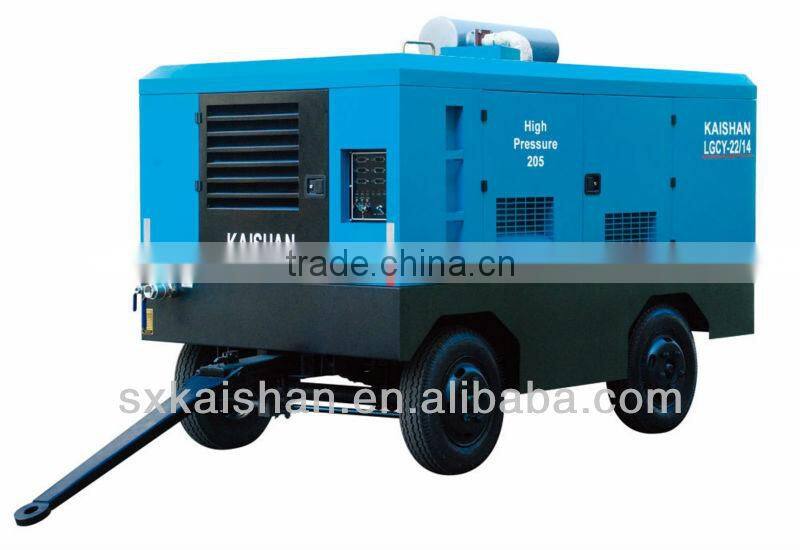

Auxiliary Power: KaiShan LGCY22/14 Diesel mobile screw air compressor
Model |
Capacity |
Working Pressure |
Diesel Engine |
Dimension |
LGCY-22/14 |
22 |
1.4 |
YC6M340L-K20 |
4580×1950×2600 |
Our Company:
1. Shanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a
Beautiful ancient City - Xi'an. Since founded more than 10 years ago, our
company has accumulated much experience in the business of air compressors
and drilling rig machines
2. National Free-inspection Product,Have passed ISO9001 certification.
3. Good Service, competitive price, high quality, fast shipping and perfect after
sale service.
Welcome to visit our factory and would like to start the cooperation with you in the near future.
