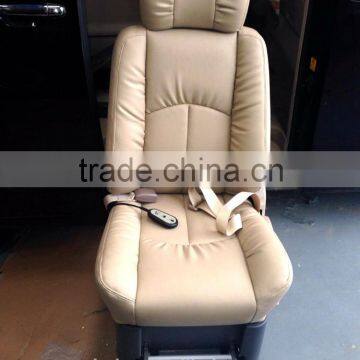

S-LIFT Lifting Seat

1. Introduction

S-LIFT Series turning seat is a kind of equipment to make easy entrance of cars, buses, taxi, ambulance and etc. It can work stable, reliable and safe. Loading capacity can be 120KG.

It is operated by remote control. Turning seat can stop at any position you want by press keys on the remote control.

² Description

• Ø This seat makes easy entrance of cars, buses, taxi, ambulance and etc.
• Ø Easy operation and reliable function;
• Ø It is operated by driver or user;
• Ø Working voltage can be 12V or 24V;
• Ø Water-proof connectors;
  • Ø There is warning sound during working;
  • Ø Working noise is less than 70dB;
  • Ø Every turning seat has SN which is for track and make after-sales easy;

² Installation

• Ø Wholly assembled and easy installation
• Ø At the front seat or middle seat of MPV
• Ø Put seat 50mm near door, and distance between seat front end and door sheet should be over 280mm

² Application

• Ø MPV, van, minivan, SUV;
• Ø Handicapped car;
• Ø Ambulance;

1. Technical Infomation

UNIT: mm

2. Technical Function

• Ø Volt: 12-24V
• Ø Generally, max electricity is 12A (during extending and stowing)
• Ø Time for turing:5s
• Ø Time for moving forward: 14s
• Ø Time for lowering down: 30s
• Ø Time for lifting: 50s
• Ø Time for moving backward: 14s;
• Ø Testing weight: 150kg;
• Ø Safety grade: IP67;
• Ø Safety loading capacity: 120kg;
• Ø Noise: less than 70dB;
• Ø Rotating angle: 0-120°
• Ø Own weight: 68 KG
• Ø Operation: remote control or operating switch

3. Safety Function

• Ø Surface of seat step is anti-skip;
• Ø There is warning sound during seat working;
• Ø During seat working, if there is some barrier, press any key, working will stop; press key again, working will start again;
• Ø This turning seat has high sensibility;

4. Installation Room Request

Unit: mm

5. Operation

This turning seat is operated by remote control.

Press “DOWN”: seat will first move forwarder 270mm, turning 90°; second extend out of car, and then lower down.

Press “UP” to stow seat inside of car.

Our factory :

Our service :

1)- One year warranty for whole products

2)- Providing free quick-wear part.

3)- Low charge for continue maintenance when warranty is expired.

4)- Exclusive engineer support at any time.

5)- We can provide free training to end-users

6)- 24hours online services

FAQ :

1. What's the delivery time?
In 2  working days after we receive the order
2. What kind of payments do you support?
T/T, L/C,  West Union, Paypal and other ways .
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ. More quantity, with better price.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size, also we give support of OEM ,  and can paste agent's label on the products .

5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
