2015 New Design Rotating Passenger Seat for the Disabled and Old
Negotiable
/ Set
1 Set(Min. Order)
- shanghai
- Money Gram Credit Card
You May Like
-
Turning Seat for the Disable and Old
-
Swivel Mobility Car Seat for Handicapped Car for Disabled
-
Load120 KG Swivel Car Seat for Disabled Install in Copilot's Position
-
Xinder Tech S-lift Series Swivel Car Seat for the Disable and Old People
-
Special Swivel Car Seat for Car 120 Turning Angle for the Handicapped and Wheelchair User
-
2015 New Design Swivel Car Seat for the Disabled and Old
Product Details
| Type | General Seat | Material | Other, steel | |
| Size | 490*505*108 (L*W*H), 490*505*108mm | Place of Origin | Jiangsu, China | |
| Brand Name | xinder | Model Number | S-OUT |
Product Description

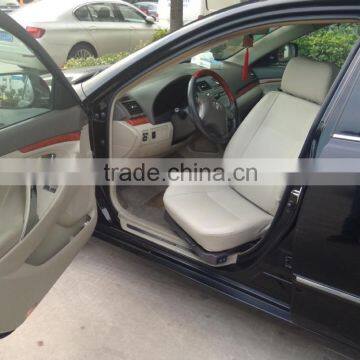

S-OUT Turning Seat
INTRODUCTION:
- S-OUT turning seat is installed in car. Working principle is to turn seat 0-97°automatically to help the disabled get in/out of car easily.
- This equipment can be operated by user himself. By using switch, this equipment can be turn out of /into car automatically.
- There is a motor and chain to achieve the turning. There is cardan rod to make seat moving forward and backward.
- User can consider using our chair topper together with this equipment.
- This turning seat can be used for driver’s position or copilot’s position.
FUNCTION:
- Turn seat out of / into car.
APPLICATION:
- Can be installed in car, SUV, minivan and etc. it is used for the disabled or the old.
INSTALLATION:
- Be sure there is enough space for seat turning. Distance from turning center should not less than 526mm.
- Distance of mounting surface to doorsill should not less than 60mm;
- Size between seat and vehicle door should not less than 50mm;
OPERATION:
- Using switch to turn the seat in/out of car
TECHNICAL SPECIFICATIONS
Model
Dimension
(L*W*H mm)
Turning
Angle
Own Weight
Loading Capacity
Time for one cycle
operation
Volt
S-OUT
490*505*108
0-97°
28.5Kg
≤150Kg
6.5 S
Switch
12-24V
