Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Press Switch for Potentiometers

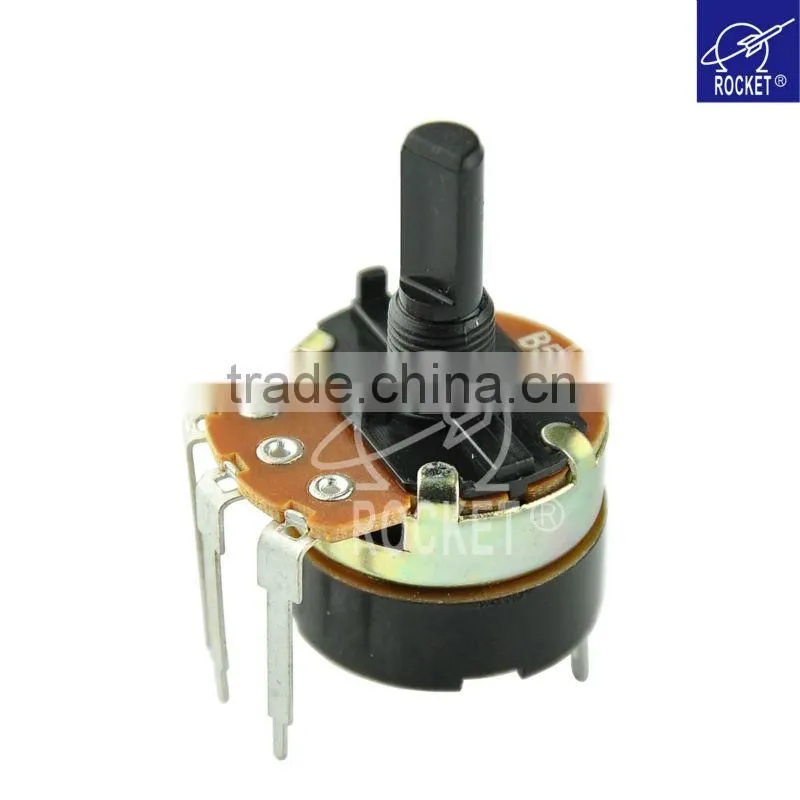

Press Switch for Potentiometers
US$ 0.02 - 0.99
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Rocket
Model Number:
WH138-1AK-3
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Potentiometers for Clap SwitchUS$ 0.02 - 0.99MOQ: 1000 Pieces -
Rotary Potentiometer B50k PotentiometerUS$ 0.01 - 1MOQ: 1000 Pieces
-
Rotary Carbon Composition Potentiometer for Wholesale Guitar PartsUS$ 0.01 - 1MOQ: 1000 Perches
-
Potentiometer With SwitchUS$ 0.01 - 1MOQ: 1000 Pieces
-
Electronics Potentiometer PartsUS$ 0.01 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Rocket
Model Number
WH138-1AK-3
Type
Other, Rotary carbon switch potentiometer
Technology
Carbon Film
Resistance
5KΩ--2MΩ
Resistance Tolerance
±20%
Rated Power
Taper A:0.05W,B/C:0.25W
Max. Operating Voltage
DC 500V
Operating Temperature
75°C
Specifications
1)press switch for potentiometers2)Plastic shaft
3)Panel mounting
4)Carbon seriflux from Japan
5)Swith potentiomenters
Ningbo Huayu Electronics Co.,LTD
-
Rated power A:0.5W other :0.25W( 50°C) ing voltage DC 500V Resistance range & tolerance 5kΩ --2MΩ ±20% Resistance tape A. B . C. End resistance 50Ω max Rotational noise ≤ 47mV Switch operating angle 50°±10° Rotation torque 2--20mN.m Total mechanical travel 300°±10° Mechanical life 10000cycles Switch contact resistance AC 125V 1A.4A.6A Switch operating torque 15-45mN.m
Item No.: WH138-1AK-3 press switch for potentiometers
|
