Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Potentiometers Vav

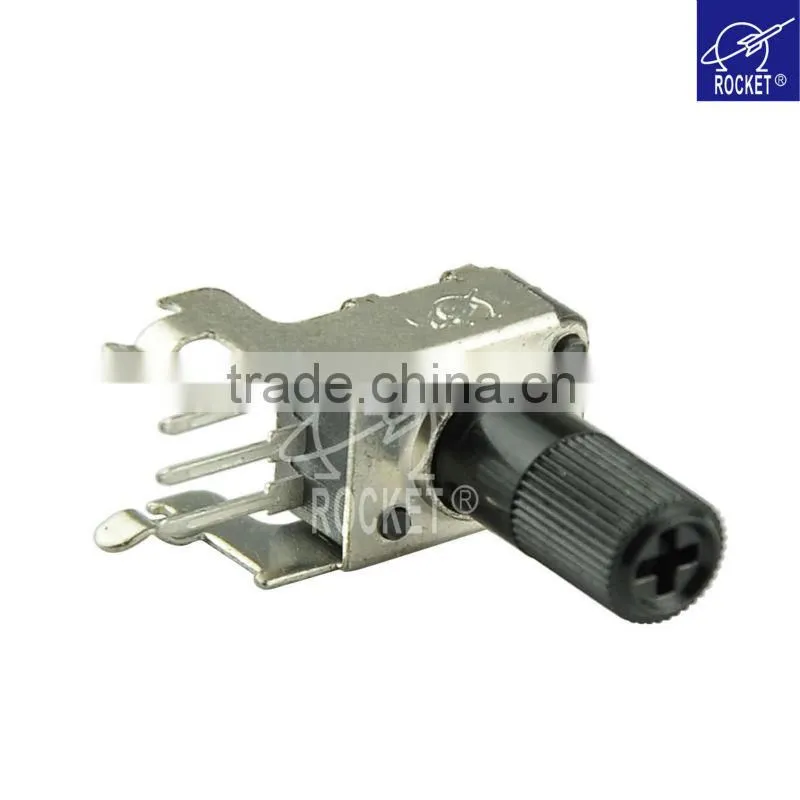

Potentiometers Vav
US$ 0.02 - 0.99
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Rocket
Model Number:
Wh09A-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Potentiometer With DialUS$ 0.02 - 0.99MOQ: 1000 Pieces -
Rotary Carbon Composition 50k PotentiometerUS$ 0.02 - 0.99MOQ: 1000 Pieces
-
Rotary Potentiometer 100kUS$ 0.01 - 1MOQ: 1000 Pieces
-
Electronics Potentiometer PartsUS$ 0.01 - 1MOQ: 1000 Pieces
-
Rotary 10mm PotentiometerUS$ 0.1 - 0.99MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Rocket
Model Number
Wh09A-1
Type
Rotary Potentiometer
Technology
Carbon Film
Resistance
500Ω--1MΩ
Resistance Tolerance
±20%,±10%
Rated Power
0.05W
Max. Operating Voltage
DC 50V
Operating Temperature
75°C
Specifications
1)Potentiometers vav2)Plastic shaft
3)PCB mounting
4)Carbon seriflux from Japan
5)Potentiometers manufacturer since1967
Ningbo Huayu Electronics Co.,LTD
| Rated power | A:0.05W |
| ing voltage | DC 50V |
| Resistance range & tolerance | 500Ω --1MΩ ±20% |
| Resistance tape | A. B . C. |
| End resistance | R≤50KΩ 20 Ω max / R≥50KΩ Max 50Ω |
| Rotational noise | ≤ 47mV |

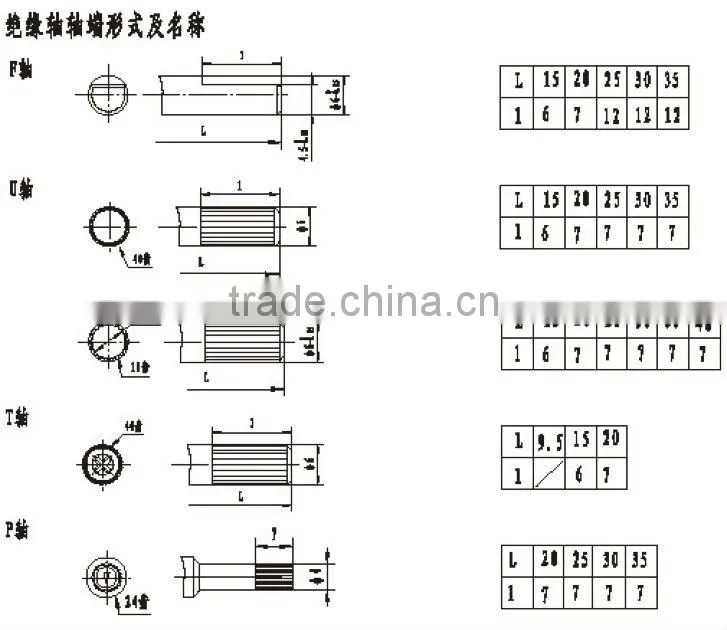

| Shaft material | plastic shaft |
| Rotation torque | 1--8mN.m |
| Total mechanical travel | 280°±10° |
| Mechanical life | 10000cycles |
Item No.: Wh09A-1 Potentiometers vav
