Specifications
1)1k ohm potentiometer2)Panel mounting
3)composition potentiometer
4)knobs for potentiometer
5)Brand name:rocket
Potentiometer Expert since year 1967!
Company tenent: "What customer needs is our pursuit!"
Company aim: Pursue technology innovation, create green and intelligent life.
Full inspection:
1) This guarantee does not cover damage due to misuse, abuse, neglect of alteration .
Caution:
1.Use of chemicals:Synthetic resins such as polycarbonate are used in the potentiometer.therefore,care must be taken not expose the resistor to thick atmosphere of ammonia,amins ,alkali solution,aromatic hydrocarbon,ketenes,esters,halogeneous hydrocarbon,ketenes esters,halogeneous hydrocarbons,ets.
2.When soldering ,avoid using water-soluble flux,othrewise,itmight cause and adverse effect on molding material and metal.
3.Although electric poles of resistors are generally formed by silver printing,we provide carbon coating over the silver poles to enhance reliablility against ntact us if you wish to use the part in a low residual resistance state.
Product Type & Condition :
1. Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated . So,please consult the stock situation when you inquire.
Buyer Reading:
1. Please confirm receipt of products if the items you received , and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution .
2. We only guarantee Delivery in time but we couldn't control the express delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the express company in your company.

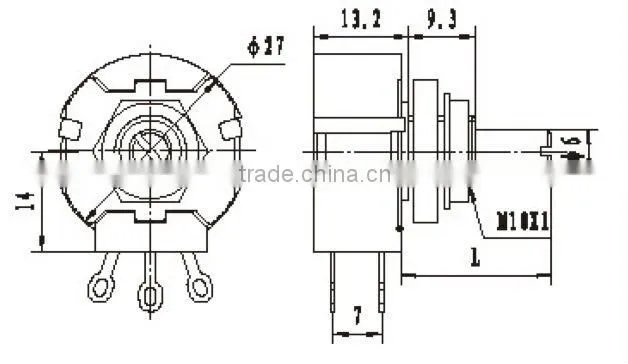

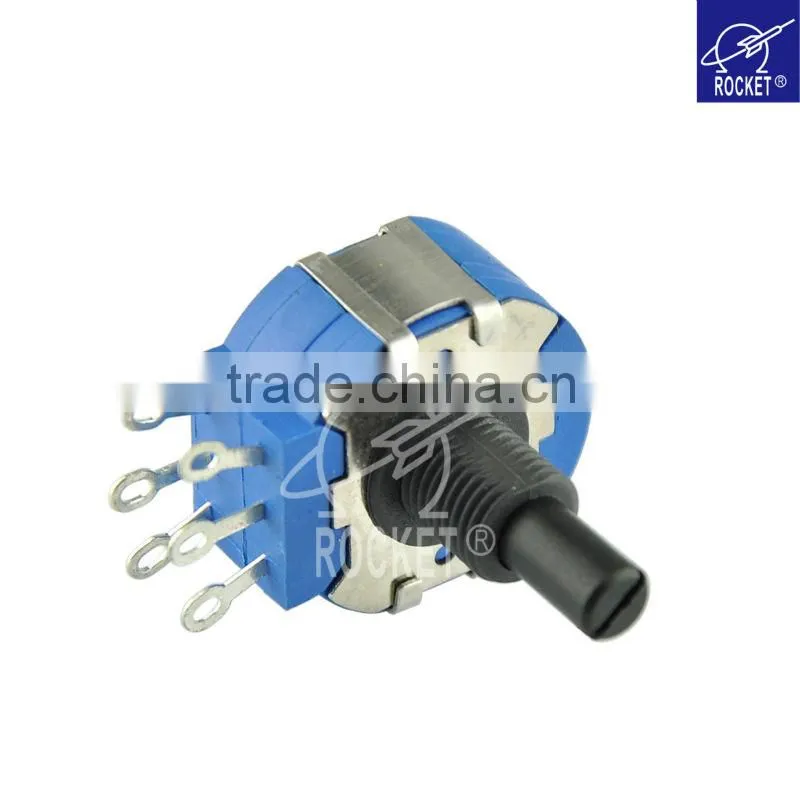

Item No.: RV28GP1 1k ohm potentiometer
Feature
1)Flux builded-up prevention is taken through inserting molding around the resistor with resin.
2)A large variety of products lined up to support various applications.
3)Miniature design for Audio applications.
4)Long life type available
Electrical characteristics
Total rotation angle :260°
Operating force :20-200gf.cm
Shaft stop strength :3kgf.cm/min
Switch working angle/stroke: 30 ±10°
Switch working torque /force:50-300gf.cm
Rated dissipation:0.125w 0.06w
Rated voltage :200V 150V
Insulation resistance :DC500V 500M Ω
Voltage proof:AC500V,1minute
Switch contact resistance:less than 20m Ω
Switch ratings:12VDC 1A
Mechanical endurance :10000cycles
Switch life:10000times
Resistance taper:A /B/ C
| Rated power | A:0.5W ( 50°C) |
| ing voltage | DC 500V |
| Resistance range & tolerance | 100Ω --2MΩ ±20% |
| Resistance tape | A. B . C. |
| End resistance | 20 Ω max |
| Rotational noise | ≤ 47mV |
| potentiometers | can be making spacer ,screw |
| Rotation torque | 2-20mN.m |
| Total mechanical travel | 260°±10° |
| Mechanical life | 10000cycles |
| potentiometers | can be making knob |
| Brand name | rocket |
|
