Hall effect current transducer module: RCB52BR-25

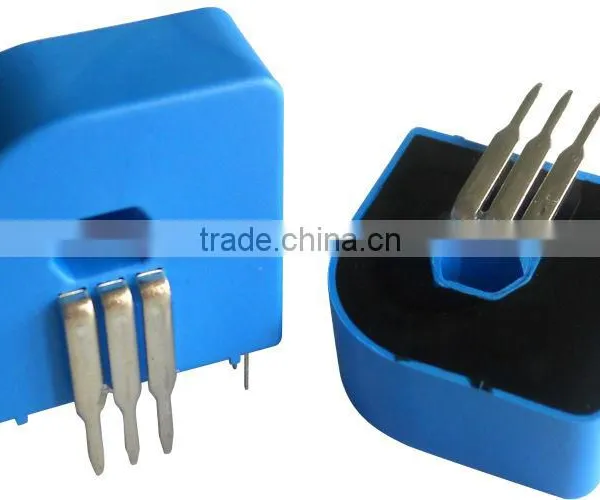

Picture of the product
Profile:
Closed loop Hall effect current transducer RCB52BR-25 is for the real-time precision measurement:
DC, AC, pulse and irregular wave currents with galvanic isolation between the primary circuit and the secondary circuit.
Performance parameters
Electric parameters |
Features 1. Magnetic balance ( Hall effect closed loop) 2. According to UL 94-V0 3. According to RoHS and CE 4. Flexible assembly 5. Single power supply
Superiorities 1. Excellent accuracy, very good linearity 2. Low thermal drift 3. Wide bandwidth 4. Fast response 5. High immunity to external interference 6. Good overload capability 7. Low inductance
Applications 1. VF speed regulating device 2. SMPS 3. UPS 4. Converter device 5. Industry( welding machine, textile machine,etc.) 6. Photovoltaic, solar power protection 7. Wind power |
||||
Ipn |
Nominal RMS current |
25A |
|||
Ip |
Measuring range |
80A |
|||
Vsn |
Output voltage @ Ipn |
VRef±0.625V |
|||
Rm |
Load resistance Rmax |
≥10kΩ |
|||
Vc |
Supply voltage |
5V |
|||
Ic |
Current consumption |
25mA+output current |
|||
Vd |
Withstand voltage |
3kVrms/50Hz/min |
|||
Dynamic parameters | |||||
X |
Accuracy @Ta=25°C |
±0.5% FS |
|||
εL |
Linearity @Ta=25°C |
±0.1% FS |
|||
VO |
Offset voltage @Ta=25°C |
±20mV |
|||
VOT |
Thermal drift |
≤±0.5mV/°C |
|||
Tr |
Response time |
≤400ns |
|||
BW |
Bandwidth(-1dB) |
DC~200kHz |
|||
di/dt |
Following accuracy |
≥60A/us |
|||
General parameters | |||||
Ta |
Operating temperature |
-40~+85°C |
|||
Ts |
Storage temperature |
-50~+90°C |
|||
W |
Weight |
10g |
|||
Standards |
EN50178:1998,ISO9001 |
||||
Dimension
Outline drawing of RCB52BR-25

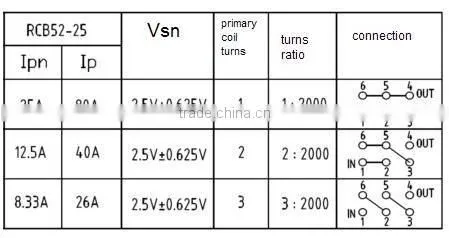

Connection
Notices
1. Please connect according to the dimension drawing in which defining the current flowing direction and the function of the PIN.
2. The temperature of the primary busbar can’t be over 100°C
3. We can also develop and manufacture transducers depending on customers’ requirements. Welcome to communicate with us when you are in this kind of demand.
Application cases
In new energy solar power system ( level one combiner box, monitoring unit, inverter )
For electricity and power supply
Certifications ( ISO,CE,RoHS )
Production construction
Brand introduction
