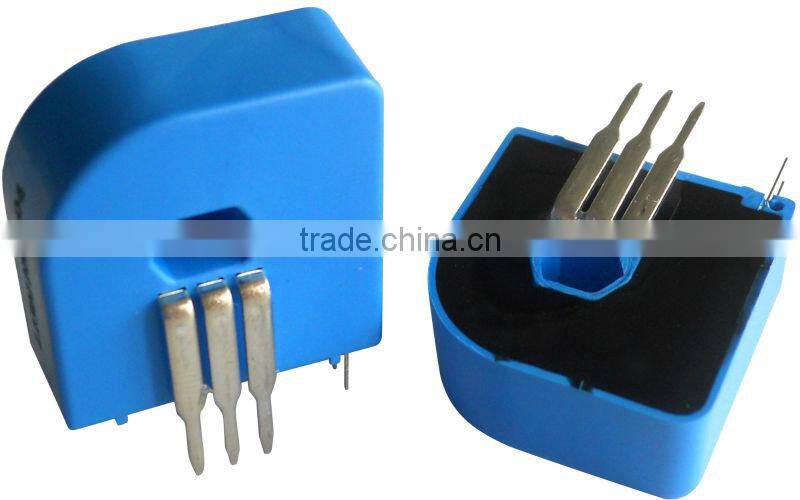

Single Power Supply PCB Mounted Hall Effect Current Transducers RCB52BR-6, 6A DC AC Pulse and Irregular Magnetic Current Sensor

Electric parameters

Features

1. Magnetic balance ( Hall effect closed loop)

2. According to UL 94-V0

3. RoHS and CE certificated

4. PCB mounted

5. Single power supply

Superiorities

1. Excellent accuracy, very good linearity

2. Low thermal drift

3. Wide bandwidth

4. Fast response

5. High immunity to external interference

6. Good overload capability

7. Low inductance

Applications

1. VF speed regulating device

2. SMPS

3. UPS

4. Converter device

5. Industry( welding machine, textile machine,etc.)

6. Photovoltaic, solar power

7. Wind power

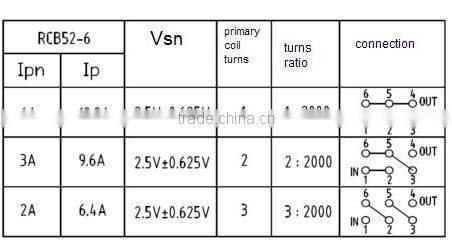

Ipn

Nominal RMS current

6A

Ip

Measuring range

19.2A

Vsn

Output voltage @ Ipn

 VRef±0.625V

Rm

Load resistance Rmax

≥10kΩ

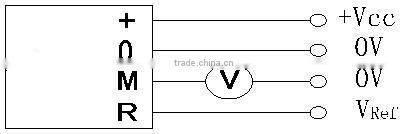

Vc

Supply voltage

+5V

Ic

Current consumption

25mA+output current

Vd

Withstand voltage

3kVrms/50Hz/min

Dynamic parameters

X

Accuracy @Ta=25°C

±0.5% FS

εL

Linearity @Ta=25°C

±0.1% FS

VO

Offset voltage @Ta=25°C

±20mV

VOT

Thermal drift

≤±0.5mV/°C

Tr

Response time

≤400ns

BW

Bandwidth(-1dB)

DC~200kHz

di/dt

Following accuracy

≥15A/us

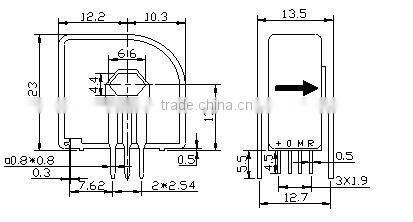

General parameters

Ta

Operating temperature

-40~+85°C

Ts

Storage temperature

-50~+90°C

W

Weight

10g

Standards

EN50178:1998
