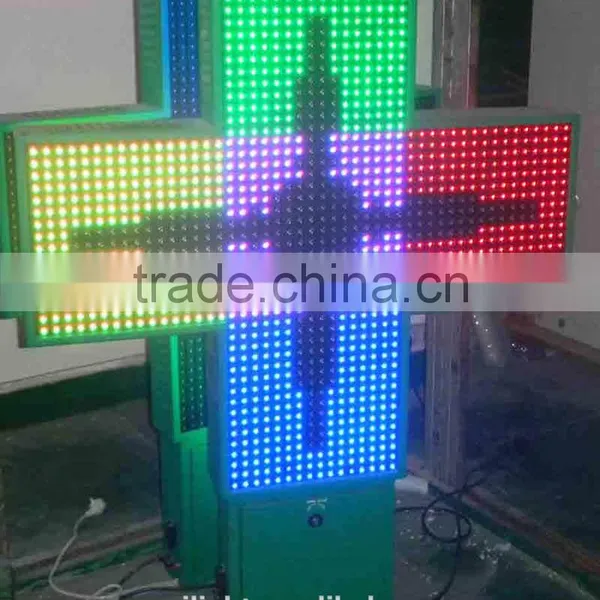

Hot!!Outdoor Green LED Pharmacy Cross for Pharmacy

1. LED chip size

red:9mil,green/blue/amber/white:12mil

2. View Angle

H:120°(+60/-60),V:60°(+30/-30)

3. Viewing Distance

≥20m

4. Input voltage (AC)

110V~240V

5. Input power frequency (Hz)

50HZ~60HZ

6. Control Mode

Asynchronous

7. Drive Mode

1/4 scan constant current (1200×1200 is static scan)

8. Communication Mode

RS232,RF Wireless, WIFI(Optional)---The default configuration(RF Wireless)

9. Control distance

RS232:<100m,RF Wireless:<800m

10. Display content

Animation/Graphics/Word/Time/Temperature

11. Languages

English, French, Spanish ,Greek,Russian and Italian

12. Operating system

Windows (2000/XP/Vista/Win7)

13. Frame Material

Steel(cold rolled iron) frame.500*500,800*800,1000*1000 can do aluminum frame

14. Working Temperature(°C)

-45~+65(for working)

15. Working Humidity

10%~95%RH

16. Life span

100,000 hours

17.Certificate

CE-EMC,CE-LVD,ROHS

Model

Description

SC 520×520

(Two sides)

SC 800×800

(One or two sides)

SC 1000×1000

(One or two sides)

SC 1024×1024

(Two sides)

SC 1200×1200

(One or two sides)

Pixel pitch

10mm

16mm

20mm

16mm

25mm

Pixel configuration

One led (red/green/blue)

One led (red/green/blue)

One led (red/green/blue)

One led (red/green/blue)

One led (red/green/blue)

Display Pixels (one/two sides)

--- / 2560 dots

1280 / 2560 dots

1280 / 2560 dots

---/ 6144 dots

1280 / 2560 dots

Brightness

≥6000CD

IP grade

IP65

Max. Power Cons. (one/two sides)

--- / 115W

58 / 115W

58 / 115W

--- / 273W

128 / 255W

Cabinet Size(cm)  (one/two sides)

--- / 89×54×10

82×82×10 / 118×82×10

101×101×10 / 137×101×10

--- / 144×108×10

125×125×10 / 161×125×10

Packing Meas.(cm) (one/two sides)

--- / 95×61×24

91×91×19 / 125×89×24

110×110×19 / 144×107×24

--- / 152×117×24

134×134×19 / 169×136×24

Net Weight(kg)  (one/two sides)

--- / 15

16 / 26

25 / 38

--- / 48

38 / 58

Gross Weight (kg)  (one/two sides)

--- / 28

31 / 43

45 / 60

--- / 85

64 / 88
