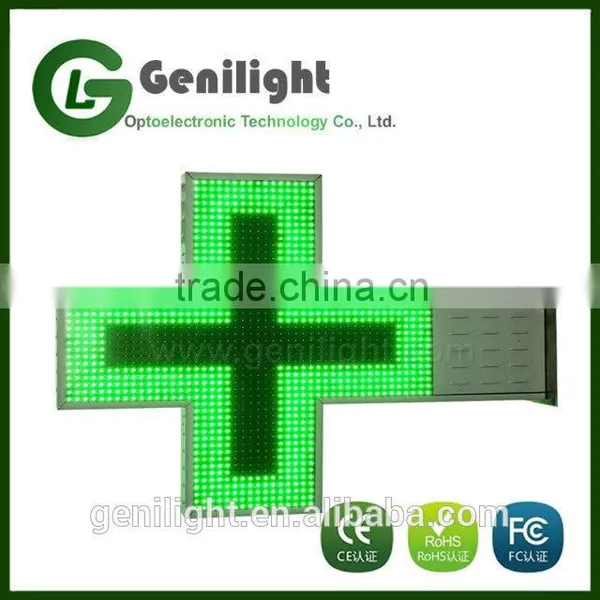

SC 800*800 P10 two sides pharmacy cross led display

Name: SC 800*800 P10 two sides pharmacy cross led display
Brand: Genilight
Availability: InStock

FOB Price

US$ 700 - 1,200 / Piece

1 Piece(Min. Order)

Port xiamen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Genilight
Model Number	SC 800*800-P10	Usage	Outdoor
Tube Chip Color	Green	Display Function	Graphics
Pixels	10mm	Screen Dimension	800X800

Product Description

SC 800*800 P10 two sides pharmacy cross led display

The LED Pharmacy Cross Display is integrated with Optical, Electronic, Mechanical, and Computer technology, using novel and special LED display method, based on the principle of energy efficient, and fully utilize the display efficiency of LEDs.

Specifications

Model	SC 800×800-P10
Pixel pitch	10mm
Pixel configuration	1G
Display Pixels	4608 dots
Brightness	≥6000CD
IP grade	IP65
Max. Power Cons.	160W

LED chip size	red:9mil,green/blue/amber/white:12mil
View Angle	H:120°(+60/-60),V:60°(+30/-30)
Viewing Distance	≥20m
Input voltage (AC)	110V~240V
Input power frequency (Hz)	50HZ~60HZ
Control Mode	Asynchronous
Drive Mode	1/4 scan constant current (1200×1200 is static scan)
Communication Mode	RS232,RF Wireless, WIFI(Optional)---The default configuration(RF Wireless)
Control distance	RS232:<100m,RF Wireless:<800m
Display content	Animation/Graphics/Word/Time/Temperature
Languages	English, French, Spanish ,Greek,Russian and Italian
Operating system	Windows (2000/XP/Vista/Win7)
Frame Material	Steel(cold rolled iron) frame.500500,800800,1000*1000 can do aluminum frame
Working Temperature(°C)	45~+65(for working)
Working Humidity	10%~95%RH
Life span	100,000 hours
Certificate	CE-EMC,CE-LVD,ROHS
Warranty	1 year
Min.Order Quantity	1/piece

Model Description	SC 520×520 (Two sides)	SC 800×800-P10 (Two sides)	SC 1000×1000 (One or two sides)	SC 1200×1200 (One or two sides)
Pixel pitch	10mm	10mm	20mm	25mm
Pixel configuration	One led (red/green/blue)	1G	One led (red/green/blue)	One led (red/green/blue)
Display Pixels (one/two sides)	--- / 2560 dots	4608 dots	1280 / 2560 dots	1280 / 2560 dots
Brightness	≥6000CD	≥6000CD	≥6000CD	≥6000CD
IP grade	IP65	IP65	IP65	IP65
Max. Power Cons.	--- / 115W	160W	58 / 115W	128 / 255W
Cabinet Size(cm)	--- / 89×54×10	120×85×10	101×101×10 / 137×101×10	125×125×10 / 161×125×10
Packing Meas.(cm)	--- / 95×61×24	131×94×24	110×110×19 / 144×107×24	134×134×19 / 169×136×24
Net Weight(kg)	--- / 15	22	25 / 38	38 / 58
Gross Weight (kg)	--- / 28	38	45 / 60	64 / 88

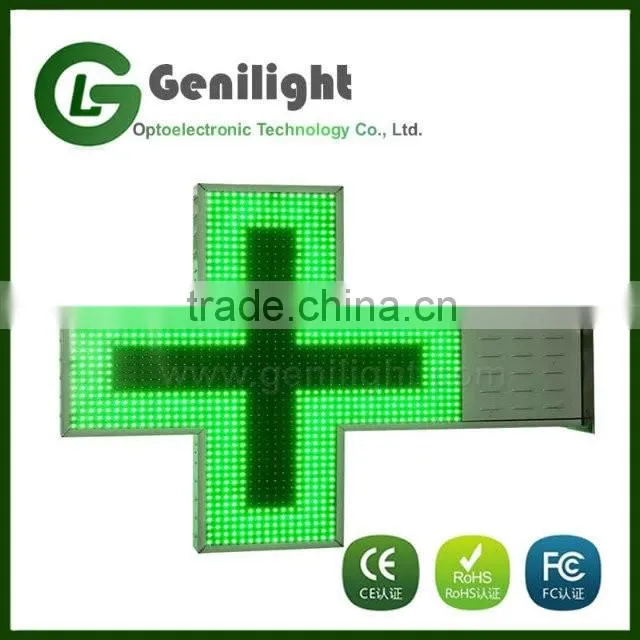

Detailed Images

Application:

led cross display is a very effective communication and advertising tool, which can display variable messages indoor or outdoor to highlight your pharmacy in the city and impress the potential clients. Smart users know how to make full use of their Cross in order to get the best advertising solution for their pharmacies.

Packing & Delivery

Packaging Details: carton box
Delivery Detail: 7-15days, please check with us

Tips

1.OEM is available.
2.Our all produces are with 1-3 years warranty.
3.Our trademessage is 24 hours on line.
4.we will reply your email asap .

Our Company

Genilight Optoelectronic Technology Co., Ltd

Genilight Optoelectronic Technology Co., Ltd. have a strong R&D staff who are professional in the areas of LED application,electronics, illu mination, structure, LED special power supply, technical design and so on. With industrious hardworking, we have developed super high brightness LED with low degradation and launched many series of LED lighting products, including Series universal for both Indoor and Outdoor application, Series for led fluorescent light, Series for led high power spotlight, Series for led bulb, Series for led sign, Series for led strip,Series for led modules etc.

Certification

FAQ

1. What computer operating system dose the control software support?

It supports WinXP,Win7 and Vista.
2. Is the product safe?
Yes ,output is 12V voltage is Safe to touch .
3. Do you have any certification for the products?
Yes ,our products and adapter are with CE,Rohs certification.
4.Can I use the product right after receiving it?
Yes, yo can .We will offer everything needed in the shipping package, it is ready to use.
5.What payment are you accept?
we accept payment method: T/T ,Western Union, Money Gram,Paypal,etc.
