P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business

P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business thumbnail-1
P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business thumbnail-2
P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business thumbnail-3
P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business thumbnail-4
P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business thumbnail-5
P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business thumbnail-6
P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business photo-1
P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business photo-2
P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business photo-3

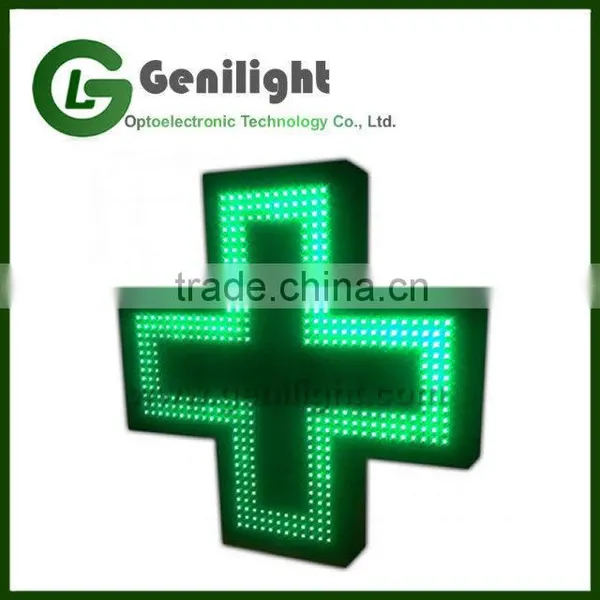

P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business photo-4
P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business photo-5
P10 Pixels and Video Function Outdoor Green Led Pharmacy Cross Display Sign for Business photo-6
US$ 500 - 1,200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Genilight
Model Number:
FC 1000x1000
Usage:
Outdoor
Contact Supplier Request Quote Chat Now
Genilight Optoelectronic Technology Co., Ltd. (Xiamen)
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Genilight
Model Number FC 1000x1000
Usage Outdoor
Tube Chip Color Other, full color
Display Function Graphics
Pixels 20mm
Screen Dimension 1000x1000mm
Specification

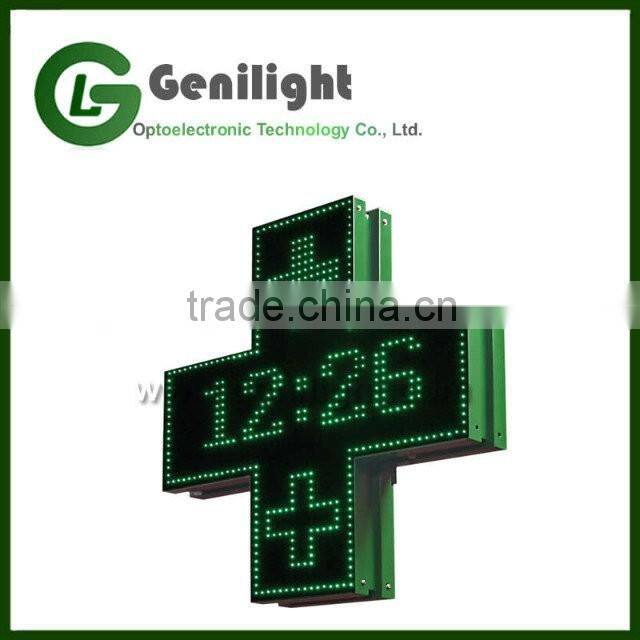

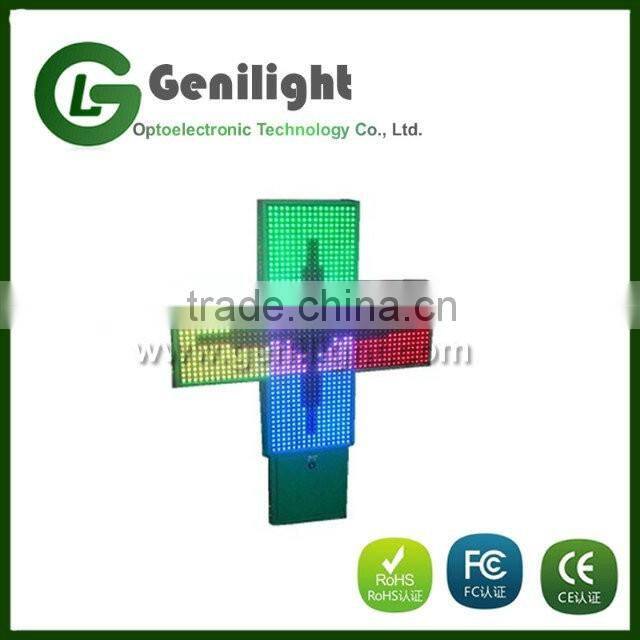

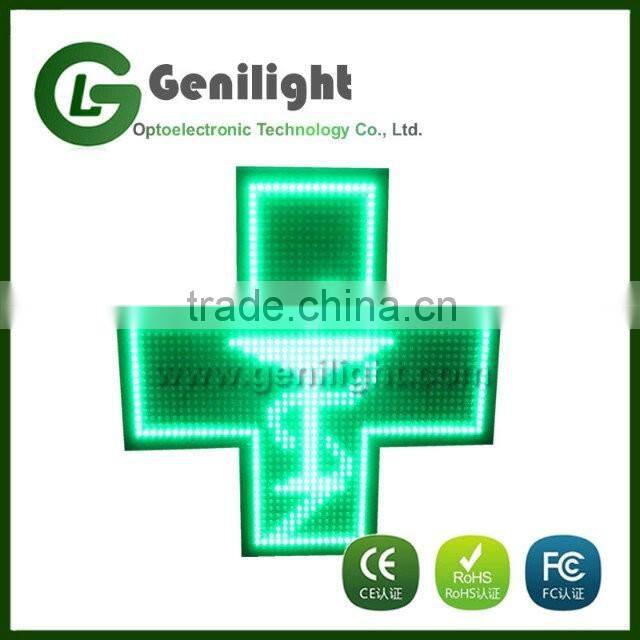

P10 pixels and video function outdoor green led pharmacy cross display sign for business

Product Description
Model
FC 1000x1000
(One or two sides)
Pixel pitch
20mm
Pixel configuration
1R1G1B
Display Pixels
1280 / 2560 dots
Brightness
≥6000CD
IP grade
IP65
Max. Power Cons.
150 / 300W
Cabinet Size(cm) (one/two sides)
101×101×10 / 137×101×10
Net Weight(kg) (one/two sides)
25 / 38
Gross Weight (kg) (one/two sides)
45 / 60
Warranty
1 year
Exact Spec Information
LED chip size
red:9mil,green/blue/amber/white:12mil
View angle
H:120°(+60/-60),V:60°(+30/-30)
Viewing distance
≥20m
Input voltage (AC)
110V~240V
Input power frequency (Hz)
50HZ~60HZ
Control mode
Asynchronous
Drive mode
1/4 scan constant current (1200*1200 is static scan)
Communication mode
RS232,RF Wireless, WIFI(Optional)---The default configuration(RF Wireless)
Control distance
RS232:<100m,RF Wireless:<800m
Display content
Animation/Graphics/Word/Time/Temperature
Languages
English, French, Spanish ,Greek,Russian and Italian etc.
Operating system
Windows (2000/XP/Vista/Win7)
Frame material
Steel(cold rolled iron) frame;500*500,800*800,1000*1000 can do aluminum frame
Working temperature(°C)
-45~+65(for working)
Working humidity
10%~95%RH
Life span
100,000 hours

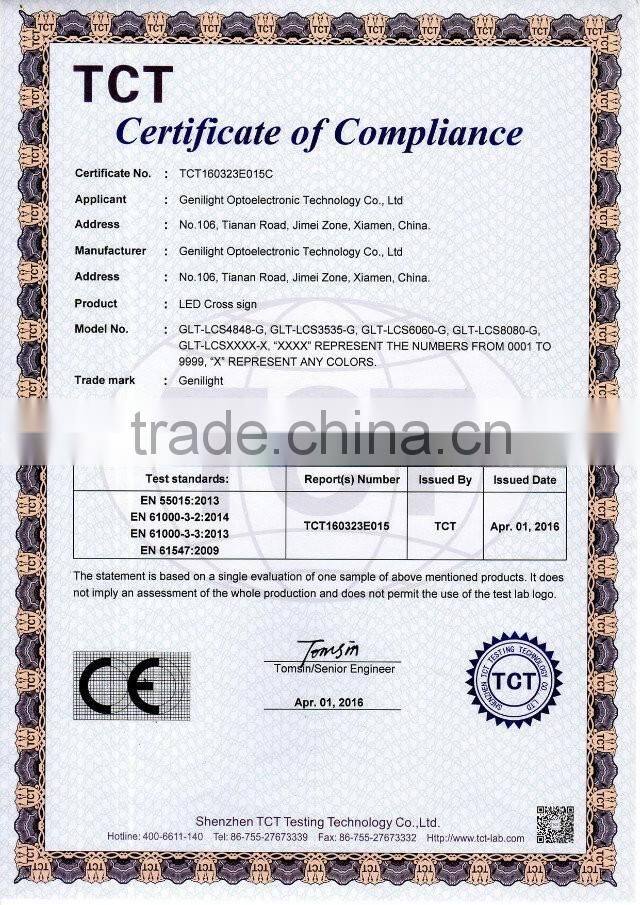

Certificate
CE-EMC,CE-LVD,ROHS etc.
Product Description

Product Feature:

1.Can display current temperature(format:19 °C),time(format:11:00),date(format:01/08), graphics(format: jpg.bmp),animations(format:gif,crs) and free text messages.
2.Can display messages in English,French,German,ltalian,Spanish,Arabic and many other languages.
3.Operating software supports Windows2000, Vista,XP,etc.
4.User-friendly operating software allows user to edit/modify the text,draw/clear a pictuer freely,increase/decrease the speed,enlarge the characters height,make text scroll in horizontal or vertical,select among tens of font sets,All operations can be done very easily and conveniently!
5.When creating a new animation,user can open existing flash files(GIF format) to get animations and just click OK to display,or he can also modify them before display.
6.On/Off option allows messages to display at predetermined hours and minutes.
7.Set Bright option allows adjusting the brightness at predetermined time.
8.Thin and slim display body,front access maintenance.Programmable with wire or wireless control.
9. Waterproof of design for outdoor use: outside metal frame can be sprayed in color of customer’s choice.

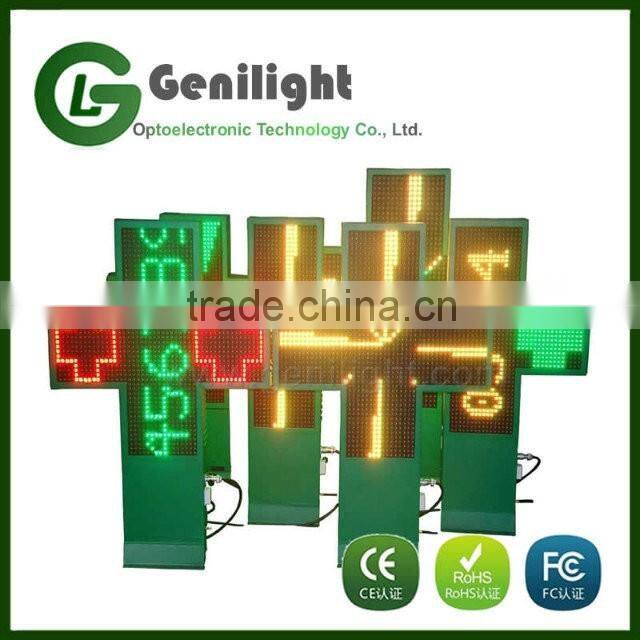

Model Description
GLT-FC 520×520
(Two sides)
GLT- FC 800×800
(One or two sides)
GLT- FC 1000×1000
(One or two sides)
GLT- FC 1024×1024
(Two sides)
GLT- FC 1200×1200
(One or two sides)
Pixel pitch
10mm
16mm
20mm
16mm
25mm
Pixel configuration
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
Display Pixels (one/two sides)
--- / 2560 dots
1280 / 2560 dots
1280 / 2560 dots
---/ 6144 dots
1280 / 2560 dots
Brightness
≥6000CD
IP grade
IP65
Max. Power Cons. (one/two sides)
--- / 300W
150 / 300W
150 / 300W
--- / 720W
305 / 610W
Cabinet Size(cm) (one/two sides)
--- / 89×54×10
82×82×10 / 118×82×10
101×101×10 / 137×101×10
--- / 144×108×10
125×125×10 / 161×125×10
Packing Meas.(cm) (one/two sides)
--- / 95×61×24
91×91×19 / 125×89×24
110×110×19 / 144×107×24
--- / 152×117×24
134×134×19 / 169×136×24
Net Weight(kg) (one/two sides)
--- / 15
16 / 26
25 / 38
--- / 48
38 / 58
Gross Weight (kg) (one/two sides)
--- / 28
31 / 43
45 / 60
--- / 85
64 / 88

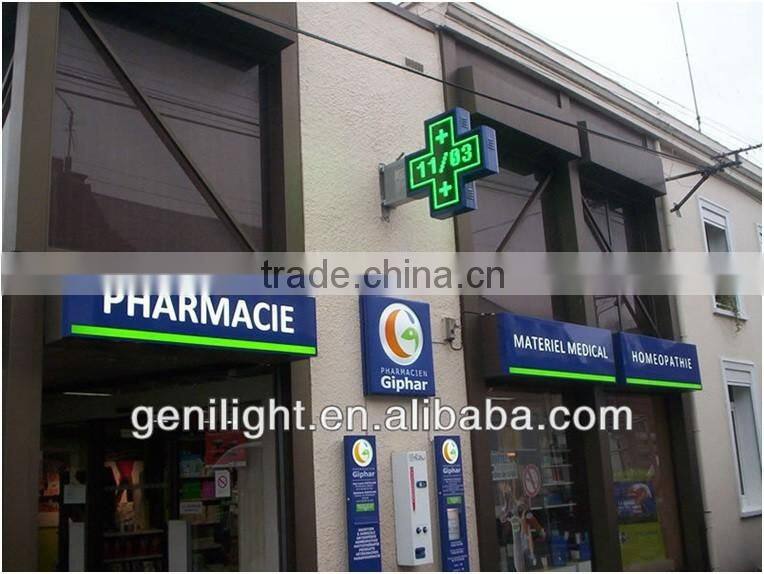

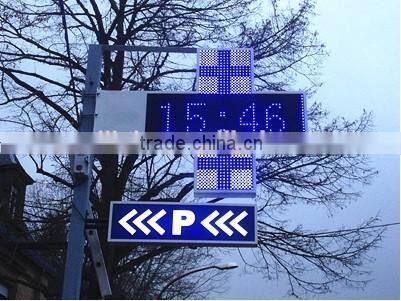

Applications

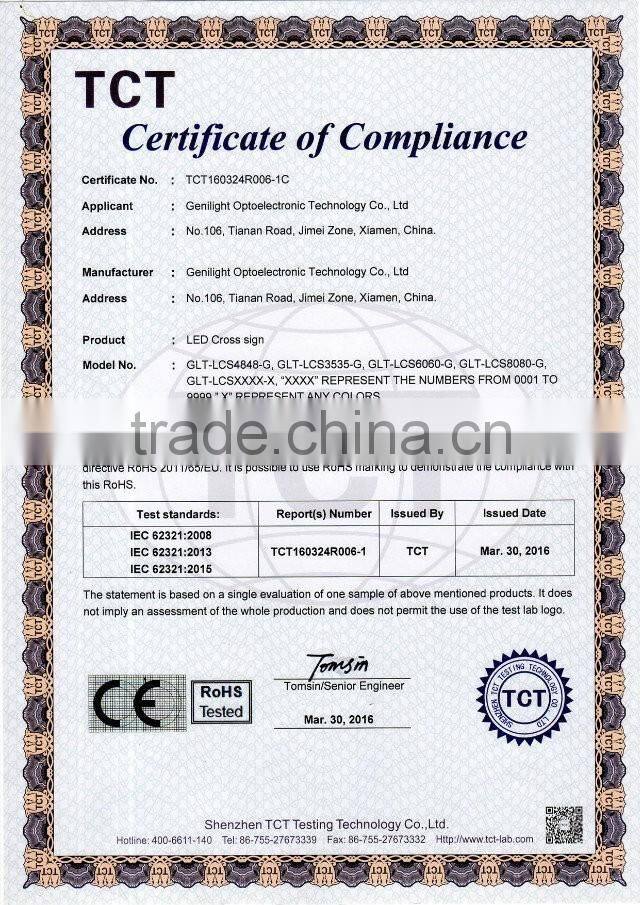

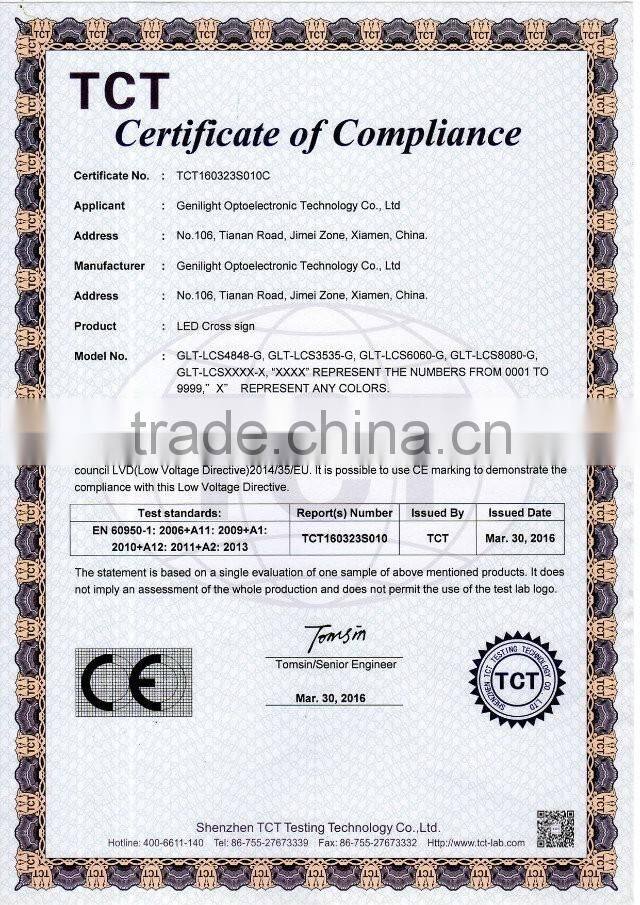

Certifications
Company Information

Genilight Optoelectronic Technology Co., Ltd. have a strong R&D staff who are professional in the areas of LED application,electronics, illumination, structure, LED special power supply, technical design and so on. With industrious hardworking, we have developed super high brightness LED with low degradation and launched many series of LED lighting products, including Series universal for both Indoor and Outdoor application, Series for led fluorescent light, Series for led high power spotlight, Series for led bulb, Series for led sign, Series for led strip,Series for led modules etc.

Our Services:

1.OEM is available.

2.Our all produces are with 1-3 years warranty.

3.Our trademessage is 24 hours on line.

4.We will reply your email asap .

FAQ

1. Do you accept custom design?

Yes, any design and any size are available.

2. Is the product safe?

Yes ,output is 12V voltage is Safe to touch and clean.

3. Do you have any certification for the products?

Yes ,our products and adapter are with CE-EMC, CE-LVD, ROHS etc certification.

4. How long have you produced led sign?

We have more than 5 years experience in led sign.

5.What payment are you accept?

We accept payment method: T/T ,Western Union, Money Gram,Paypal,ect.
