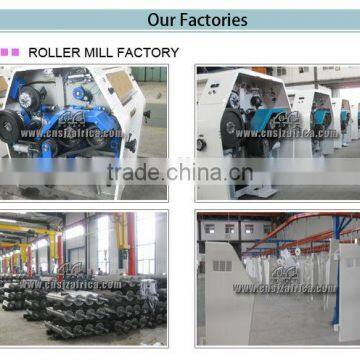

We are the only one manufacturer that produce Europe standard quality flour mill in China. We have 6 branch factories, 2 Roller mill factories, 2 Sifter factories, Cleaning system machine factory and pipes factory to become the largest flour mill supplier in China. And reach world first class standard.

the products passed ISO good aftersales sercise & low noise
machine for rice flour
almond flour
yam pounding machine

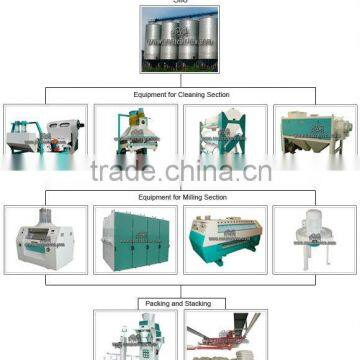

The process of flour milling usually consist of the following:

1. grain storage (silos, or warehouse)

2. Cleaning system (sifter, destoner, separator, magnet, scourer, etc)

3. Dampening (dampener, conditioning silos, etc)

4. Milling system (roller mill, plan sifter, purifier, impact detacher, etc.)

5. Flour pressure and blending system (if need)

6. Flour packing and stacking

Receiving Section (Pre-cleaning section)

To pre-clean the grain in the receiving to grain storage tank. Clean out some big impurity to protect the discharge outlet not block up when feed to flour mill. Also protect the following equipment working safely .

Cleaning Section.

Further to clean out the middle and small impurity from grain. e.g., dust, stone, magnetic material, wheat was bitten by insect and so on…

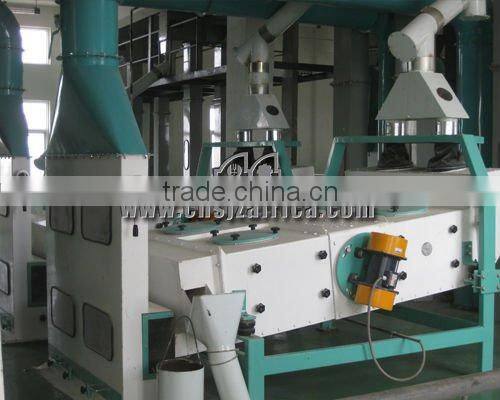

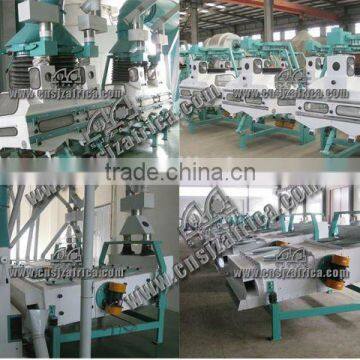

Purpose

To remove stone from wheat.

Structure

Vacuum principle.

Steel seat frame, with a sifter slop adjustment device.

Steel sifter box is supported by special hollow rubber blocks.

Removable wooden sifter frame is covered with steel mesh, and steel deflector and cubic cleaner.

Vibration driving devices: 2 × 0.25kW, amplitude 3.5-5mm, revolving speed 960r/min.

The final stone separating device can be adjusted.

General board includes product entry, suction connector, and air control valve with vacuum indicator.

Outlet is equipped with a rubber sleeve valve.Outlet collection hopper.

Integrated product distribution system.

Organic glass inspection window, and inspection hole is sealed with a rubber cover.

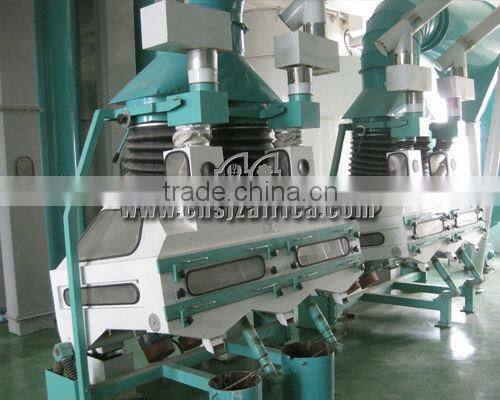

Structure

Steel construction.

With uprightness air passage.

Operates on the vacuum principle.

Steel base frame.

Steel sieve box is supported by special hollow rubber blocks.

Withdrawable wooden sieve frames, covered with steel screens.

With 2 steel screens.

Plexi-glass inspection window, access openings closed with rubber covers.

Oscillating drive.

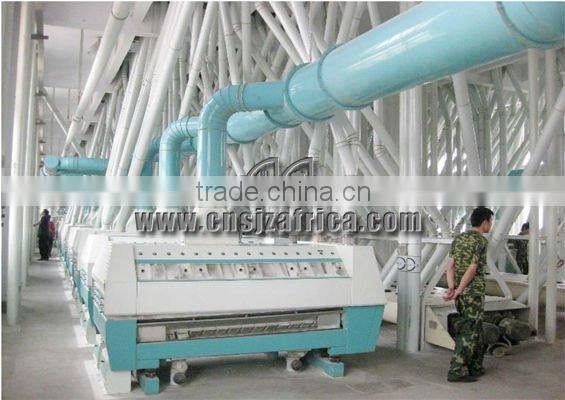

Milling

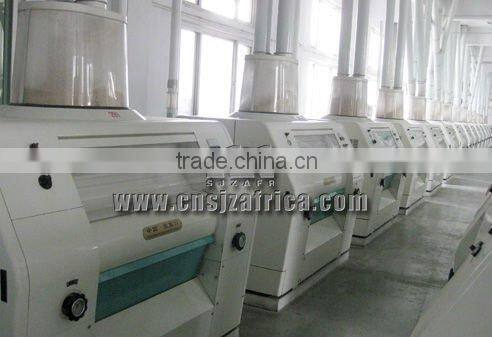

Mill: mill the grain to break the integrity by the roller moving

Sifter: to separate the flour and bran, also separate large size and small size to enssure flour quality.

Upper enclosed housing in stainless steel construction, lower enclosed housing in cast steel construction.
With two grinding units horizontally arranged, one on both roller mill sides, each equipped with power-integrated bearing packs and vibration absorbers.

Self aligning roller bearings.
Four built-in grinding rolls of high grade centrifugal cast, dynamically balanced, prepared for water cooling.

Choice of fluted or smooth, frosted grinding rolls.

Pneumatic roll pressing force.

Roll protection device for foreign objects.

Two handwheels on each side for roll setting with position indicator. Pneumatically controlled, automatic engagement and disengagement of grinding and feeding rolls.

Pneumatically regulated, automatic servo feeders(Remarks: 1B controlled by pneumatic clutch)for feeding rolls and spreader-screw or double feeding rolls. Tooth wedge belt for drive transmission between grinding rolls.

Main drive pulleys either for flat- or V-belts.

With rushes or automatic lift-off knife scrapers, as required.
Air exhaust from grinding gap of all reduction passages.

Tapered Lucite inlet glass with partition, if necessary.
Built-in product collection hopper. Metal parts entering in contact with mill stock are powder coated for sanitary reasons.
Ends of roll stand are either encased or equipped with covers.

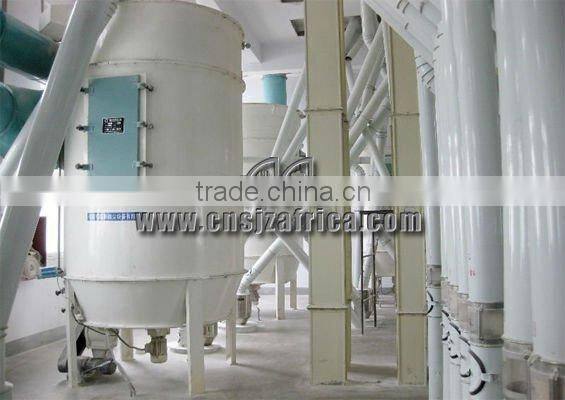

Function

For Side-Removal aspiration filter.

Structure

Removable suction filter at the side.

A clean air chamber and a cleaning air tank at the top.

A membrane valve and a jet orifice of cleaning air on the aluminum frame.

Electric control.

Cage-type fabric tube, with the length of 1800-2400mm.

Intermittent fabric belt cleaning process,

with pulse electric control.

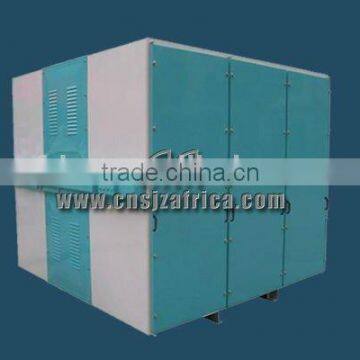

Structure

Metal construction.For 2 separate passages.

Machine housing with plexiglass windows, doors and covers for inspection of the grain, the sieves, the products and the drive. Inlet box in aluminium sheet with distributor gate.

Double sieve box, sectioned longitudinally in 2 sieve groups, constructed in aluminium.
Each sieve group with 3 sieves decks each with 4 light metal sieve frames = totally 24 sieve frames per machine.
Sieve frames are clothed, can be re-tightened.

Sieve cleaning with self-reversing travelling brushes.

2 separate chambers above the sieves, each sectioned in 16 equal sections with air control slides.

Sieve lighting with one lighting fixture.

1 air collection manifold with 2 throttle valves and 1 connector to the central aspiration.

2 double collecting channels with outlet spout for troughs.
2 vibrating motors 0.18kw each.

With 3 spare sieve frames clothed.

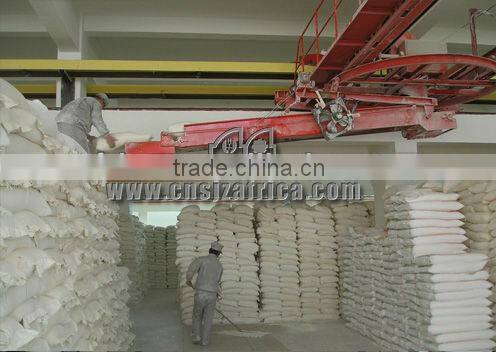

Packing Section

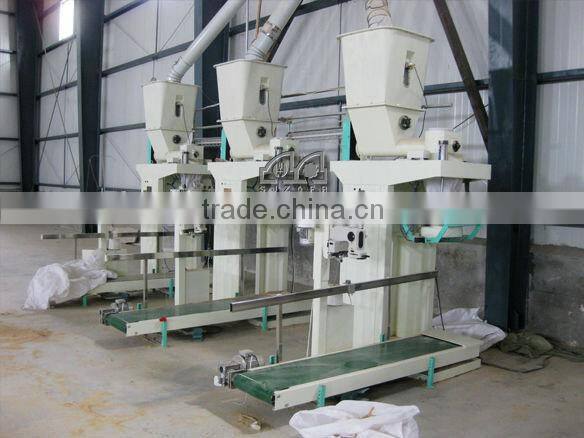

Our packing machine is fully automatic weighting and packing. The precision is less than 0.2%. Like 25kg/bag, the weight is not less than or no more than 50g.

 grain storage silos

Controlling section -- PLC SYSTEM can be selected

Automatically display raw cereal , clean grain, flour , pollard, bran instant flowing quantity

Siemens or Schneider electrical parts, Omron sensor.

Adopt Japan brand rollers, SKF bearing, good painting, high manufacture accuracy.

all the machine packed in fumigation-free wooden cartons
