Home > Products > grain cleaning machinery > European Standard Metal Construction Purifier in Flour Mill Factory
European Standard Metal Construction Purifier in Flour Mill Factory
- Tianjin Xin Gang
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Hebei, China | |
| Brand Name | HBA | Model Number | Wheat Flour Milling Machine | |
| Production Capacity | 72-85% | Voltage | 220V/380V | |
| Power(W) | 11kw | Weight | 300kg | |
| Dimension(L*W*H) | 37*7.5*18.5-87*12*30 | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

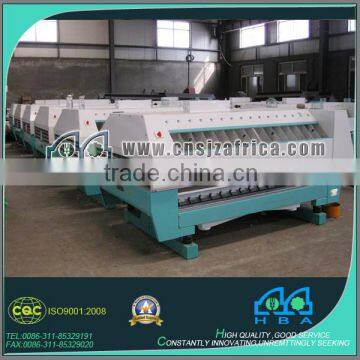

Metal construction purifier
Metal construction.
For 2 separate passages. Machine housing with plexiglass windows, doors and covers for inspection of the feed, the sieves, the products and of the drive.
Inlet box in aluminium sheet with distributor gate. Double sieve box, sectioned
longitudinally in 2 sieve groups, constructed in aluminium.
Each sieve group with 3 sieves decks each with 4 light metal sieve frames = totally 24 sieve frames per machine.
Sieve frames clothed, re-tightenable. Sieve cleaning with self-reversing travelling brushes. 2 separate chambers above the sieves, each sectioned in 16 equal sections with air control slides.
1 air collection manifold with 2 throttle valves and 1 connection to the central aspiration.
2 double collecting channels with outlet spout for throughs.
2 distribution boxes for overs with diverters.
2 vibro motors 0.25kw each. With 3 spare sieve frames clothed.
Sieve lighting with one lighting fixture.
Item Type | FQFD-49×2×3 | FQFD-H49×2×3 | FQFD-H60×2×3 |
Yield | Coarse residues1.4-2.8 Fine residues 0.6-1.4 | Coarse residues1.4-2.8 Fine residues0.6-1.4 | Coarse residues1.6-3.2 Fine residues1.0-1.6 |
Power | 2×0.18 | 2×0.18 | 2×0.25 |
Airflow | 40-70 | 40-70 | 50-85 |
Swing | 8.5-9 | 8.5-9 | 8.5-9 |
dimensions | 2700×1290×1350 | 2730×1135×1500 | 2730×1500×1800 |
