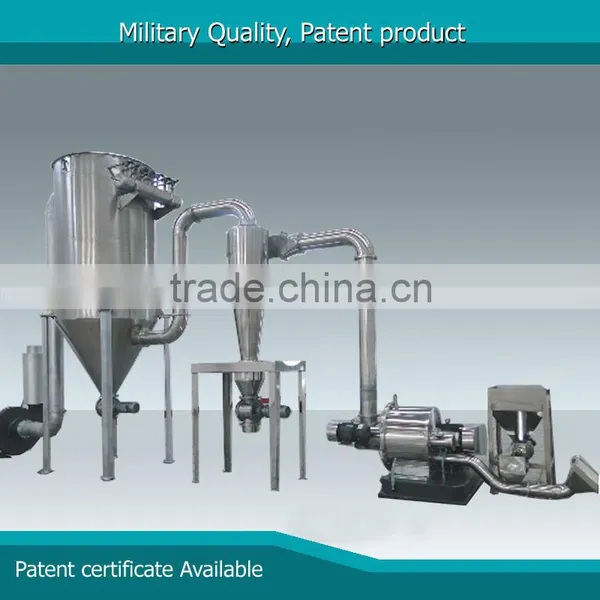

Commercialized coffee bean pulverizer bean grinding mill
The working principals and advantages of the machine:
1. This machine designs the most suitable flow field and the most ideal by adopting professional hydromechanics numeric. This kind of designing can optimize rotor structure, making the flow field stable and equally-distributed as well as lesser wastage of vane pressure. This technology sharply improves smashing efficiency, thus, making the particle size more centralized.
2. Because of the low temperature caused by sharp expansion during smashing, the reasonable cooling flow field is especially suitable for heat-sensitive and low-melting materials' processing.
3. The innovate jetting and classified flow field technology reduce adhesive material.
4. The high-efficiency collecting equipment heavily reduces bag’s load and the adhesive powder on filter cylinder, thus, expand bag’s working life.
5. The machine’s head part installs smashing system to solve the problem of big material’s plugging and improve the back air smashing efficiency.
6. The smashing and the mixing can be completed at the same time. Adopting double helix and sprayed machine to ensure material’s complete mixing.
7. Adopting negative-pressure adding material. Thus, there is no pollution in adding process.
8. The whole working process adopts PLC controlling system. Auto-controlling or hand-controlling is acceptable.
Technical parameters :
|
Model |
Max feeding size |
Discharging size |
Production capability |
Installed power |
Gas consumption |
JSDLJ-36A |
<3mm |
2-90um(adjustable) |
50-360g/h |
40.3-41kw |
6m3/min |
JSDLJ-120A |
<5mm |
2-90um(adjustable) |
50-360g/h |
134-154kw |
20m3/min |
JSDLJ-240A |
<5mm |
2-90um(adjustable) |
50-360g/h |
268-311kw |
40m3/min |
Products:
Chengdu OUT Trading Co,. Ltd is company that professionally producing and trading microgrinders for more than 3 years. Be located in Chengdu, Sichuan Province, the southwest city of China. We have our own factory in Mianyang, which was set up in 1998 and cooperated with military basement. For the past 17 years, we successfully obtained the patented certificates through thousands of hundreds strict tests and continuouly provide high quality products to the customers both in China and overseas. Products also can be customized according to your needs. High quality products and best service make us stand in this field for more than 15 years, and we believe that these two points will also bring you and your clients satisfactions.
About factory
1.Factory -located in Mianyang, Chinese people's liberation army 63820,575 workshop.
2.Quality –work with powerful military aerospace, the machine can operate 29 days continuously without rest.
3.Engineer-our engineer are both air power ultra expert with overall R&D strength and comprehensive competence, which can design the jet mill or redesign mill according customers' requirements.
Service
we have professional sales team for pre-sales and after-sales services, also we will send engineer to your factory if you need.
We believe that our perfect products and excellent services will establish a win-win business relationship with you.
Contacts: rena
Skype: renazhang123
Tel: 0086-15378196817
Chengdu OUR Trading Co, Ltd
