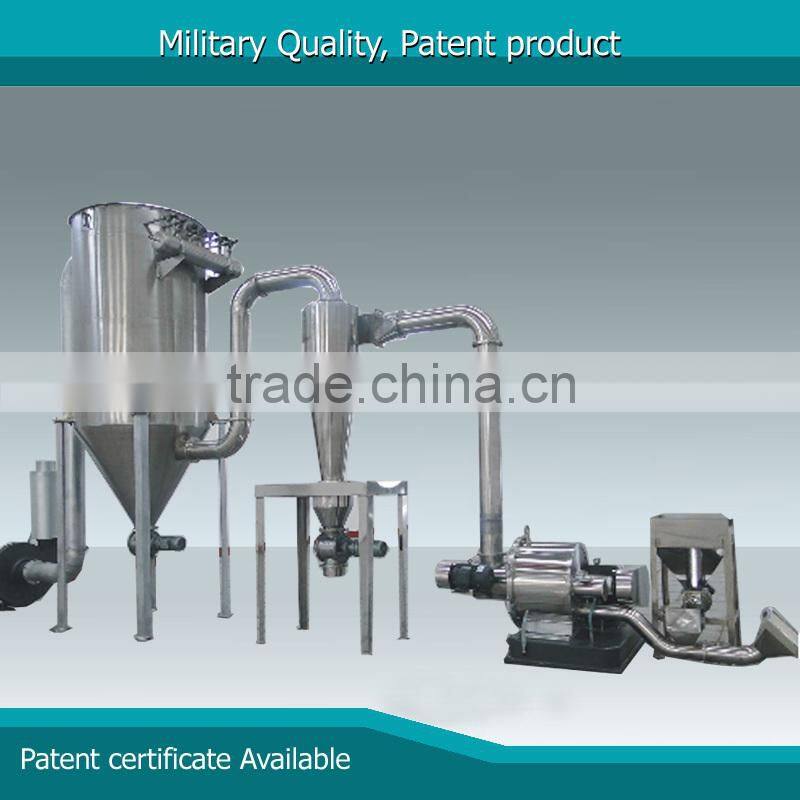

Wholesale JSDL Ultrafine Grinder for Food
US$ 28,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
JSDL
Model Number:
JSDLJ-36A
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
41kw Multi-function Food Grinder MachineUS$ 28,000 - 30,000MOQ: 1 Set -
Best Price Food Crusher Machine Factory SupplyUS$ 28,000 - 30,000MOQ: 1 Set
-
Military Grinder Machine Product Multifuction for Food PowderUS$ 28,000 - 30,000MOQ: 1 Set
-
Fine Powder Chinese Herbal Medicine Grinding Machine for SaleUS$ 8,000 - 8,000MOQ: 1 Set
-
Chinese Herbal Medicine Grinding MachineUS$ 8,000 - 8,000MOQ: 1 Set
Place of Origin
Sichuan, China
Brand Name
JSDL
Model Number
JSDLJ-36A
Type
Other, grinder machine for food
After-sales Service Provided
Engineers available to service machinery overseas
wholesale JSDL ultrafine grinder for food
Product Description
Features:
- This machine designs the most suitable flow field and the most ideal by adopting professional hydromechanics numeric. This kind of designing can optimize rotor structure, making the flow field stable and equally-distributed as well as lesser wastage of vane pressure. This technology sharply improves smashing efficiency, thus, making the particle size more centralized.
- Because of the low temperature caused by sharp expansion during smashing, the reasonable cooling flow field is especially suitable for heat-sensitive and low-melting material’s processing.
- The innovate jetting and classified flow field technology reduce adhesive material.
- The high-efficiency collecting equipment heavily reduce bag’s load and the adhesive powder on filter cylinder, thus, expand bag’s working life.
- The machine’s head part installs smashing system to solve the problem of big material’s plugging and improve the back air smashing efficiency.
- The smashing and the mixing can be completed at the same time. Adopting double helix and sprayed machine to ensure material’s complete mixing.
- Adopting negative-pressure adding material. Thus, there is no pollution in adding process.
- The whole working process adopts PLC controlling system. Auto-controlling or hand-controlling is acceptable.
Technical parameters :
|
Model |
Max feed size |
Discharging size |
Production capability |
Installed power |
Gas consumption |
JSDLJ-36A |
<3mm |
2-90um(adjustable) |
50-360g/h |
40.3-41kw |
6m3/min |
JSDLJ-120A |
<5mm |
2-90um(adjustable) |
50-360g/h |
134-154kw |
20m3/min |
JSDLJ-240A |
<5mm |
2-90um(adjustable) |
50-360g/h |
268-311kw |
40m3/min |
Our Services
we have professional sales team for pre-sales and after-sales services, also we will send engineer to your factory if you need.
We believe that our perfect products and excellent services will establish a win-win business relationship with you.
