NITX-BYT50

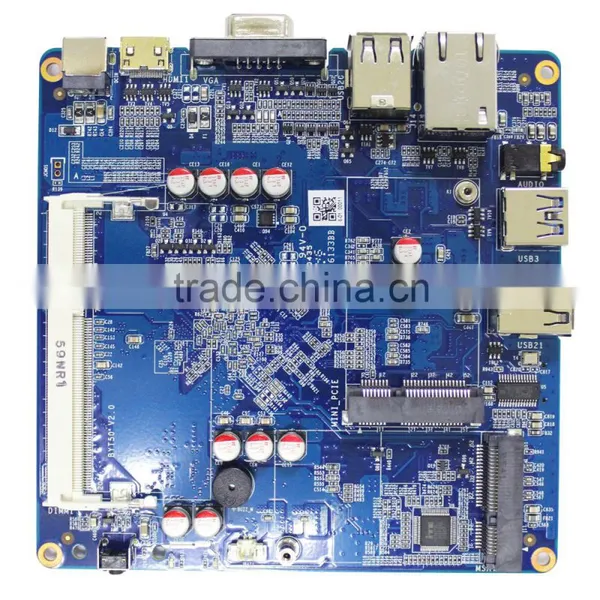

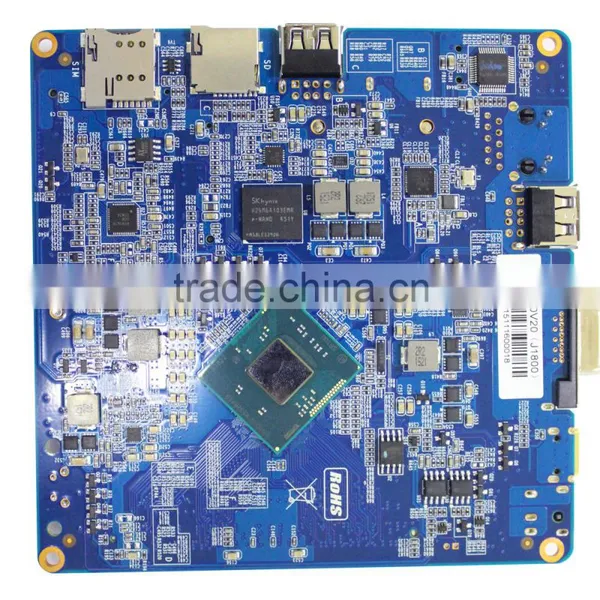

The NITX-BYT50 is an embedded Nano ITX motherboard. Built with the Intel® Bay Trail platform, it supports Celeron J1900, 2.00GHz, quad-core. This board supports up to one 8 GB of DDR3L (Low Voltage) SO-DIMM of up to 1333 MHz in one horizontal socket to add higher bandwidth and lower latencies for processes. That being said, this motherboard also features 1 eMMC, supporting UEFI OS including windows 10 64bit, windows 10 32bit, Windows 8 64bit and linux 64bit OS.
This NITX-BYT50 has rich interfaces as 4 USB2.0, 1 USB3.0, 1 LAN, 1 Audio (Mic in and Line out in one), 1 SIM and 1 TF card, catering to all the requirements in the market. It also supports dual independent display via mini HDMI and VGA with the Intel HD Graphics as its GPU. This Bay Trail based nano itx motherboard is designed to be high quality, secure and reliable.
Features
Onboard Intel ® Bay Trail mobile dual-core or Celeron J1900,
2.00GHz, quad-core- Support dual independent display via mini HDMI and VGA
- 1*SO-DIMM DDR3L 1333 MHz slots up to 8GB RAM
- 1*Mini PCIe, 1*mSATA, 1*TF card slot, 1*SIM card slot
- Rich I/O ports: 1*USB3.0, 4*USB2.0, 1*LAN, 1*Audio
1*eMMC, supporting UEFI OS including windows 10 64bit,
windows 10 32bit, Windows 8 64bit and linux 64bit OS- Fanless low power Nano ITX Motherboard
Parameters
| CPU |
Celeron J1900 (2.00GHz, quad-core, TDP10W) Celeron J1800 (2.41GHz, dual-core, TDP10W) |
| GPU | Intel ® HD Graphics |
| Memory | 1* SO-DIMM slots support DDR3L 1333 up to 8GB RAM |
| Ethernet | RTL8111F, 10Mbps/100Mbps/1000Mbps, 1 x LAN |
| Audio | Onboard ALC662 chip |
| Rear panel I/O |
1x DC_IN 19V 1x Mini HDMI port 1x VGA port 1x USB3.0 4x USB2.0 1x LAN 1x TF card slot 1x SIM card slot 1x Audio (Mic in and Line out in one) |
| Internal I/O |
1x mSATA 1x Mini-PCIe 1x eMMC |
| Operation temperature | -20℃~65℃ |
| Dimension | 120mm x 120mm |
| Weight | 150g |
| Category | Nano ITX Motherboard |

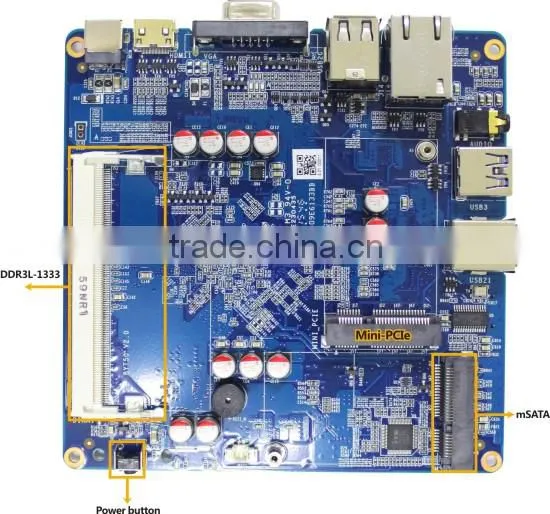

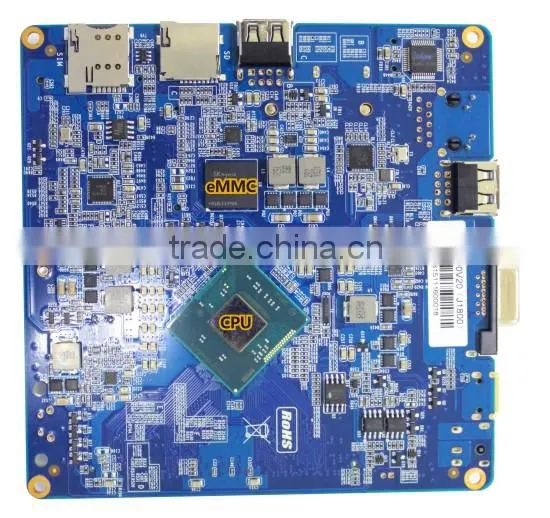

Graphic Description
