High quality diamond air jet mill for sale from China manufacturer
Operating principal:
The machine’s dynamic adopts purified and compressed air, which sprays in a high speed to the smashing room through a special ultrasonic nozzle. The air can works highly speed with the material carried, thus, making the material cause a strong collision, friction and crop with each other and then smash the material completely and go into the collecting system finally. The smashed material goes up to classifier room. The particle size that meet requirement can pass the forcing impeller but the size that failed to meet requirement would go back to the smashing room and continuing to smash once again. The whole production is a continued totally-enclosed operation. There are no dust pollution and the air would be purified through filtering the contaminations.
The advantage of the machine:
- 1. Mass yield, low energy-consumption and high efficiency of classifying.
- 2. Particle size centralization: the machine adopts an original vertical impeller to classify. This stable classifying skill and the special enclosed measure effectively stop the coarse grain leakage, thus, there are all small particles in the end and all of these are of high centralization as well as of high precision.
- 3. Rational structure: it can produce 1-6 particle sized productions at the same time according to customer’s requirement.
- 4. Strong applicability: it can works with a closed circuit or opened circuit formations, such as the Air Mill, Machine Mill, Ball Mill, Raymond Mill and Vibrating mill and so on.
- 5. High degree of automation: the impeller classifiers of all or different levels adopt electronic stepless frequency conversion. Not only electronic controlling will be achieved in the process of the automatic multi-part collecting dust, but improves machine’s stability to resist compression.
Technical parameters :
|
Model |
Max feed size |
Discharging size |
Production capability
|
Installed power |
Gas consumption
|
|
JSDL-JGS18 |
<1mm |
0-60um |
8-20kg/h |
5-7kw |
3m3/min |
|
JSDL-JGS18-1 |
<1mm |
0-60um |
8-20kg/h |
7-10.7kw |
3m3/min |
|
JSDL-JGS36 |
<1mm |
0-60um |
20-50kg/h |
7-10.5kw |
6m3/min |
|
JSDL-JGS36-1 |
<1mm |
0-60um |
20-50kg/h |
10.517kw |
6m3/min |

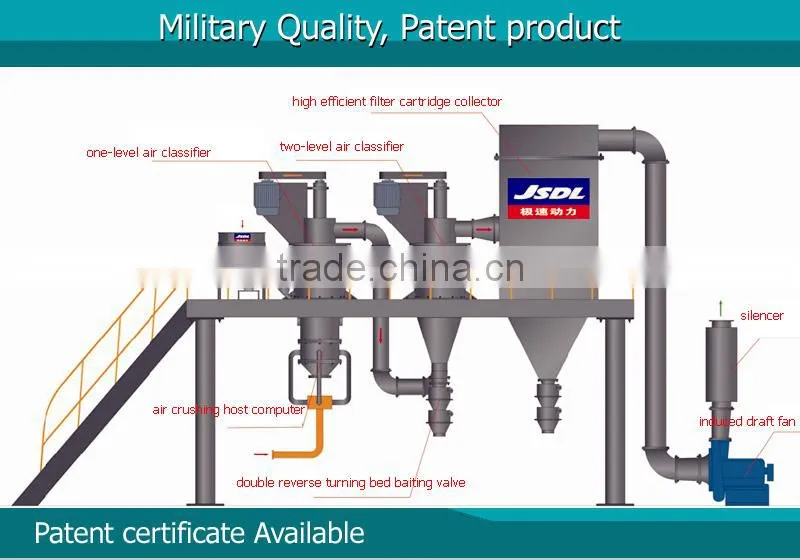

Sketch map:
Chengdu Our Trading Co.,Ltd is a trade and industry integrated company which established in 2008 with abundant exporting experience. With the company developed, we have 2 factories, one is located in Chengdu and another is in Mianyang.
Our main products are micronizer jet mill, micronizer impact mill, air classifier, inter gas protective equipmentetc.
Application of pulverator:
Processing materials in many fields, such as: health food raw material, herbal medicine, pesticide, cosmetic, chemical materials, mining materials, metallurgy, waste resource and scientific research project etc.
Our advantages:
1. Factory –located in Mianyang, Chinese people’s liberation army 63820,575 workshop.
2. Quality -powerful military aerospace strength, the machine can operate 29 days continuously without rest.
3. Engineer-our engineer are both air power ultra expert withoverall R&D strength and comprehensive competence, which can design the jet mill or redesign mill according customers’ requirements.
4. Service-we have professional sales team for pre-sales and after-sales services, also we will send engineer to your factory if you need.
We believe that our perfect products and excellent services will establish a win-win business relationship with you.
