Main Info
The BHWM-10 is a small form factor embedded system. Built with the Intel QM77 chipset and FCPGA947socket on board, it supports Intel Celeron, Pentium and Core Processors, including Celeron 2970M, Pentium 3560M, i3 4100M, i5 4210M, i7 4710MQ, i7 4712MQ. This system carries two DDR3L 1600 SODIMM slots with a total maximum capacity of 32GB to add higher bandwidth and lower latencies for processes. That being said, this computer also features dual nic and 6 serial ports, which makes it a good choice for network and communication appliance.
This embedded system is also built for particular environment, with no vent holes by protecting itself from dust. It has rich interfaces as 4 USB2.0,2 USB3.0, Mic in and Line out, 2 HDMI and 1 VGA, catering to all the requirements in the market. This QM87 based system is designed for various application as, but not limited to, automation, network security, communicationand transportation.
Features
- FCPGA946 ® socket for Intel Celeron, Pentium and Core processors
- Built with the Intel QM77 chipset
- 2*SO-DIMM DDR3L 1600 MHz up to 32GB

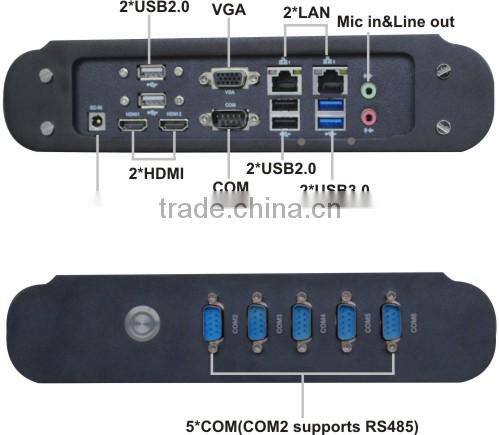

- Display ports: 2*HDMI, 1*VGA, 1*LVDS
- 6 * COM ports, with COM2 supporting RS485
- 4*USB2.0, 2*USB3.0, Mic in, Line out
- Vent-proof Embedded Industrial PC system
Parameters
| CPU | FCPGA946 Socket for processors: |
| Chipset | QM87 |
| System Memory | 2*SO-DIMM DDR3L 1333/1600 MHz up to 32GB |
| Ethernet | 2 x GbE LAN |
| Storage | 4 x SATA3.0 |
| Expansion | 1 x Half-size Mini PCIe( for WIFI or 3G network) |
| Power Supply | 1x DC_IN 12V |
| Display Interface | 2 x HDMI, 1 x VGA |
| USB | 4 x USB3.0, 4 x USB2.0 |
| Audio | Mic in, Line out |
| LCD | 1 x LVDS |
| Enclosure Material | 100% Aluminum |
| GPIO | 8 GPIO input and output |
| Color | Black |
| Operating Temperature | -20℃~65℃ |
| Dimension | 250mm x195mm x 55mm |
| Weight | 2.2kg |

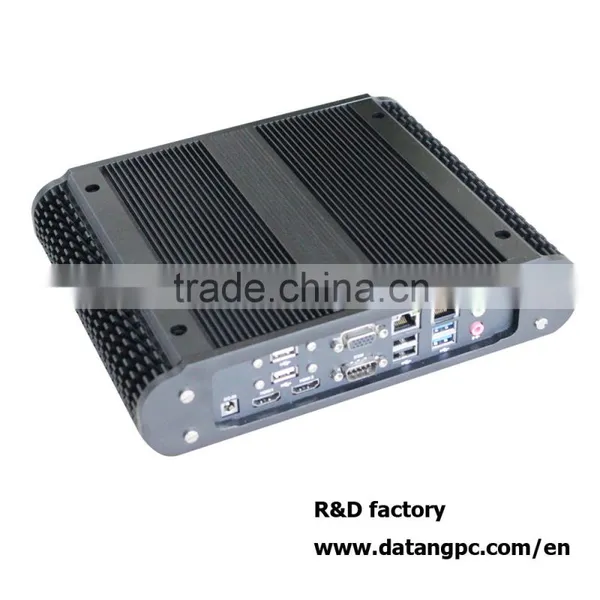

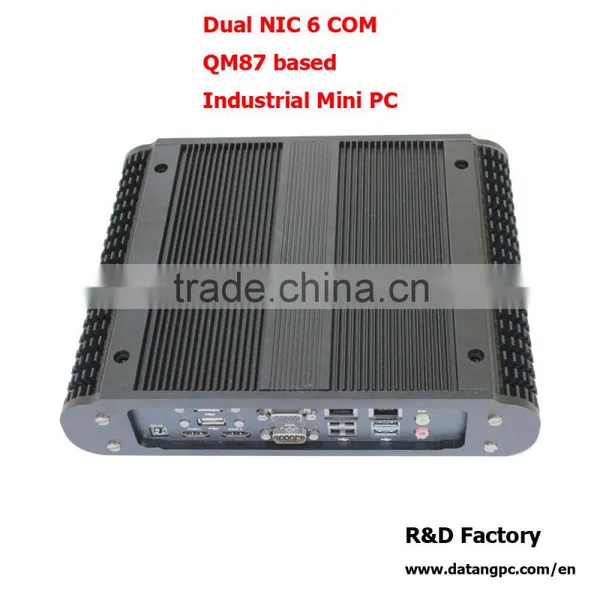

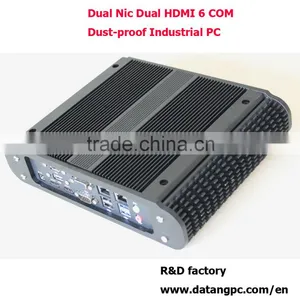

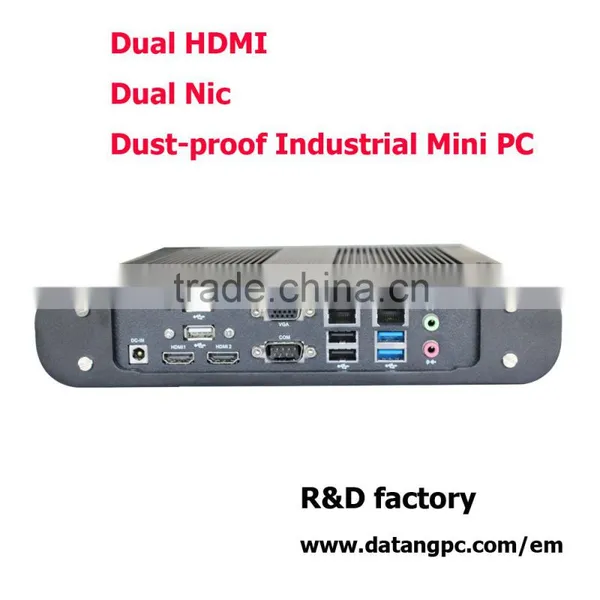

Pictures (Dust-proof, aluminum enclosure)
Packing Information
8PCS computers in one carton of 600x300x510mm, weighing 26kg.
