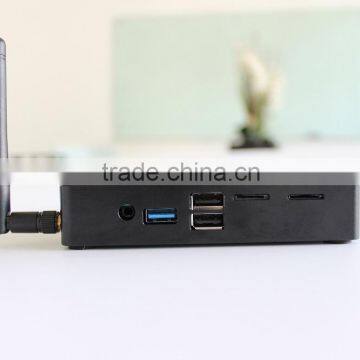

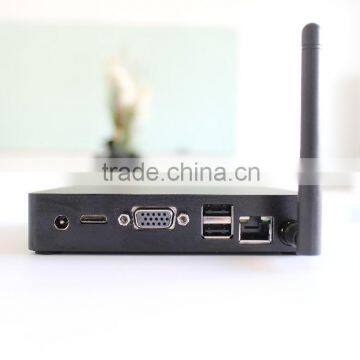

2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50

2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 thumbnail-1
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 thumbnail-2
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 thumbnail-3
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 thumbnail-4
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 thumbnail-5
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 thumbnail-6
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 photo-1
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 photo-2
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 photo-3
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 photo-4
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 photo-5
2016 New Arraival Bay Trail Celeron Based Fanless Box PC NUC PC With SIM and TF Card Slot 4USB HDMI Home Theater DBYT50 photo-6
US$ 123 - 135 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Industrial Computer Accessories
Brand Name:
Maxtang
Contact Supplier Request Quote Chat Now
Shenzhen Maxtang Computer Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Industrial Computer Accessories
Brand Name Maxtang
Model Number DBYT-50
Place of Origin Guangdong, China
Product Description


Description

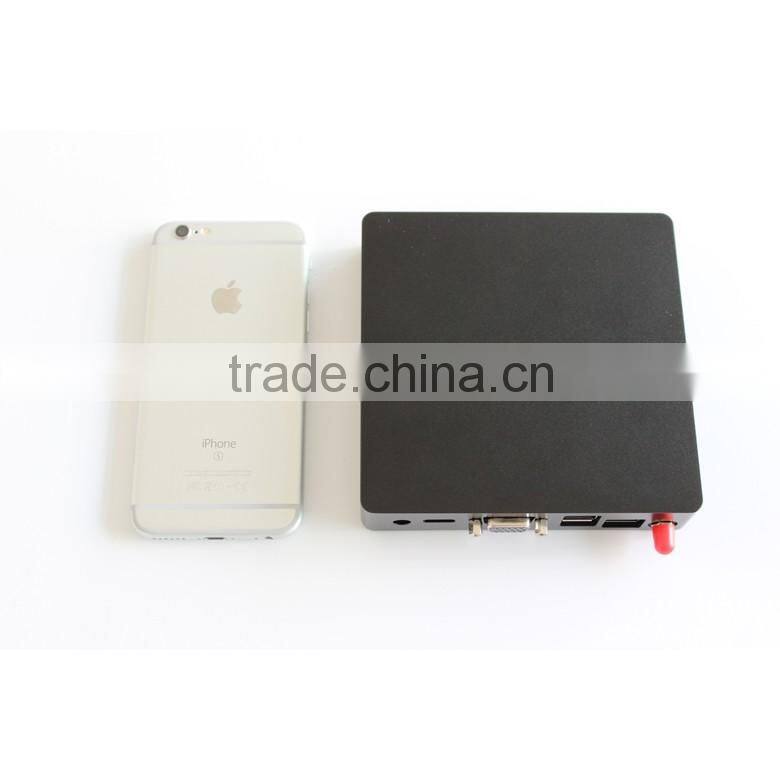

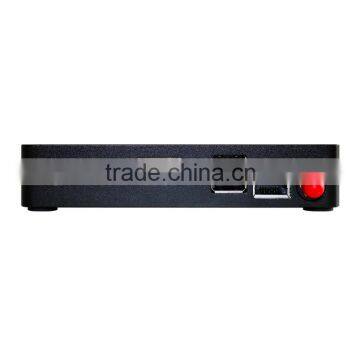

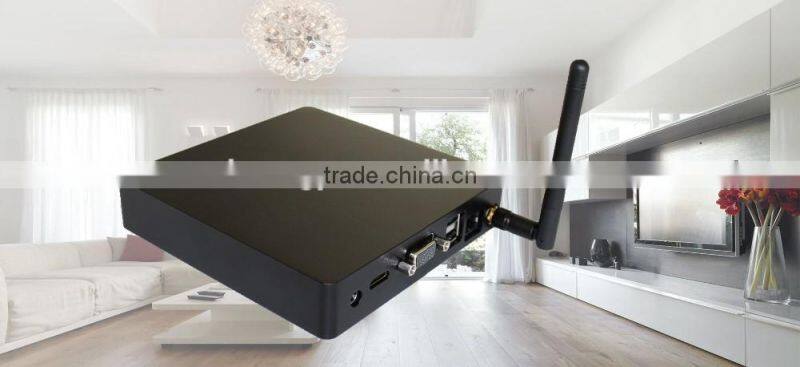

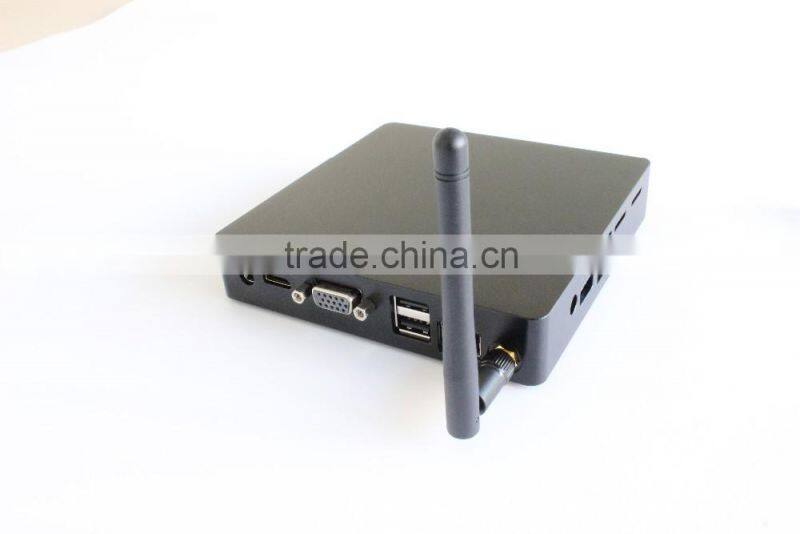

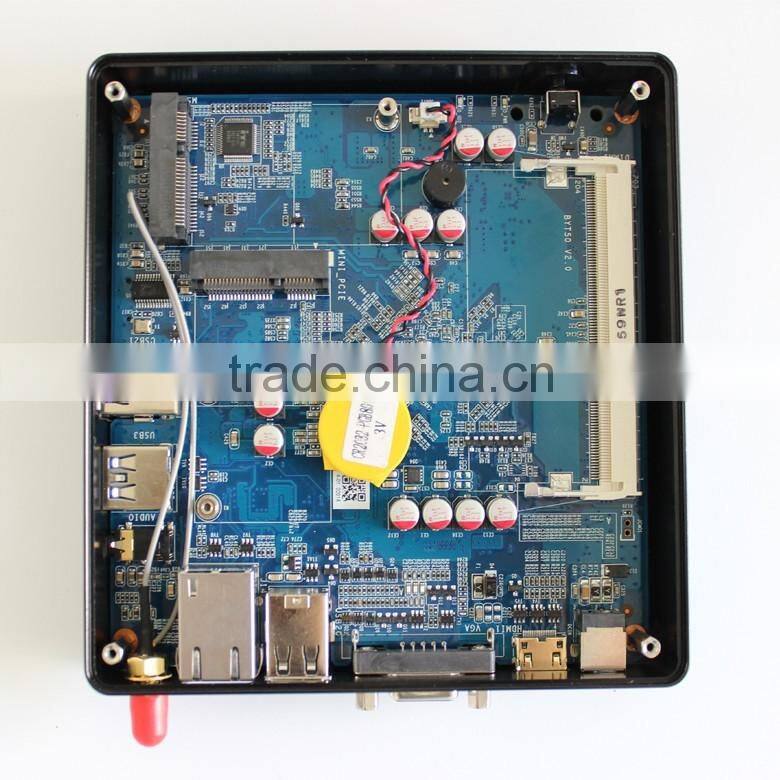

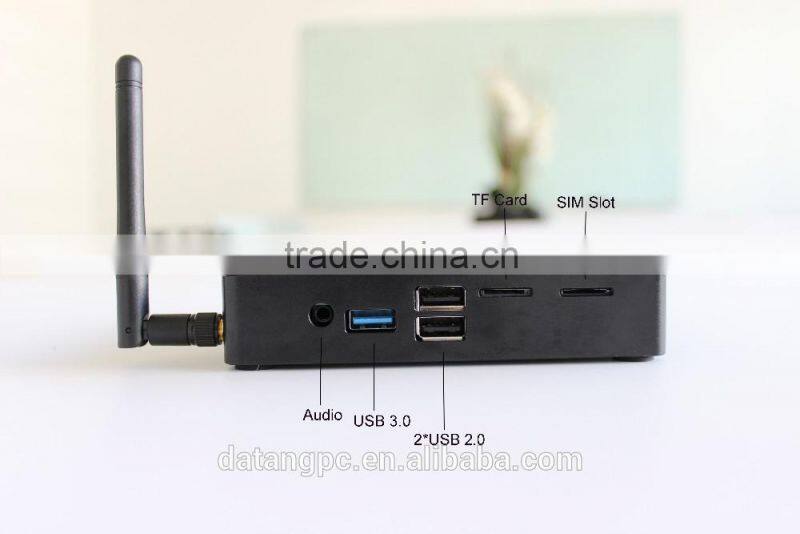

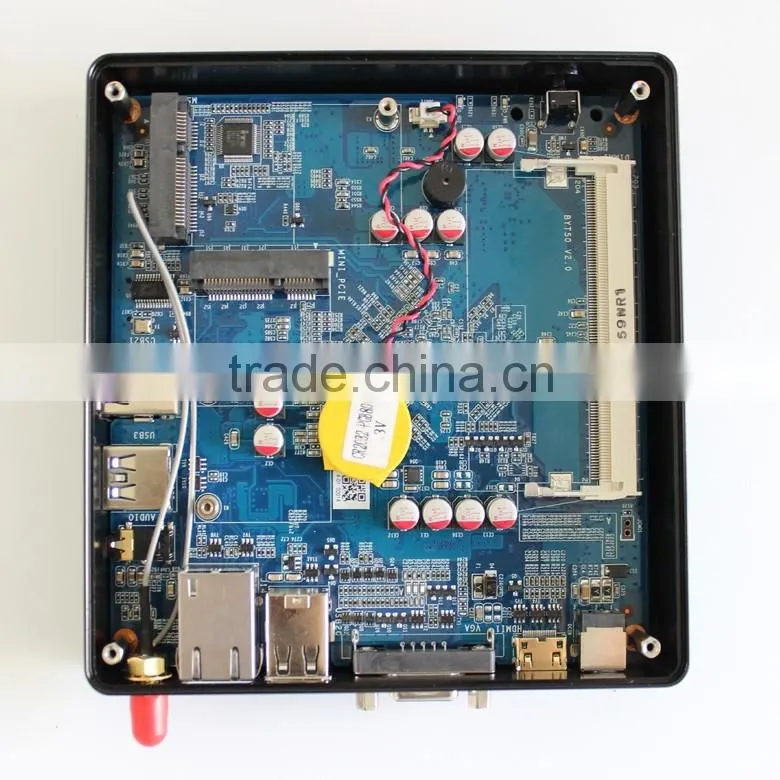

The DBYT-50 box pc is like INTEL NUC  PC, a small form factor embedded fanless system. Built with the Intel® Bay Trail platform, it supports Intel® quad core Celeron™ J1900 and dual core Celeron™ N2808. With low power consumption, it is designed to be fanless. This system carries one DDR3L 1333 SODIMM slot with a total maximum capacity of 8GB to add higher bandwidth and lower latencies for processes.Namely, this computer also features one SIM card slot and one TF card slot, which makes it a good choice for data transportation applications.

Features:

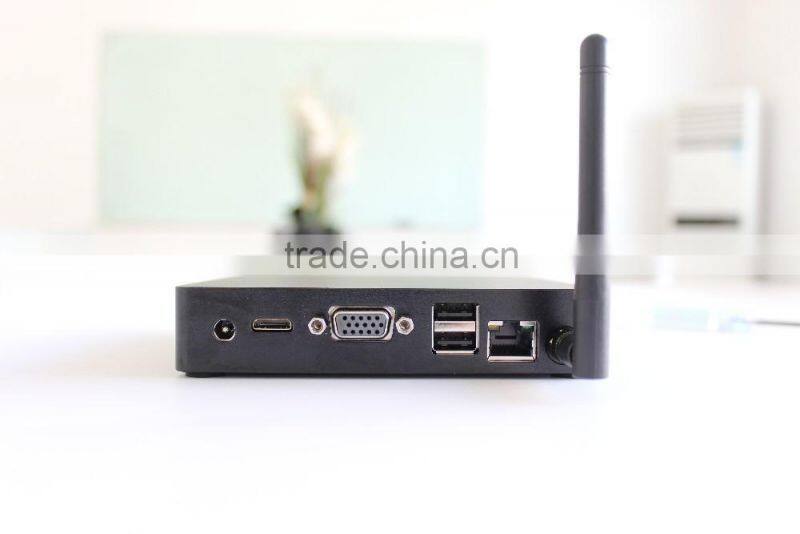

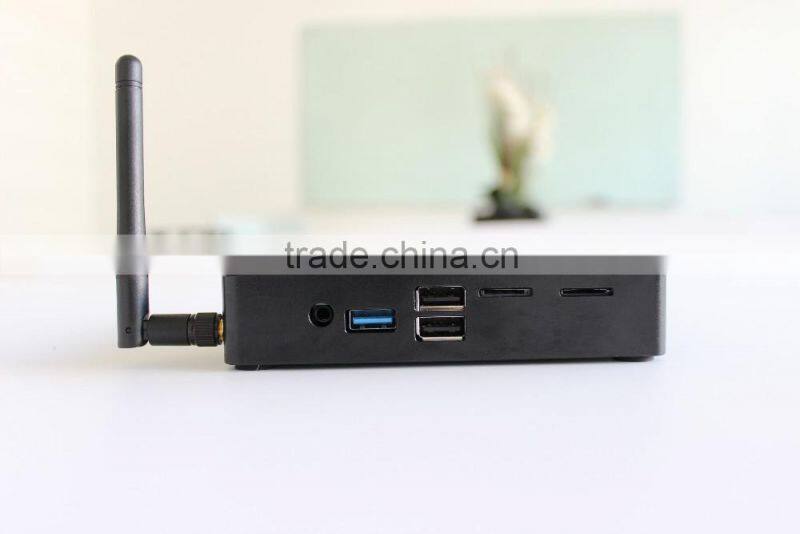

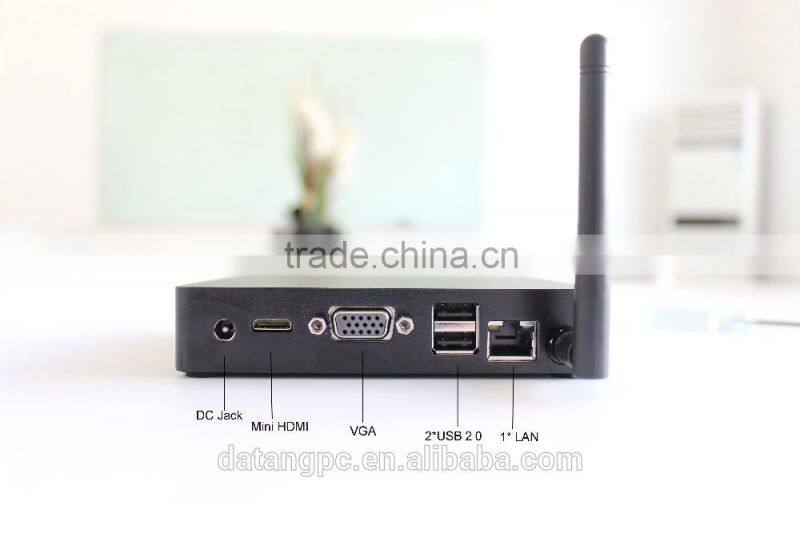

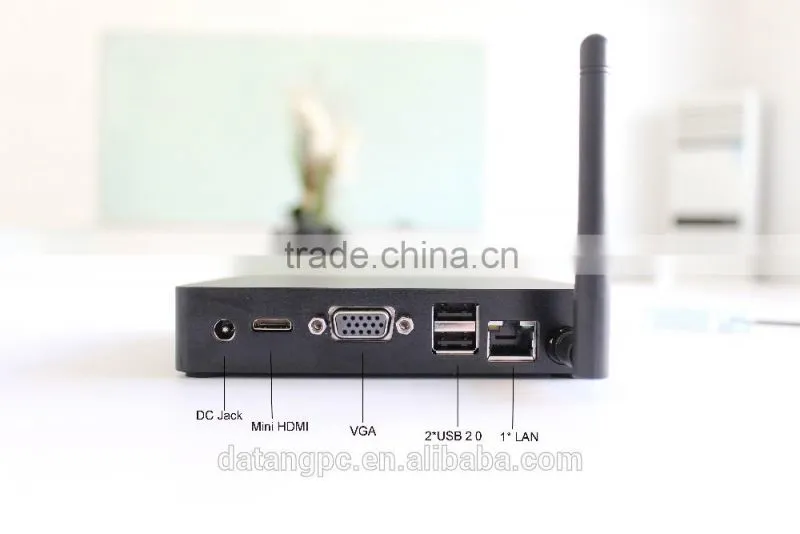

This embedded system also supports dual independent display via mini HDMI and VGA interfaces. It has rich interfaces as 4 USB2.0, 1 USB3.0, 1 Audio(Mic in and Line out in one), 1 LAN, 1 mini HDMI and 1 VGA, catering to most requirements  in the market. This Bay Trail Celeron based fanless system is designed for various application as, but not limited to, office  automation, smart phone, network security, communicationand transportation etc.


CPU
Celeron J1900 (2.00GHz, burst frequency 2.42GHz, quad-core,TDP 10W)

Celeron N2808(1.58GHz, burst frequency 2.25GHz, dual-core, TDP 4.5W)
GPU
Intel ® HD Graphics
System Memory
1 x SO-DIMM slot supports DDR3L up to 8GB RAM
Ethernet
RTL8111F, 10Mbps/100Mbps/1000Mbps, 1 x LAN
Storage
1*mSATA
Expansion
1*mini PCIe                  1*SIM slot                  1*TF slot
Power Supply
1*DC_IN 12V
Display Interface
1*VGA; 1* mini HDMI
USB
4*USB2.0,1*USB3.0
Audio
ALC662 chip, 1*Audio( Mic in and Line out in one)
Wake on LAN
Yes
Enclosure Material
Aluminum
OS(Operating System)
Windows XP/Windows 7(32 bit/ 64 bit)/Windows 8(32 bit/ 64 bit)
Color
Black
Operating Temp.
-20℃~65℃
Dimension
127mm x127mm x 25mm
Weight
380g
Our Company

Founded in 2002, Shenzhen Maxtang Computer Company Limited (hereafter referred as Maxtang) is a pioneer immersed into low power consumption mini computer barebone and mini-itx motherboard designing, researching and manufacturing. Equipped with dozens of experienced engineers in R&D department, Maxtang works closely with its customers to provide them a quicker time-to-market and best operating experience.

With its close cooperation with Giants like Intel, AMD, Nvidia and VIA, Maxtang has its own production lines and has launched an extensive portfolio ranging from mini itx motherboards, mini computers and industrial computers under its own brand Maxtang. Its products are widely used in applications like home, office, school system, data communication, hotel, KTV, AIO, digital signage, banking, medical POS and so on.

Years of exprerience of making mini pc and mini itx motherboard enables Maxtang be quick to market requiremnets, and be flexible in designing and manufacturing.

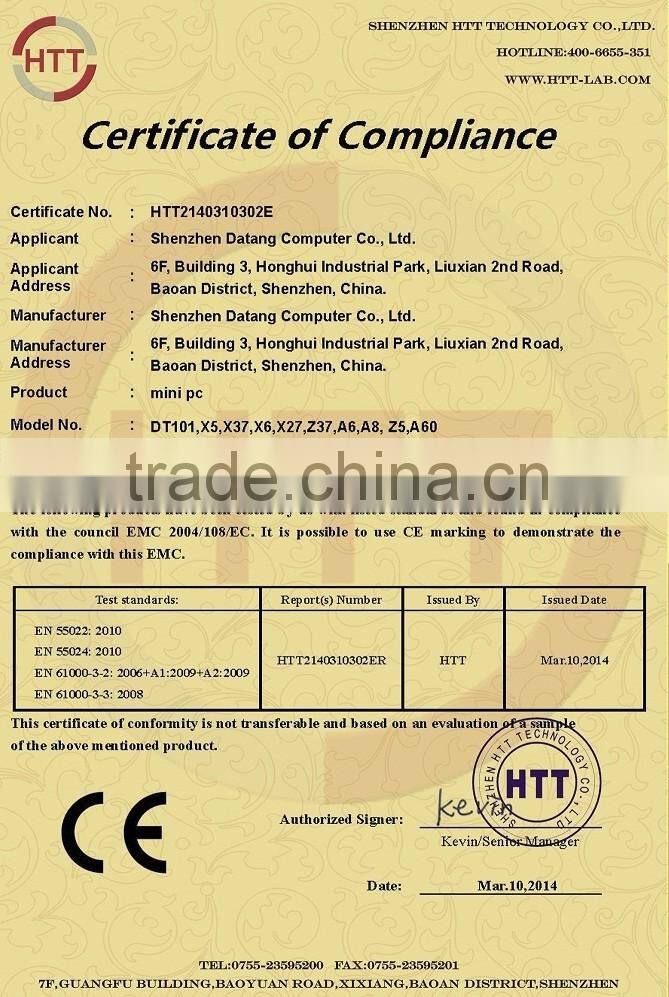

Certifications

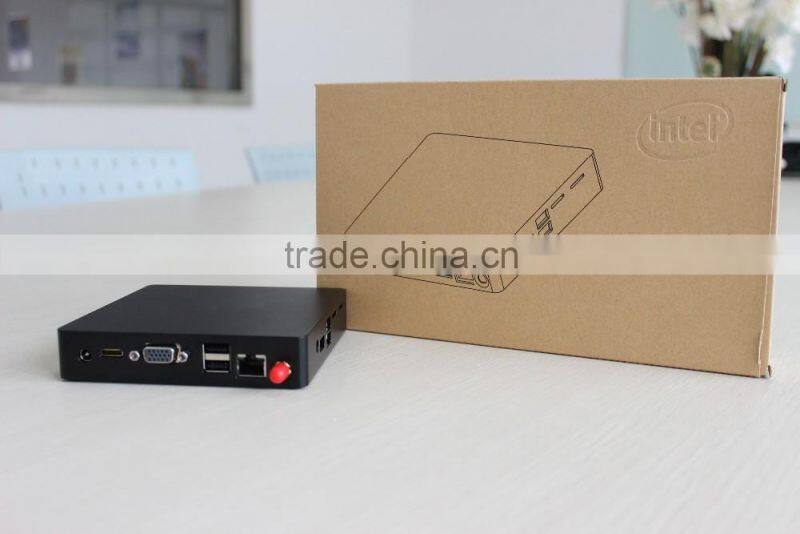

Packing & Delivery

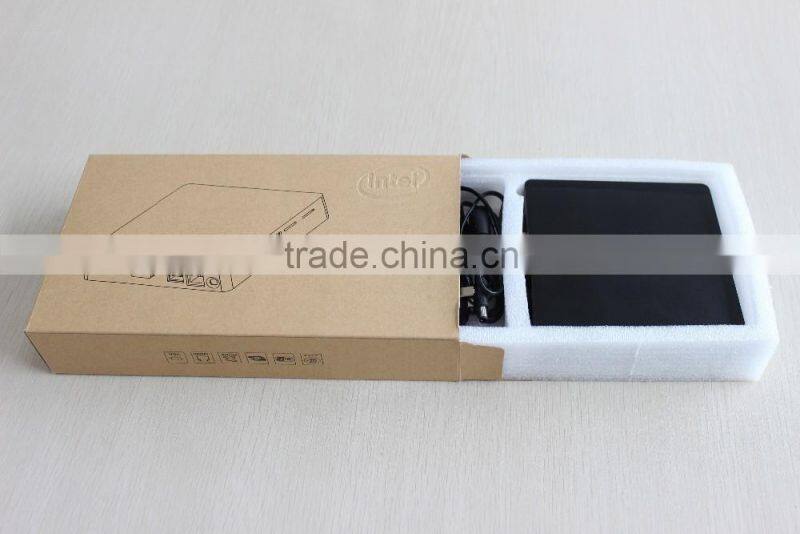

Packing

12pcs mini pc barebone package in one carton. Each mini pc barebone and its accessories(adapter, HDMI cable are included) are packed in different boxes.

Delivery

We are in corpration with logistics shipped by DHL, UPS, FEDEX, TNT etc.

FAQ

Q1: Can I put our logo(name) on your product?

A: Of course, we support OEM service.

Q2: How much do I need to pay for your OEM service?

A: Extra cost for special OEM is $500, but this would be FOC if your order reach 500 pcs each batch.

Q3:What payment/trade terms do you accept?

A: under FOB shenzhen or HK, usually payment against delivery, or paypal, bigger quantity shall follow official quotation/agreements.

Q4: What is the minimum order quantity?(MOQ)

A: We can sell one piece sample for your test.

Q5: What is the price base?

A: Our price is based on detailed specification such as RAM, HD/SSD, WIFI card, etc. The price range on Alibaba basically covers all specification, so pls contact us first with your detailed specification before your order release.
