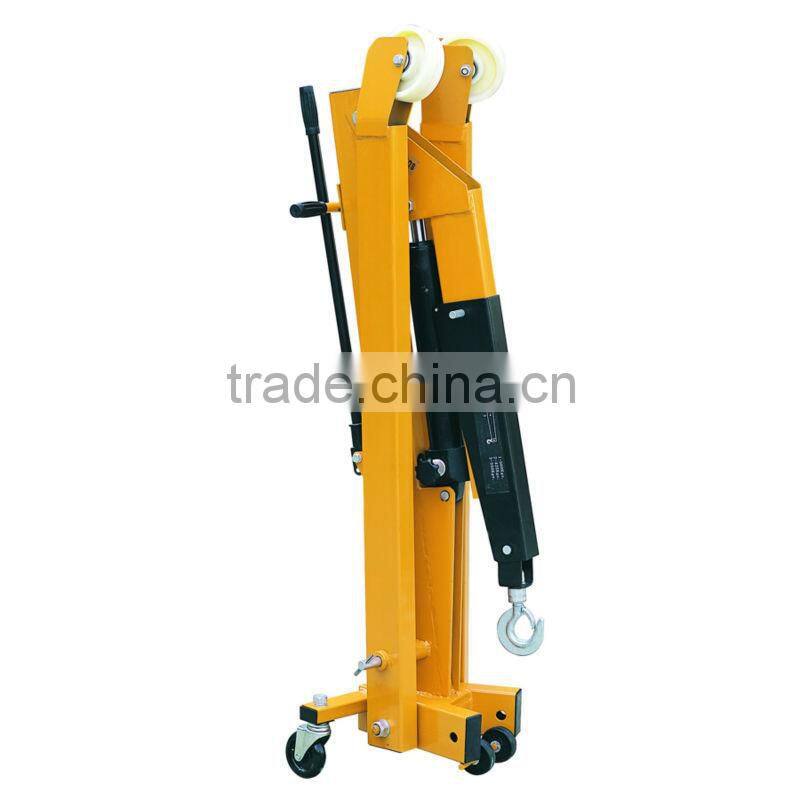

Heavy Duty Type Hydraulic Foldable Shop Crane
                            US$ 150 - 400
                                                            / Piece


                                                4 Pieces(Min. Order)

                    - Shanghai
 - T/T

You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | NU-LIFT | |
| Model Number | SC500A, SC1000A, SC2000A | After-sales Service Provided | Overseas third-party support available |
Product Description
Larger capacity than normal shop cranes at 3 position.
Chrome plated lifting piston and pump piston.
Relief valve to prevent overload.
360º swivel operating handle.
Forged heavy duty swivel hook.
125% overload testing before delivery.
Unique technology of quick lifting by double action pump is as optional.
Back wheel brake is as optional.

| Model | Capacity at position (kg) | Dimensions (mm) | Overall Width (mm) | Net Weight (kg) | ||||||||||
| P1 | P2 | P3 | A | B | C | D | E | F | G | H | I | |||
| SC500A | 500 | 425 | 350 | 1410 | 165 | 1510 | 895 | 102 | 2120 | 1960 | 150 | 340 | 970 | 75 |
| SC1000A | 1000 | 800 | 700 | 1675 | 90 | 1630 | 1230 | 150 | 2445 | 2330 | 245 | 1120 | 115 | |
| SC2000A | 2000 | 1700 | 1500 | 1690 | 205 | 1900 | 1290 | 150 | 2705 | 2505 | 230 | 1165 | 165 | |
