Help CenterHumidity Temperature Transmitter
Related Products
Specifications

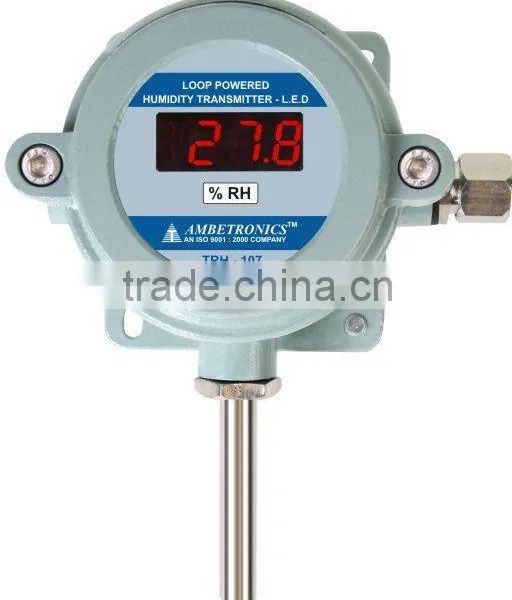

humidity temperature transmitterHighly Accurate, Fast & Reliable Sensing Technology
humidity temperature transmitter
FEATURES:
- Highly Accurate, Fast & Reliable Sensing Technology
- User Friendly, Simple To Operate & Easy to Install
- Power On Startup Through Intelligent Electronics, Self Driven Menu
- Easy-to-read Display, Fast Response
- Easy Programming With Password Protection
- No Calibration Required
- Loop Test, Assures Proper Operation Of The Transmitter
- Industrial Standard 4 - 20mA O/P With Respect To Full scale of humidity
- Built-In Reverse Polarity Protection
- Reduced Operating, Maintenance & Installation Cost
- Excellent Long-term Stability
APPLICATIONS:
- Storage, warehouse & cold storage
- Building management / HVAC Systems
- Energy Management & Energy Saving Systems
- Clean Room Monitoring & Validation,
- In Pharmaceutical, Laboratories, Bioscience
- Climate Test Chambers
- Computer Server Rooms
- Green Houses, Agriculture Farms
- Meteorological, Weather Forecast Applications
- Healthcare, Hospitals, Shopping Malls
- Climate Control in Museums, Libraries
TECHNICAL SPECIFICATIONS: | ||
Measuring Parameter |
Humidity (% RH) |
|
Range |
0 To 100 % RH |
|
Resolution |
0.1 % RH |
|
Accuracy |
± 1.8 % of full scale value |
|
Sensor type |
Capacitive polymer sensing for high Accuracy |
|
Sensor Probe Details |
Please specify while inquiring |
|
Loop Output |
Industrial Standard, 4 - 20 mA with permissible load 750 ohms at 24 VDC, 25 mA |
|
Display |
0.5, 3½ digit L.C.D Display / 0.4, 4 Digit L.E.D Display |
|
Set Point |
Two independent set points, AL1 & AL2 with blinking indication & Programmable Latch / Non-Latch facility;only for indication purpose (There is no relay output) |
|
Setting |
Setting by 4 keys on front panel i.e. 'SET / NEXT', 'UP', 'DOWN' & 'TEST / BACK' |
|
Monitoring Sensor Open Indication |
i) By Display : Shows 'oPn' ii) By Loop current :Up scale current : 22 mA, Down scale current :3.6 mA To 3.8 mA; programmable by user |
|
Supply Voltage |
14 To 36 VDC, normally 24 VDC, 25 mA |
|
Operating Temperature |
- 40 To 85° C |
|
Relative Humidity |
Below 95% non condensing |
|
Enclosure Details |
Weatherproof (WP) |
Flameproof (FLP)
|
Protection Class |
IP-65 |
IP-65,CMRI Approved for IIA & IIB Gas Group |
Cabinet Material |
Polycarbonate, gray colour |
Cast Aluminium alloy, LM-6 / C.I. Enclosure |
Cable Entry |
1 No, Thermoplastic cable gland (IP 68) |
1 No, Double compression cable gland (Ex-Proof), ¾ET-type |
Dimension |
120 mm (H) X 80 mm (W) X 55 mm (D) in mm |
145 mm (H) X 185 mm (W) X 100 mm (D) in mm |
Mounting |
Wall Mounting / Stand Mounting |
Wall Mounting / Stand Mounting |
Weight |
250 Grams |
1Kg |
Sensor Housing |
P.V.C. / SS316, Please specify while ordering |
|
Send Inquiry to This Supplier
