[ GSM Car OBD GPS Tracking solution ]

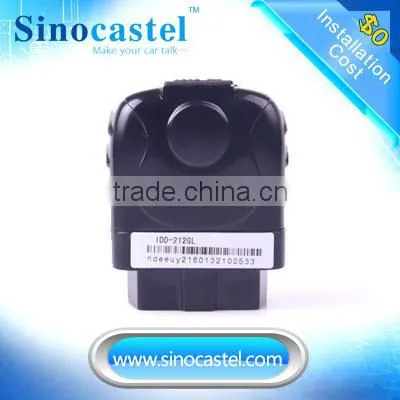

IDD-212GL has been the best selling OBD GPS Trackers on market, with quad-band, 3-axis accelerometer integrated, Just need to plug and play, our OBD GPS Tracker will read the engine parameters and Error code from car ECU and GPS information real-timely, then send all data to the backend server (web/ IOS/ Android APP) for remote diagnostic and tracking purpose.
---------------------------------------------------------- Features ----------------------------------------------------------
- Mini sized OBD GPS Tracker, Plug-and-play,
- OBD Tracking Mode for 9-36V vehicles of OBDII, J1939 J1708 protocols, for both cars and heavy duty trucks.
- GPS Tracking mode for any non-standard vehicles through ACC power cable.
- history trace playback
- Trip Fuel consumptions monitoring
- DTCs monitoring
- Car parameters reading including RPM, speed, ECT, MAF, TP etc through OBD module
- Driving behavior alarm for the hard acceleration, hard deceleration, idle engine, speeding etc
- Emission and CO2 monitor
- Low voltage monitoring
--------------------------------------------------------- Parameters ---------------------------------------------------------
| Mechanical | Size | 63mm (L) x 50mm (W) x 28mm (H) | |
| Weight | 50g | ||
| Data transmission | GPRS/SMS | ||
| Storage | 2MB FLASH,up to 24,000 GPS data storage | ||
| OBD protocol | SAE J1850 PWM | ||
| SAE J1850 VPW | |||
| ISO 9141-2 | |||
| ISO 14230-4 | |||
| ISO 15765-4 | |||
| SAE J1587/J1708/SAE J1939 | |||
| Working Voltage | 9-36VDC | ||
| Backup battery | 3.7V/120mAH | ||
| GPS | Channels: 50 | ||
| Sensitivity: -160dBm | |||
| Accuracy: 5m CEP | |||
| Time to first fix: | |||
| Cold start: <32s (typ.) | |||
| Hot start: <1s (typ.) | |||
| GSM | Frequency: 850/900/1800/1900MHz | ||
| Network protocol: Embedded TCP/IP stack | |||
| Sensitivity: -107dBm@850/900MHz | |||
| -106dBm@1800/1900MHz | |||
| Output power: Class 4 (2W)@850/900MHz | |||
| Class 1 (1W)@1800/1900MHz | |||
| 3 axis Accelerometer | +/-2g, +/-4g, +/-8g, +/-16g, driving behavior detection | ||
| Antenna | GSM | Internal | |
| GPS | External | ||

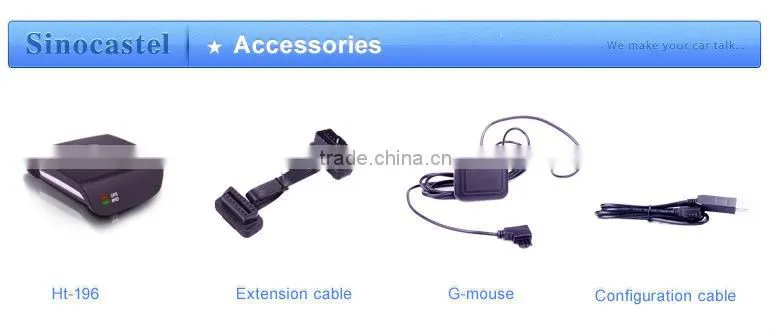

| Accessories | G-Mouse | ||
| Driving behavior monitor | |||
| Configuration cable | |||
| OBD II extension cable | |||
| Wiring harness for heavy duty | |||
| Certification | FCC/CE/E-mark | ||
