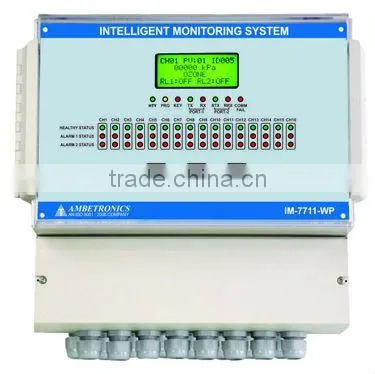

IntelliMaster is a 16/32 Channel Modbus ID Monitoring System for Transmitters are having RS-485 Modbus RTU Network ConnectiviyFeatures
• IntelliMaster is a 16/32 Channel Modbus ID Monitoring System for Transmitters are having RS-
485 Modbus RTU Network Connectivity.
• IntelliMaster has one more RS - 485 Modbus RTU Port for Remote Repeater Panel called as
IntelliRepeaterwhich will repeat all readings & Alarm conditions.
• Multidrop RS - 485 Port eliminates separate cabling to each Transmitter and Monitor Panel.
• Modbus - RTU Network can be connected in Ring Topology for Redendency.
• Scan time for 16 Transmitter < 5 sec. & for 32 Transmitter < 10 sec.
• Large 16 x 4 line Display with Configurable Backlit Option.
• Auto Page Changing Facility available for easy viewing of Data, Relay & Fault Condition of each
Transmitter.
• Optional 8 Relays (SPDT) rated “10A / 250VAC, 10A / 30VDC” as Warning / Trip Relay with 1 no.
Failsafe Relay which activates for UNDER / OVER / OPEN Condition of Transmitter.
• Separate Alarm Setting for each Transmitter with Logic High / Low & Latching Facility.
• Password Protected Menu with Password Changing Facility.
• Easy Handling & Programming with 3 keys on Front Panel.
Applications
• Clean Room Monitoring & Validation in Pharmaceutical, Laboratories, Bioscience
• Room Mapping in Pharmaceutical
• Pharmaceutical process validation with graph & scale report in Autoclave
• Healthcare, Hospitals, Shopping Malls
• Breweries, Steel Plants, Gas Turbines,
• Leak detection, Solvent Vapors,
• Personal Monitoring, Compressor Stations,
• Emergency response, Equipment Maintenance
• Pulp & Paper Industry, Fuel Loading Facilities
• Waste Water Treatment Plants,
• LNG / LPG Processing & Storage Facilities
• Refineries & Petrochemical Plants Including Offshore
• Drilling & Plant Shut-downs
• ISO Certification Records, Validation process certifying,
• Chemical & Hazardous area where data monitoring is essential
• Food Processing
• Cold Storage & Chilling Plant
• Building Management & Energy Saving Systems
• Meteorological, Weather Forecast Applications
• Remote Indication location on tank taps as used in liquid level sensing & control
Sr. Group Channel in Relay Asigned
No. Number the group
1 1 1 to 4 Relay 1 (Warning Relay) is assigned for Al1 only.
Relay 2 (Trip Relay / Communication fail Relay) is assigned for Al2 only.
2 2 5 to 8 Relay 3 (Warning Relay) is assigned for Al1 only.
Relay 4 (Trip Relay / Communication fail Relay) is assigned for Al2 only.
3 3 9 to 12 Relay 5 (Warning Relay) is assigned for Al1 only.
Relay 6 (Trip Relay / Communication fail Relay) is assigned for Al2 only.
4 4 13 to 16 Relay 7 (Warning Relay) is assigned for Al1 only.
Relay 8 (Trip Relay / Communication fail Relay) is assigned for Al2 only.
Sr. Group Channel in Relay Asigned
No. Number the group
1 1 1 to 8 Relay 1 (Warning Relay) is assigned for Al1 only.
Relay 2 (Trip Relay / Communication fail Relay) is assigned for Al2 only.
2 2 9 to 17 Relay 3 (Warning Relay) is assigned for Al1 only.
Relay 4 (Trip Relay / Communication fail Relay) is assigned for Al2 only.
3 3 18 to 25 Relay 5 (Warning Relay) is assigned for Al1 only.
Relay 6 (Trip Relay / Communication fail Relay) is assigned for Al2 only.
4 4 23 to 32 Relay 7 (Warning Relay) is assigned for Al1 only.
Relay 8 (Trip Relay / Communication fail Relay) is assigned for Al2 only.
General
Input : 16/32 Transmitters having RS-485 Modbus RTU Port.
Display : 16 x 4 Alphanumeric LCD with Configurable Backlit option.
8 LEDs to indicate status of IntelliMaster.
48 LEDs to indicate Alarm status of Transmitters in Group Function.
Control Action : i) 2 independent Alarm set points for each Transmitter with Latch & Non-Latch
Facility.
ii) User selectable Hysteresis & Logic Operation.
Setting : By using 3 keys on the front panel for WP & FLP models.
Performance
Scan Time : Less than 5 Sec. for 16 Transmitters having RS-485 Modbus RTU Port.
Less than 10 Sec. for 32 Transmitters having RS-485 Modbus RTU Port
Electrical
Supply Voltage : 190 to 270 VAC; 20%, 50Hz.
Power Rating : Approx 20W.
Transmitter : 24VDC, 4A for 16 Transmitters.
Supply 24VDC, 7A for 32 Transmitters.
Cable : 1.5mm2 2 Core Shielded Cable for 24 VDC Power Supply.
1.0mm2 2 Core Twisted Pair Cable for RS-485 Modbus RTU Communication.
Environmental
Storage Temp. : -20 to 60oc
Operating Temp. : -30 to 70oc
Humidity : Below 95% Non-Condensing
Weatherproof Housing
Protection Class : IP-65
Cabinet Material : Polycarbonate, Grey Colour.
Cable Entry : Thermoplastic (IP-68) for Weatherproof
Dimension : 305 mm (H) x 325 mm (W) x 170 mm (D)
Mounting : Wall Mounting / Stand Mounting
Weight : Approx 3.7 kg.
Output Signal (Optional)
Relay Output : 9 SPDT Relays of rating “10A/250VAC, 10A/30VDC”.
4 No. Relay for Warning & 4 No. for Trip & 1 no. for Failsafe Operation for UNDER /
OVER / OPEN condition of Transmitter.
Open Collector : Open Collector output with 100mA current capacity instead O/P of Relay.
RS-485 Port : Separate RS-485Modbus RTU Port for IntelliRepeater or PC Communication at a time
one Function is possible.
Error Monitoring
• During Sensor Break / Open in the Transmitter connected to it, IntelliMaster shows ‘SENSOR OPEN’ &
Failsafe Relay activates.
• During Over Range in the Transmitter connected to it, IntelliMaster shows ‘OVER RANGE’ & Failsafe Relay
activates.
• During Under Range in the Transmitter connected to it, IntelliMaster shows ‘UNDER RANGE’ & Failsafe Relay
activates.
• If communication fail occurs with any Transmitter then IntelliMaster shows ‘SLAVE NOT RESPONDING’ for
that Transmitter.
