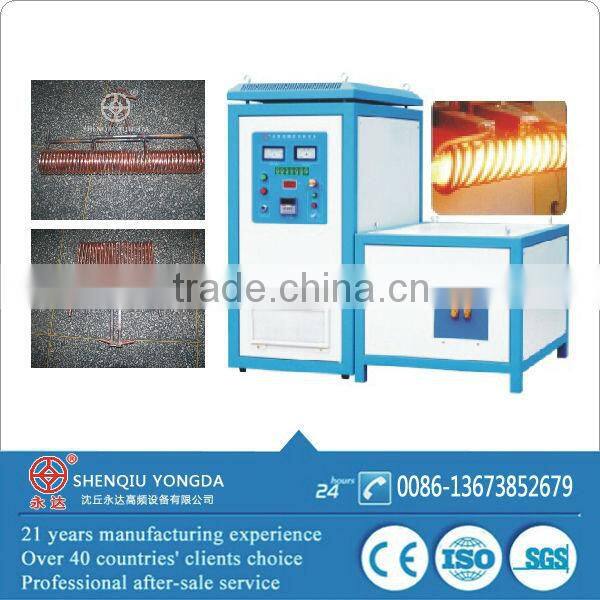

Help CenterPortable Ultrasonic Frequency Induction Heat Treatment Equipment Forging Application
Related Products
-
Portable Safety Induction Charging System Preferred YongdaUS$ 1,900 - 18,000MOQ: 1 Set -
Medium Frequency Induction Cast Iron Melting FurnaceUS$ 1,900 - 18,000MOQ: 1 Set
-
Saving Energy Small Induction Melting Furnace Gold Refining EquipmentUS$ 1,900 - 18,000MOQ: 1 Set
-
Factory Supply Fullly Functional Induction Heating Forging Auto Parts Heat Treatment Electric Furnace for ForgingUS$ 1,900 - 18,000MOQ: 1 Set
-
Intermediate Frequency Induction Melting Furnace For Smelt Waste Iron/ Pig Iron /steelUS$ 1,900 - 18,000MOQ: 1 Set
High-energy mobile induction heating quenching equipment sold
Select the frequency of induction heating equipment:
According to heat treatment and heating depth required, select frequency. The higher the frequency, the more shallow depth of heating.
The depth of the high-frequency (above 10KHZ above) for heating is 0.5-2.5mm, generally used for heating medum-sized or small parts, such as small modulus gear and medum-sized and smalll shaft parts.
Intermediate frequency IF (1-10KHZ) heating a depth of 2-10mm, generally used for large diameter shaft and medium-sized modulus gear heated.
Power Frequency (50HZ) heating the hardened layer depth of 10-20mm, generally used for large size parts diathermy, large diameter parts (diameter 300mm or more, such as rolls, etc.) surface hardening.
Product introduction
Model |
WZP-400 |
Work power |
3 phase 380V+/-10%, 50-60HZ |
Input voltage |
320V-420V can be changed, depend on your country's electric power |
Input current |
6-400A |
Input power |
6-200KW(power adjusted stepless) |
Oscillation frequency |
8-15 KHZ |
Cooling water pressure |
0.3 MPA |
|
Size of generator: Transformer |
820*740*1700mm 1100*590*590mm |
Weight of generator ; transformer |
172kgs; 205kgs |
Water cooling protection point |
Below 50 degree celsius |
family:sans-serif; font-style: normal; font-variant: normal; font-weight: normal; letter-spacing: normal; orphans: auto; text-align: start; text-indent: 0px; text-transform: none; white-space: normal; widows: auto; word-spacing: 0px; -webkit-text-stroke-width: 0px; background-color: rgb(255, 255, 255); font-size: 14px;">10.Temperature is adjustable, by setting heating time and the infrared thermometer, to control heating temperature of work pieces.Thus control heating temperature to a technology points , Can also increase the insulation function.
11.High security, eliminating the nearly million-Volt high voltage
Super audio frequency induction heating equipment WZP Series
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Model |
Input voltage |
Input current |
Input power |
Oscillation frequency |
Cooling water pressure |
WGH-IV-16 |
Single phase 220V |
2-35A |
3-16KW |
15-50KHZ |
0.1MPA |
WZP-40 |
320-420V |
2-40A |
3-25KW |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
3-35KW |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
3-50KW |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
3-65KW |
15-30KHZ |
0.3MPA |
Delivery:
1. 7-15 days after payment by sea/air/Express (such as DHL)
2. Reliable long-term freight forwarders are chosen for safety and speed.
After-sales Service:
1. One year warranty;
2. Long-term technical service;
3. Overseas on-site technicians service if required.
Packaging:
1. Packaged in fumigation-free wooden cases with anti-moisture/dust film and
2. anti-shock foam inside and steel belts and rivets outside for fastening.
3. The stand of the case can bear weight twice of that of the machine.
In the form of induction coil
Square steel,pipe
Billet material: Steel 45, 40Cr
Size: 20*20-150*150
Temperature:1100-1200 degree celsius
Heating power:100kw-1000kw
Working frequency:200Hz-8000Hz
Round steel rods
Billet material: Steel 45, 40Cr
Size: diameter 20*20-dia.200mm
Temperature:1100-1200 degree celsius
Heating power:100kw-2000kw
Working frequency:200Hz-8000Hz
Billet material: Steel 45, 40Cr
Billet shape: Rail, forks, rigging and other shaped pieces
Temperature:900-1150 degree celsius
Heating power:100kw-800kw
Working frequency:500Hz-8000Hz
About us
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
Company products:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
Corporate Culture
Quality goal: Zero annual customer complaint rate
Quality policy: Scientific management, pursuing excellence, elaborate and perfect works.
Quality concept: Product quality and the future of Yongda are controlled by us.We will make every efforts let Yongda quality arrive perfection , based on strict and efficient attitude .
Service concept: Customer is in my heart. What users need, what Yongda provides.We will take real actions to solve problems for customers.
Good faith: The people who are honest will possess real friend. The enterprise that is in good faith will make long-term development.
Innovation: Innovation is the driving force for enterprise development. Without innovation there would be no rapid development for enterprises.
Contact information:
Contact: Alice Ann
Mobile :0086 183 3990 6750
Tel : 0086 371 5501 6296
Sincerely welcome customers at home and abroad to visit us and negotiation business !
Address: NO.65,Liufu town economic and technical development,Shenqiu County, Zhoukou,Henan, China
